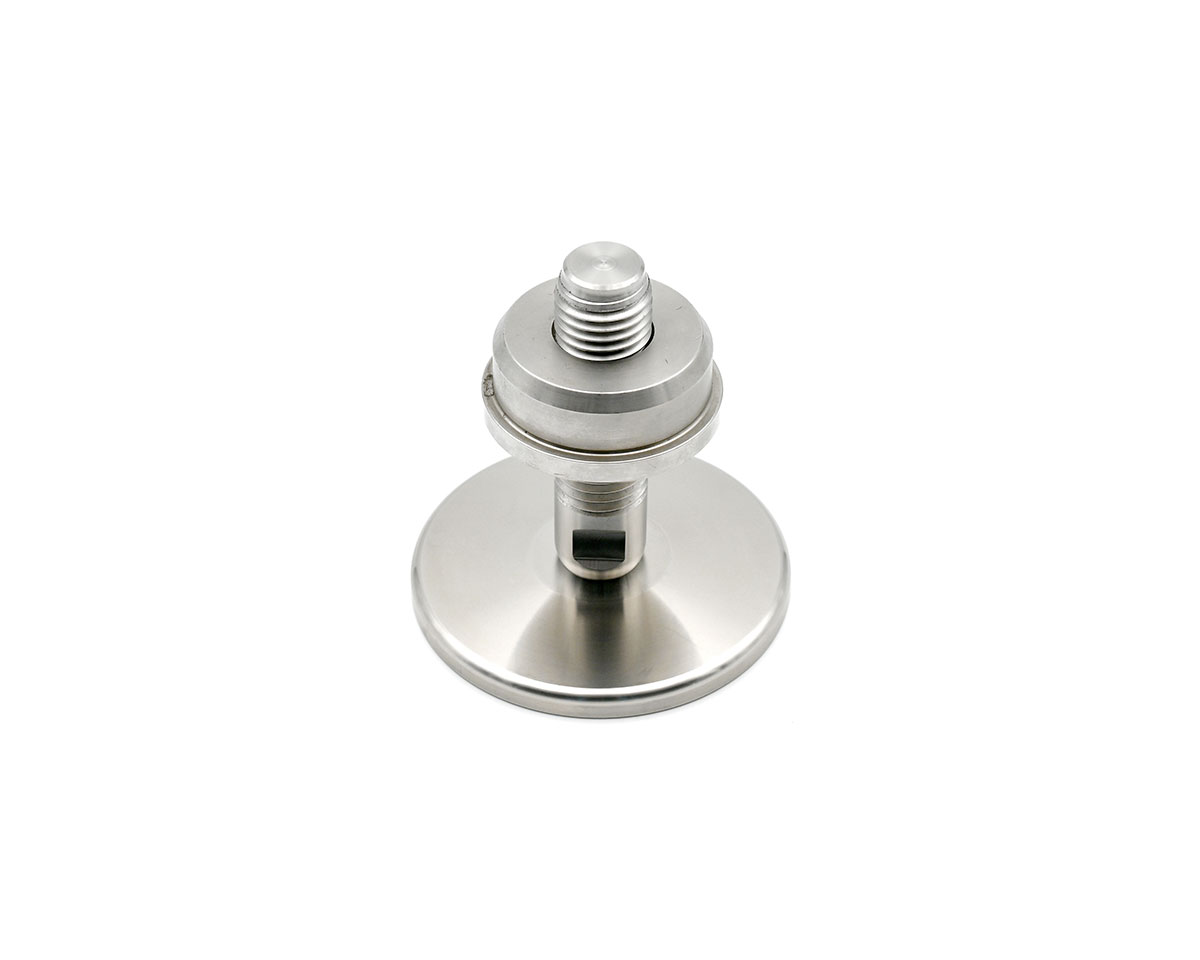

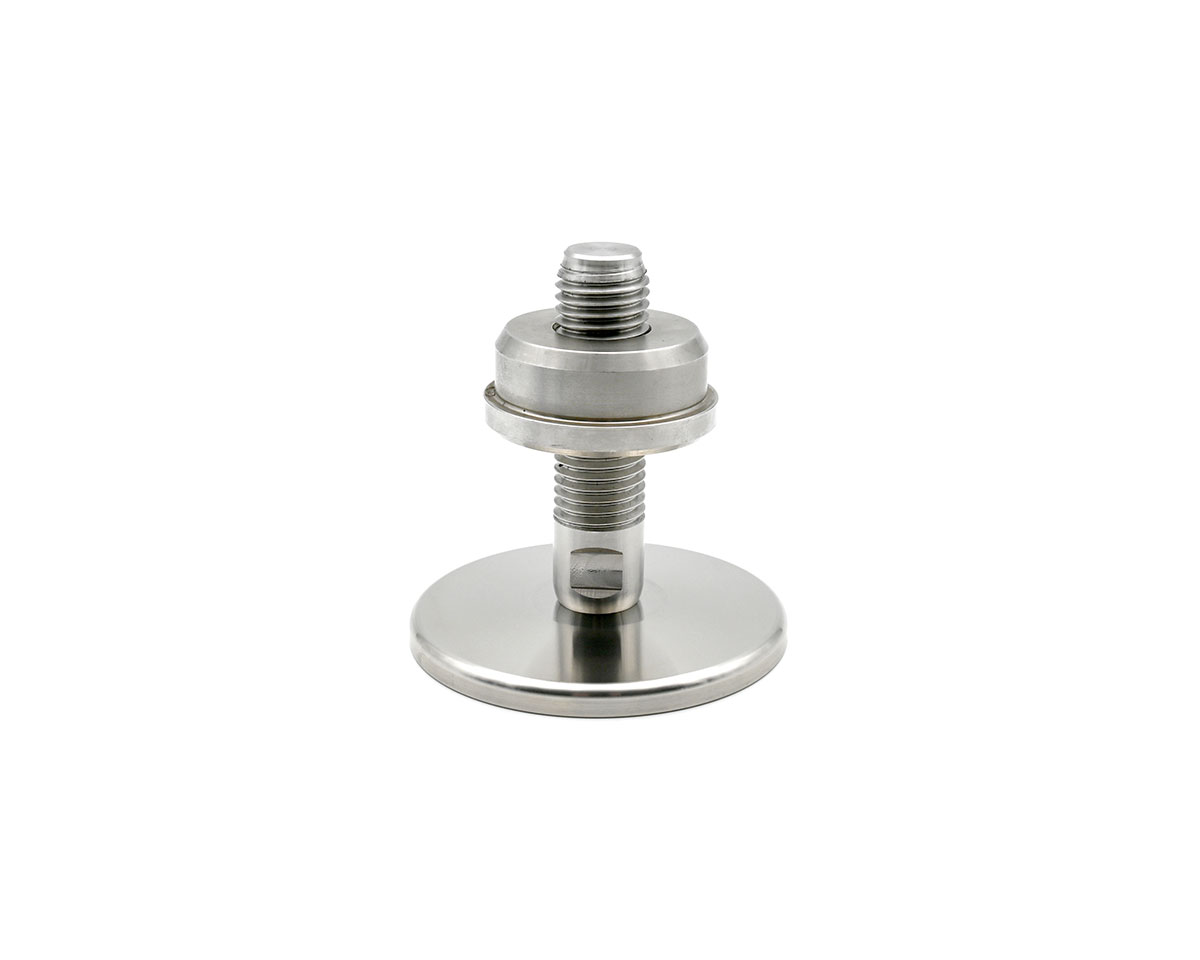

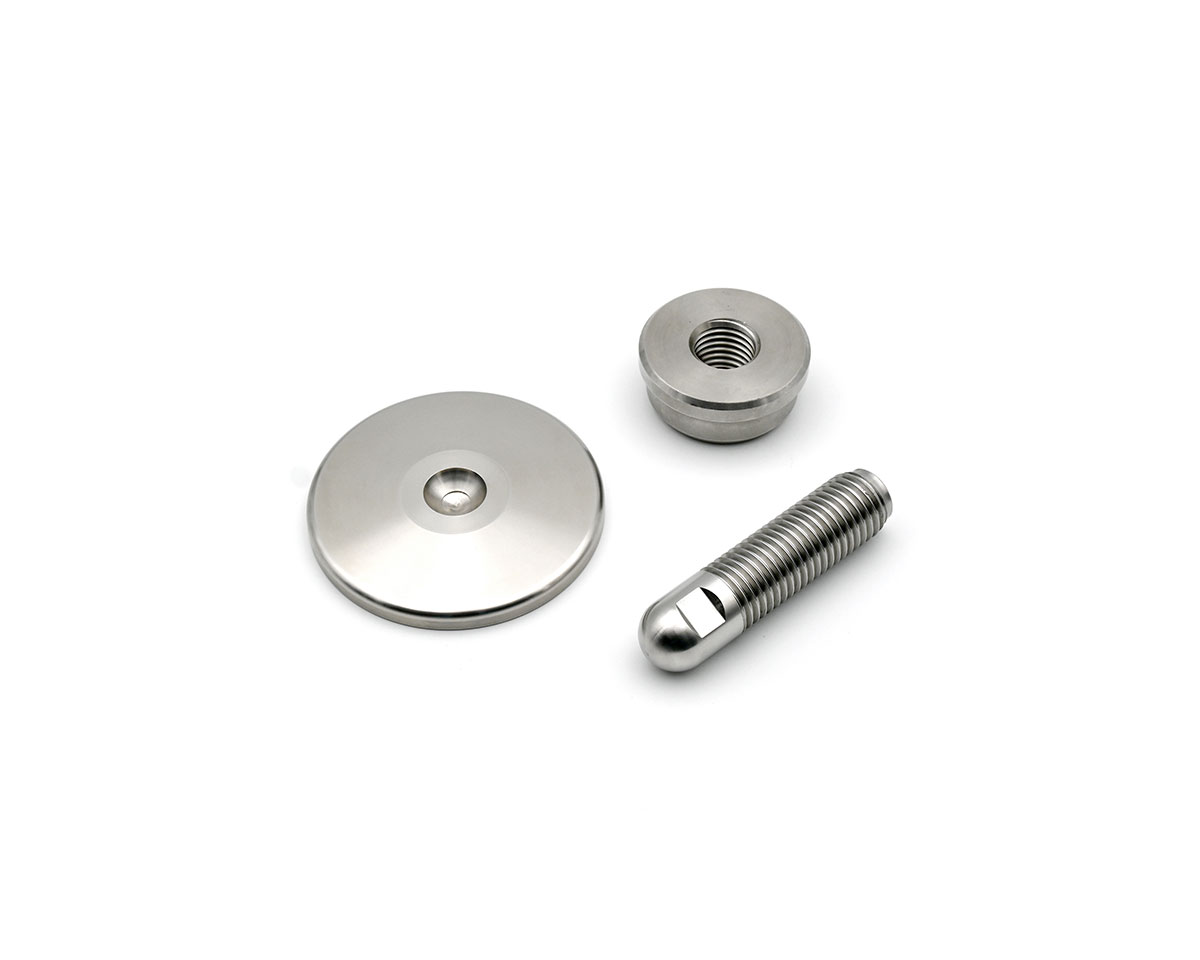

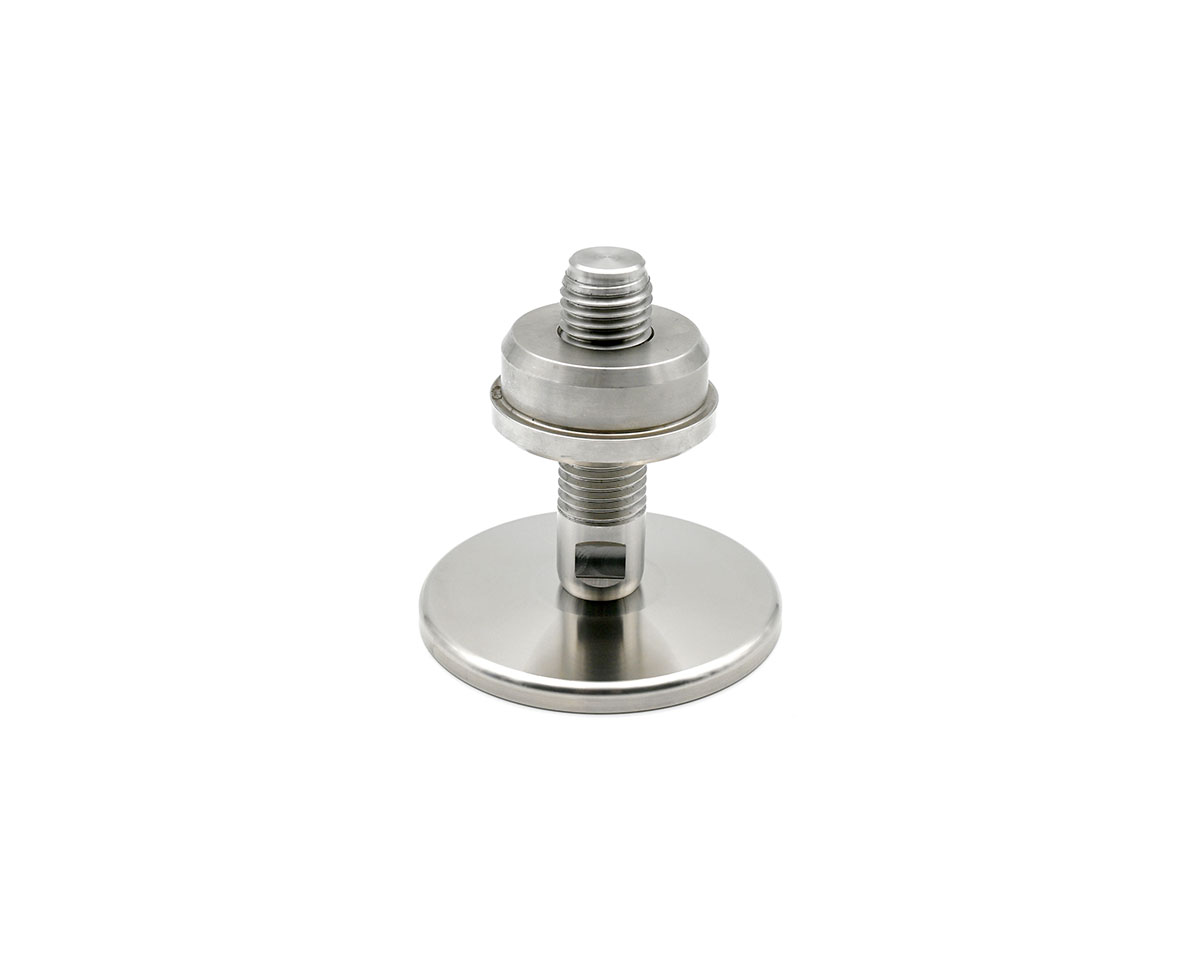

Levelling foot TEKNOTANK, Ø 200 mm Stainless steel, M40 x 150 mm
Discover the TEKNOTANK leveling foot, featuring a robust stainless steel construction, a 200 mm diameter footplate, and a 150 mm adjustable screw for precise alignment and stability under static loads up to 12,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€108.16*
|
| From 5 |
€107.45*
|
| From 15 |
€104.62*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 40 |
| Spindle length (mm): | 150 |
| Balancing angle: | 14° |
| Hygiene: | Yes |

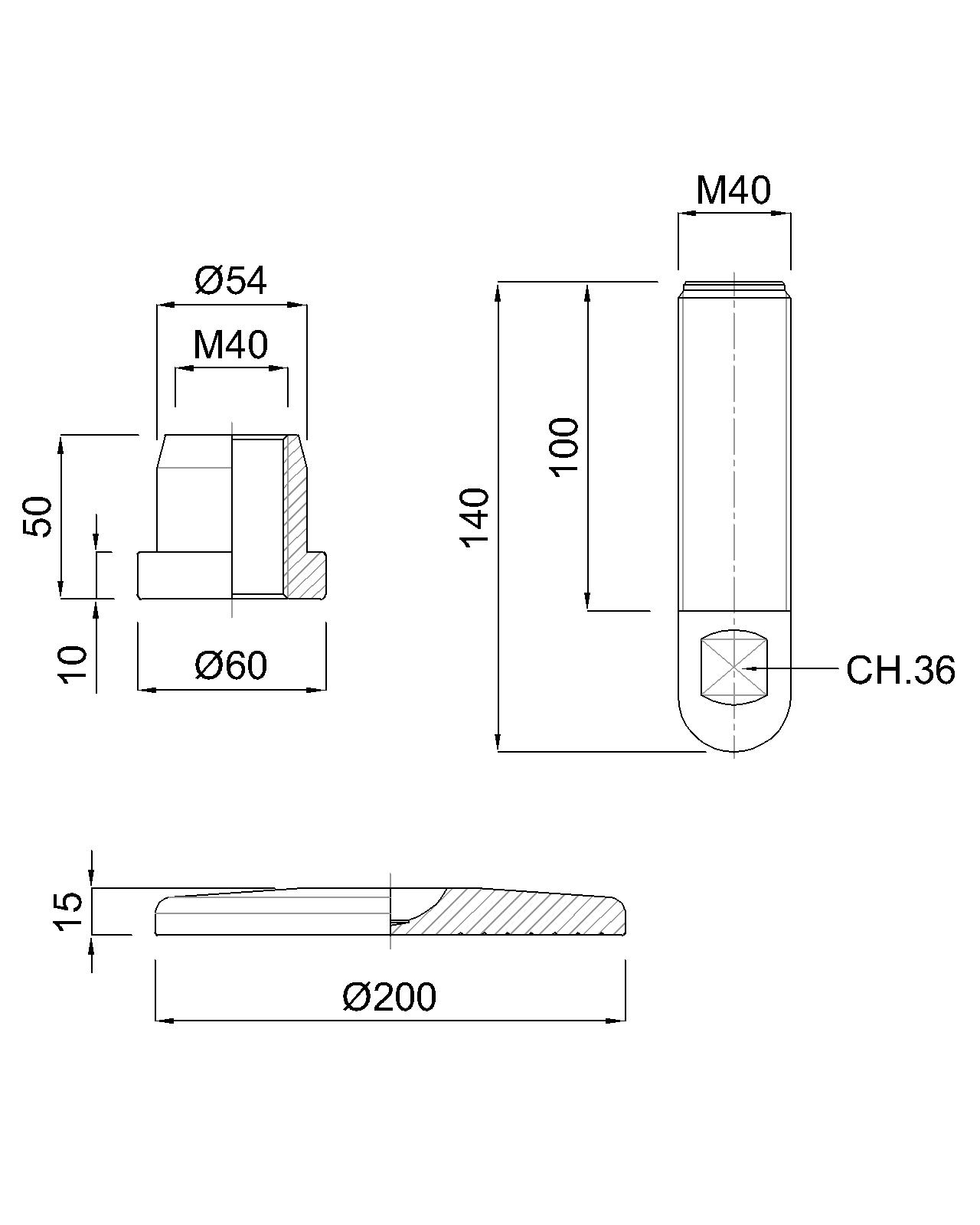

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
