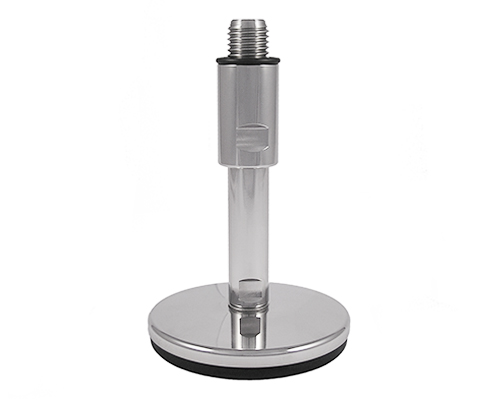

Levelling foot TEKNOCLEAN, Ø 120 mm Stainless steel, M24 x 150 mm, NBR

EAN 4061408012732

Type 45815304

Experience superior stability with the TEKNOCLEAN levelling foot, crafted from stainless steel. Its articulated design and NBR anti-slip feature ensure durability, hygiene, and a static load capacity of up to 40,000 N.

Robust stainless steel construction ensuring durability and resistance to corrosion
Articulated screw design with a 5° adjustment capability for optimal leveling
Large diameter of 120 mm provides superior stability and load distribution
Capable of supporting static loads up to 40,000 N, suitable for heavy machinery
USDA hygiene certification ensures compliance with strict cleanliness standards

Quantity	Price
From 1	€71.67*
From 5	€71.20*
From 15	€69.32*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€71.67* / piece

Our payment methods:

Accessories

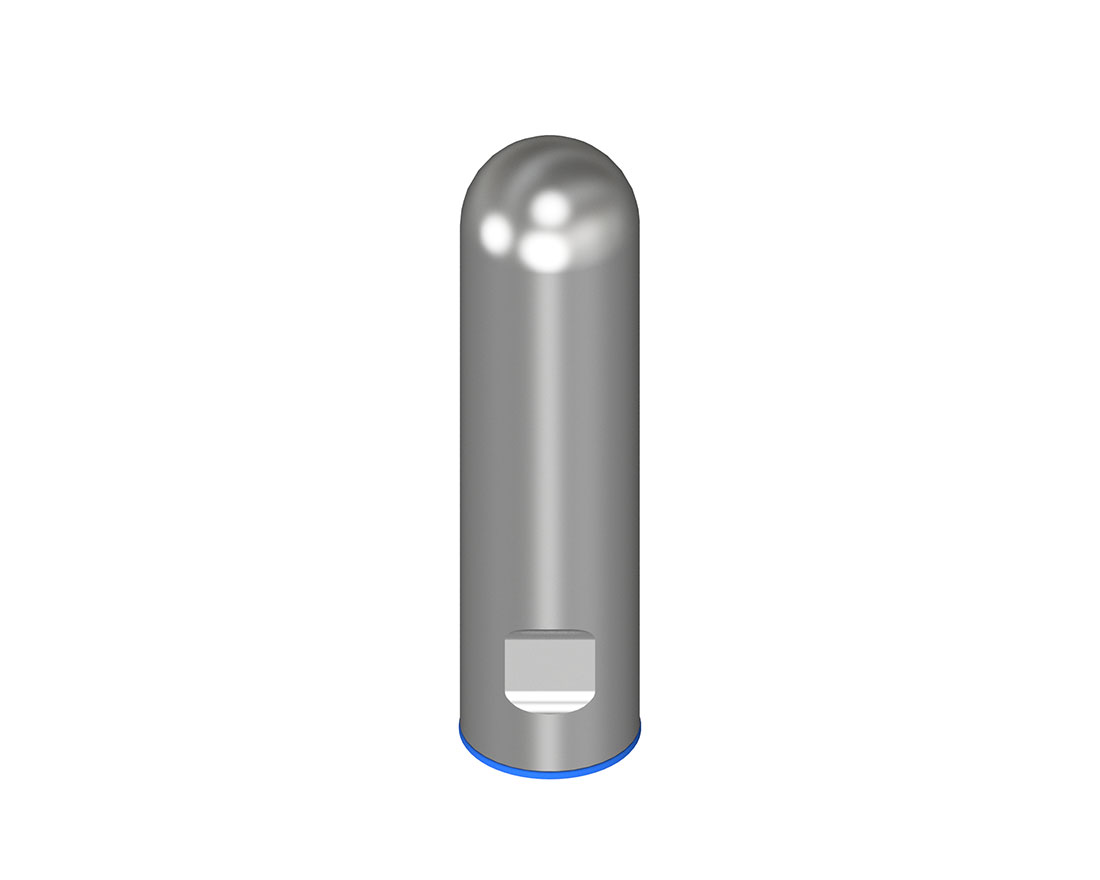

Hygienic 3-A thread cover with blue silicone gasket, M24, scotch

Type No.: 458BO-M24S/3A

€23.28*

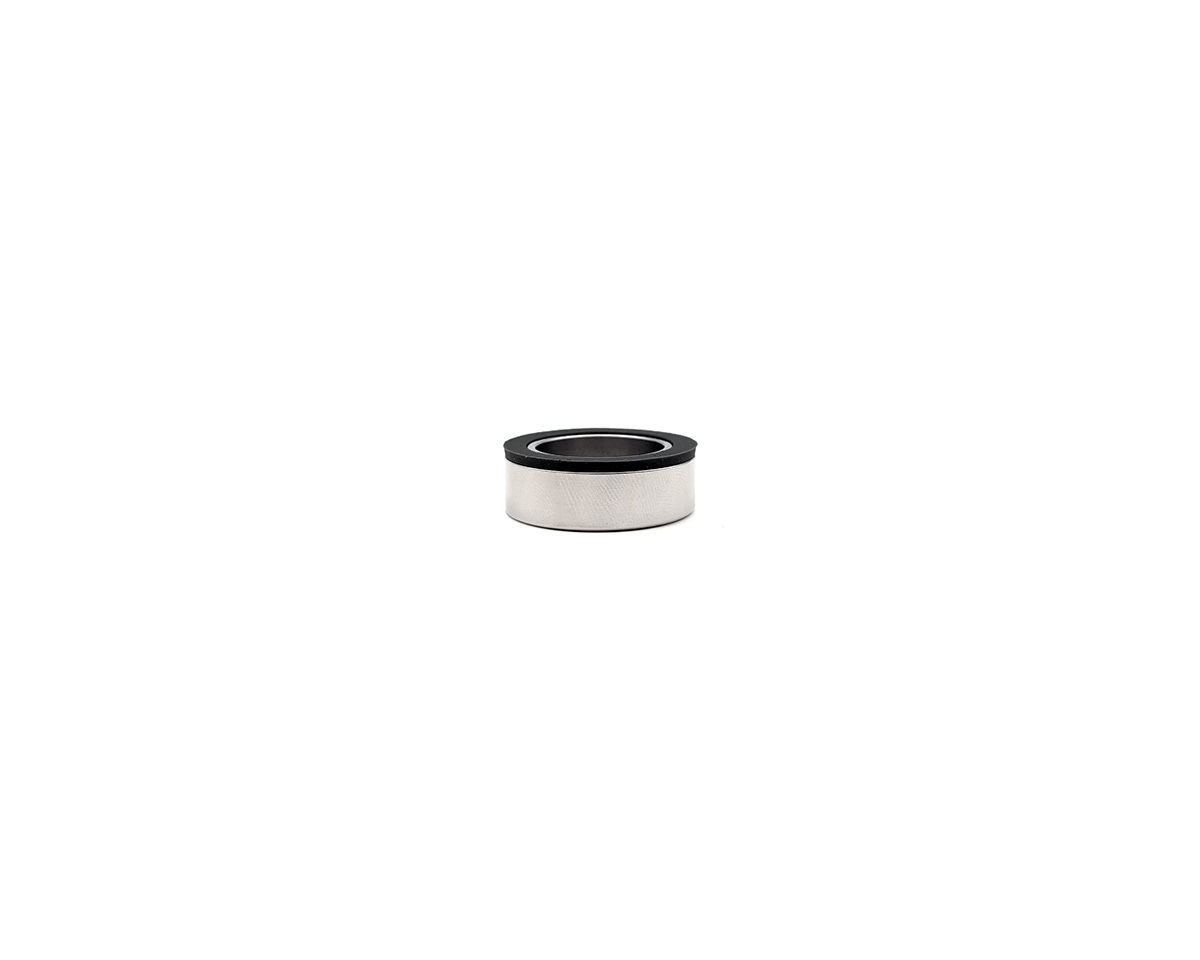

Spacer nut 24 mm Hygienic Design

Type No.: 458PROL3510/F24/USDA

From €11.22*

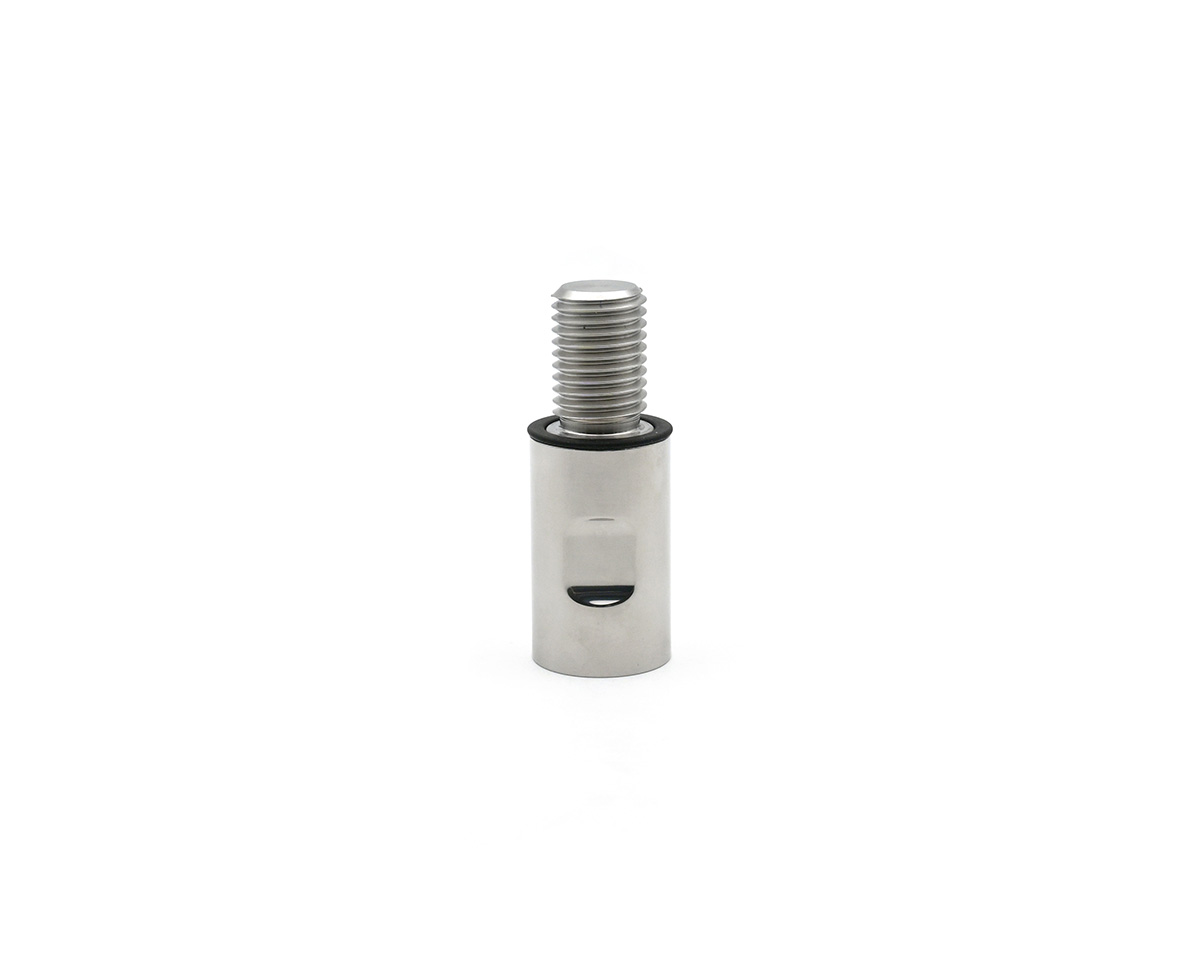

Spacer nut M24 x 50 Hygienic Design

Type No.: 458PROL3550/USDA

From €14.52*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Material spindle:	Stainless steel
Ø spindle (mm):	24
Spindle length (mm):	150
Balancing angle:	10°
Hygiene:	Yes
Hygiene certification:	USDA

Product description

Levelling foot TEKNOCLEAN, Ø 120 mm Stainless steel, M24 x 150 mm, Stainlees steel, Total height 188 mm, Articulated screw 5°, Adjustment range 65 mm, Antislip NBR black, Static load 40.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
