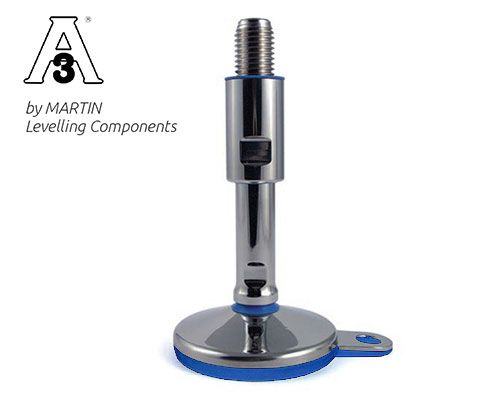

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M36 x 185 mm, Lug, EPDM
EAN
4061408146239
Type
45827700F/3A
Introducing the TEKNO-HYGIENIC 3-A leveling foot: crafted from stainless steel, it features a 120 mm diameter footplate, 15° articulated screw, and EPDM anti-slip surface, ensuring optimal stability and hygiene in industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€79.65*
|
| From 13 |
€77.92*
|
| From 41 |
€76.77*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 36 |
| Spindle length (mm): | 185 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |
Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M36 x 185 mm, Stainlees steel, Total height 245 mm, Articulated screw 15°, Adjustment range 65 mm, Bushing 85 mm, Lug Ø 15 mm, Antislip EPDM blue, Static load 30.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
