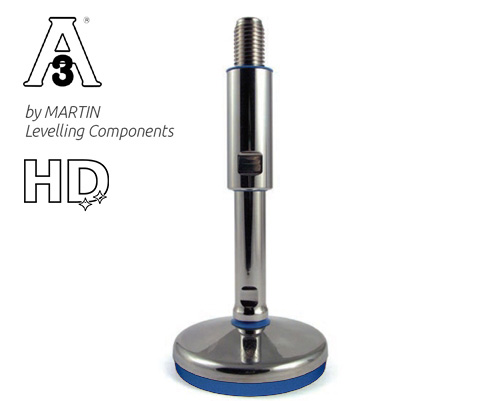

Levelling foot TEKNO-HYGIENIC 3-A, Ø 150 mm Stainless steel, M30 x 135 mm, EPDM
Discover the TEKNO-HYGIENIC 3-A leveling foot, engineered from stainless steel for durability. With a 15° articulated screw, 40 mm adjustment range, and 35,000 N static load capacity, it ensures robust support and optimal hygiene compliance.
| Quantity | Price |
|---|---|
| From 1 |
€68.75*
|
| From 13 |
€67.26*
|
| From 41 |
€66.26*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 135 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
