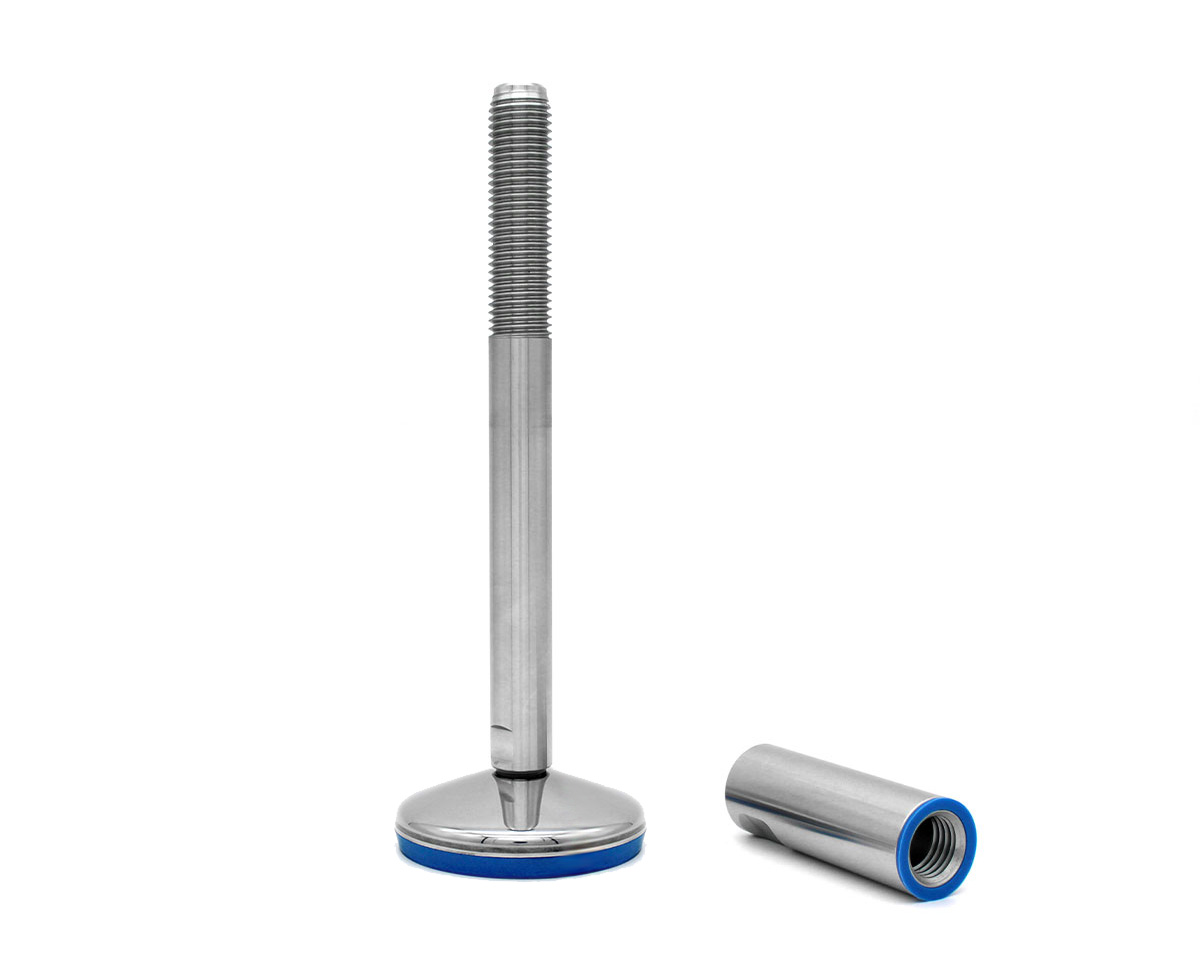

Levelling foot TEKNOCLEAN, Ø 60 mm Stainless steel, M16 x 150 mm, EPDM
Discover the TEKNOCLEAN levelling foot designed for precision. Crafted from stainless steel, it features an adjustable range of 65 mm, ensuring stability under static loads up to 7,000 N, with enhanced hygiene certification.
| Quantity | Price |
|---|---|
| From 1 |
€24.11*
|
| From 5 |
€23.96*
|
| From 15 |
€23.32*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |
| Hygiene: | Yes |
| Hygiene certification: | USDA |

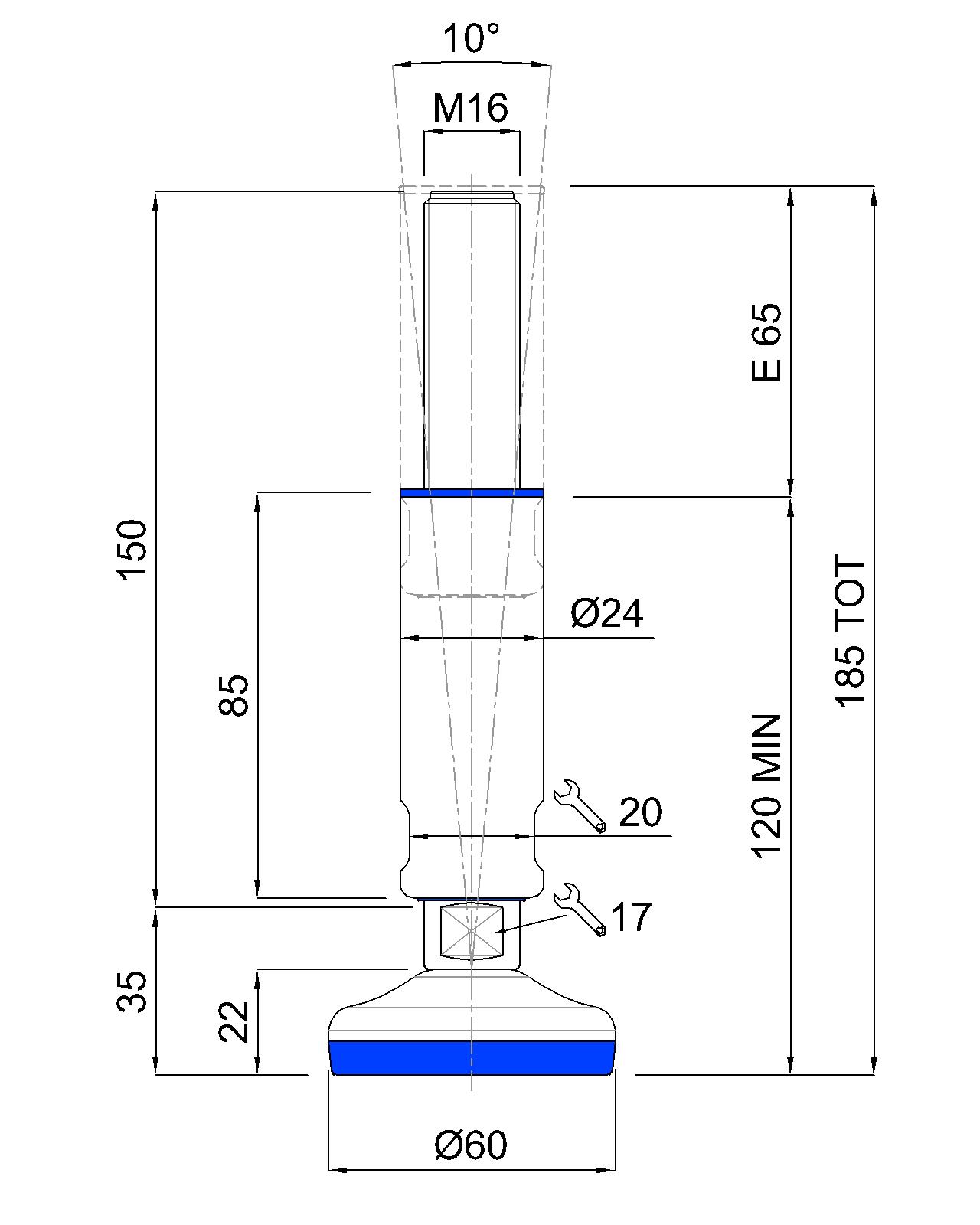

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
