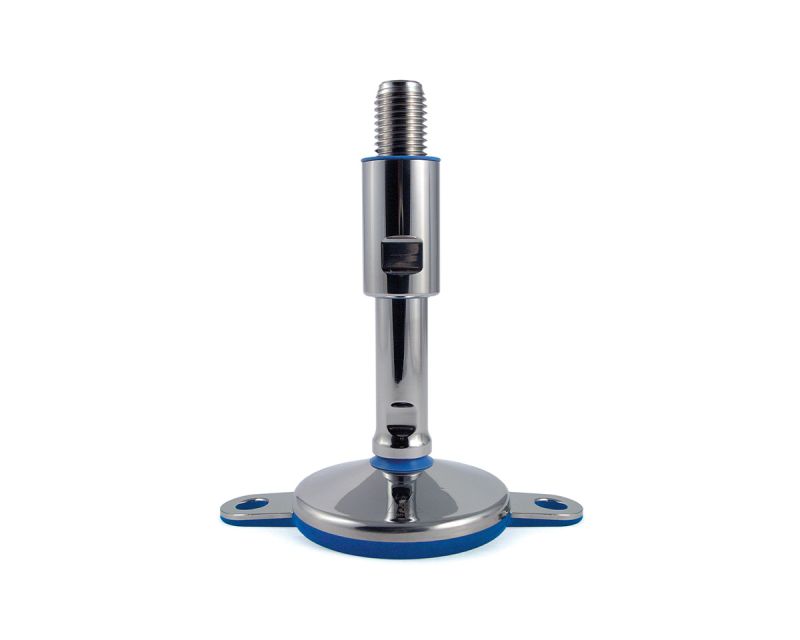

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M30 x 185 mm, 2 Lugs, EPDM

EAN 4061408146048

Type 45827694FF/3A

Discover the TEKNO-HYGIENIC 3-A leveling foot, crafted from stainless steel for maximum durability and hygiene certification. With a 15° adjustment angle and a robust static load capacity of 30,000 N, it ensures stability and precision in demanding environments.

High-quality stainless steel construction ensures durability and resistance to corrosion.
Hygienic design certified with 3-A Sanitary Standard, perfect for environments requiring strict cleanliness.
Articulated screw allows for a 15° adjustment angle, facilitating precise leveling even on uneven surfaces.
Generous adjustment range of 65 mm to accommodate various applications.
Antislip EPDM foot pad provides excellent grip, supporting a static load of up to 30,000 N.

Quantity	Price
From 1	€68.14*
From 13	€66.66*
From 41	€65.68*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€68.14* / piece

Our payment methods:

Accessories

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	EPDM blue
Ø range base plate (mm):	111-130
Material spindle:	Stainless steel
Ø spindle (mm):	30
Spindle length (mm):	185
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M30 x 185 mm, Stainlees steel, Total height 245 mm, Articulated screw 15°, Adjustment range 65 mm, Bushing 85 mm, 2 Lugs Ø 15 mm, Antislip EPDM blue, Static load 30.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
