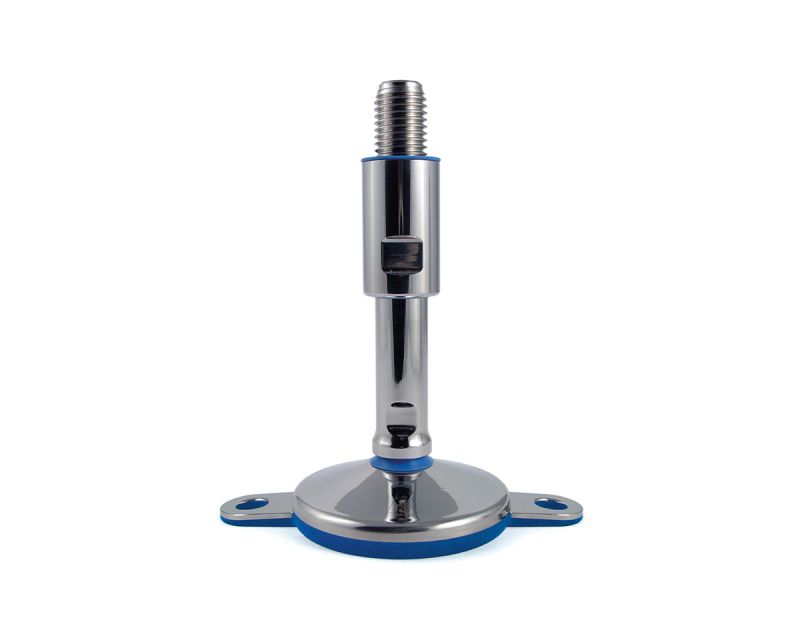

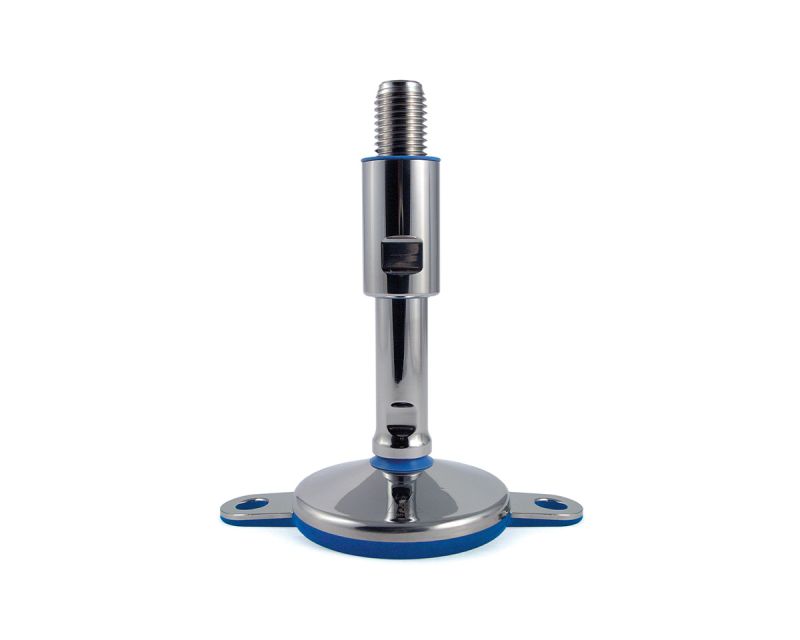

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M16 x 140 mm, 2 Lugs, EPDM

EAN 4061408145973

Type 45827680FF/3A

Discover the TEKNO-HYGIENIC 3-A Levelling Foot, crafted from stainless steel for superior durability. With a certified hygienic design, it supports up to 30,000 N, ensuring stability in any environment.

Made from high-quality stainless steel for enhanced durability and corrosion resistance.
Hygienic design certified to 3-A Sanitary Standards, ensuring compliance in sensitive environments.
Articulated screw allows for adjustment up to 45 mm at a tilt of 15° for precise leveling.
Features a robust static load capacity of 30,000 N, suitable for heavy-duty applications.
Non-slip EPDM rubber pads provide excellent grip and stability on various surfaces.

Quantity	Price
From 1	€53.23*
From 13	€52.07*
From 41	€51.30*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€53.23* / piece

Our payment methods:

Accessories

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	EPDM blue
Ø range base plate (mm):	111-130
Material spindle:	Stainless steel
Ø spindle (mm):	16
Spindle length (mm):	140
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M16 x 140 mm, Stainlees steel, Total height 200 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, 2 Lugs Ø 15 mm, Antislip EPDM blue, Static load 30.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
