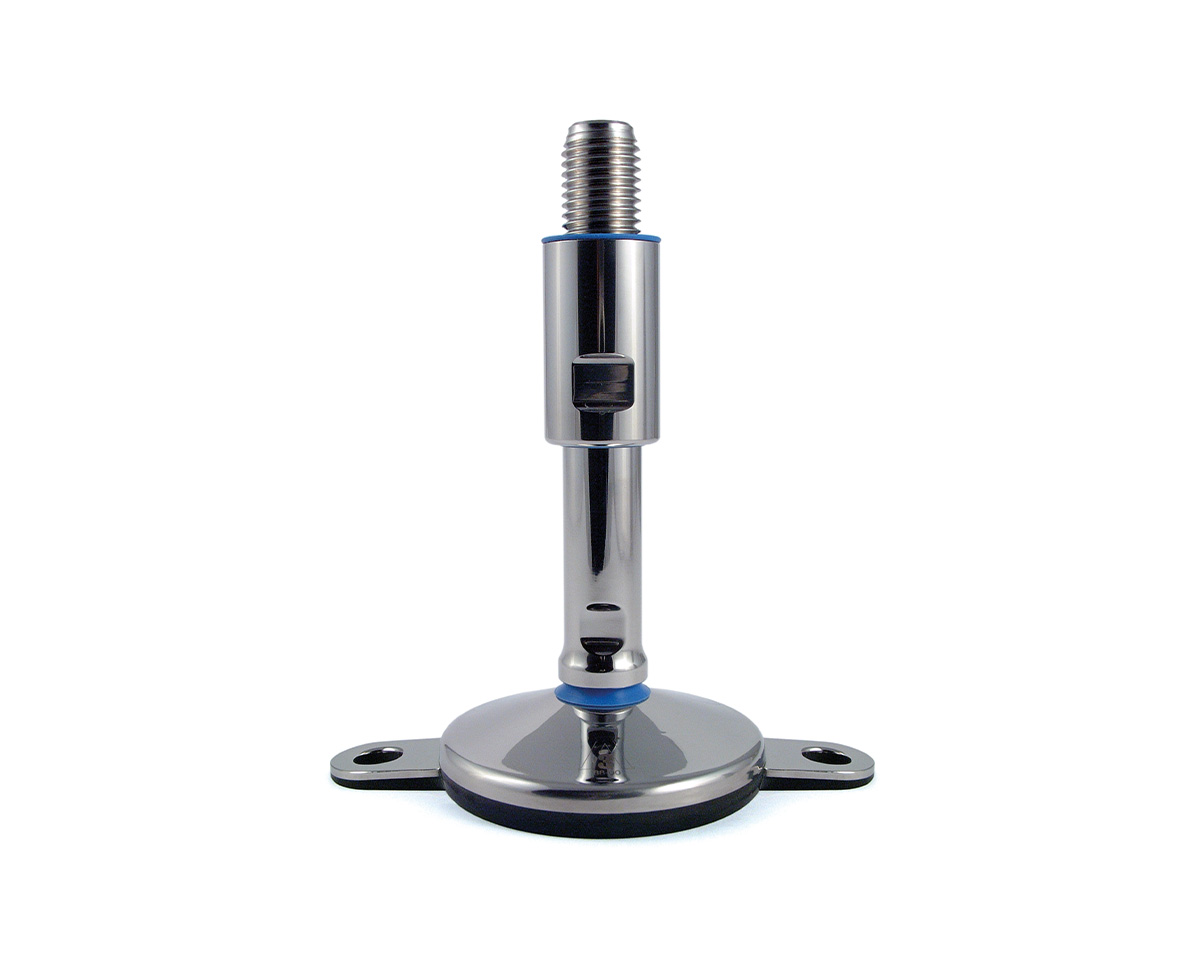

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M36 x 235 mm, 2 Lugs, NBR

EAN 4061408145669

Type 45827202FF/3A

Discover the TEKNO-HYGIENIC 3-A levelling foot, engineered for durability and hygiene. Equipped with a stainless steel design, it supports static loads up to 30,000 N, ensuring stability in demanding environments.

Durable stainless steel construction ensures long-lasting performance and corrosion resistance.
Hygienic design certified to 3-A Sanitary Standard, ideal for food industry applications.
Adjustable height with a total adjustment range of 65 mm, allowing for precise leveling.
Static load capacity of 30,000 N, providing stability even under heavy loads.
Articulated screw design enables a 15° adjustment angle, accommodating uneven surfaces.

Quantity	Price
From 1	€83.42*
From 13	€81.61*
From 41	€80.40*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€83.42* / piece

Our payment methods:

Accessories

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Material spindle:	Stainless steel
Ø spindle (mm):	36
Spindle length (mm):	235
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M36 x 235 mm, Stainlees steel, Total height 295 mm, Articulated screw 15°, Adjustment range 65 mm, Bushing 85 mm, 2 Lugs Ø 15 mm, Antislip NBR black, Static load 30.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
