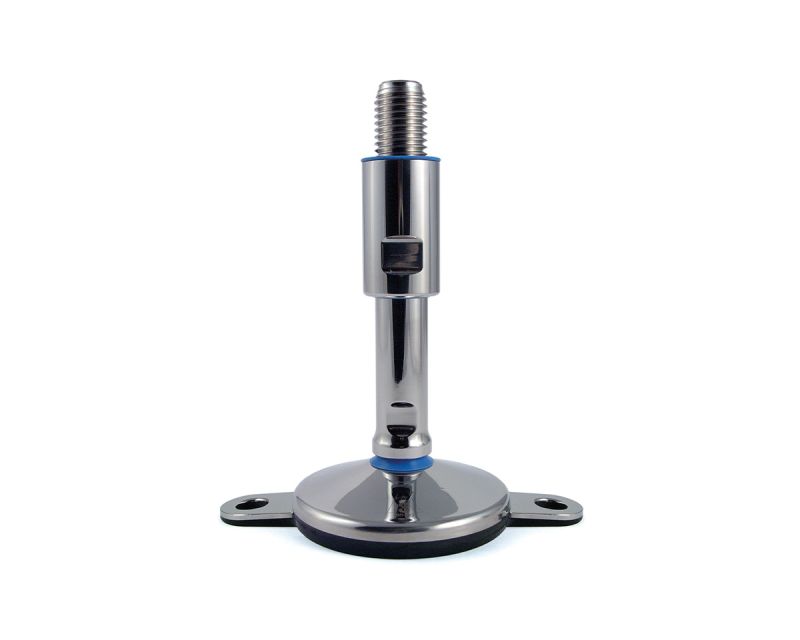

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M30 x 235 mm, 2 Lugs, NBR

EAN 4061408145638

Type 45827196FF/3A

Introducing the TEKNO-HYGIENIC 3-A leveling foot: crafted from stainless steel for optimal durability, featuring a 15° articulated screw and a static load capacity of 30,000 N.

High load capacity of 30,000 N, suitable for heavy-duty applications
Stainless steel construction for durability and corrosion resistance
3-A Sanitary Standard certification ensures compliance with hygiene requirements
Articulated screw mechanism allows for 15° adjustment, providing flexibility in uneven surfaces
Equipped with NBR anti-slip pads to enhance stability and prevent slippage

Quantity	Price
From 1	€70.13*
From 13	€68.61*
From 41	€67.59*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€70.13* / piece

Our payment methods:

Accessories

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Material spindle:	Stainless steel
Ø spindle (mm):	30
Spindle length (mm):	235
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M30 x 235 mm, Stainlees steel, Total height 295 mm, Articulated screw 15°, Adjustment range 65 mm, Bushing 85 mm, 2 Lugs Ø 15 mm, Antislip NBR black, Static load 30.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
