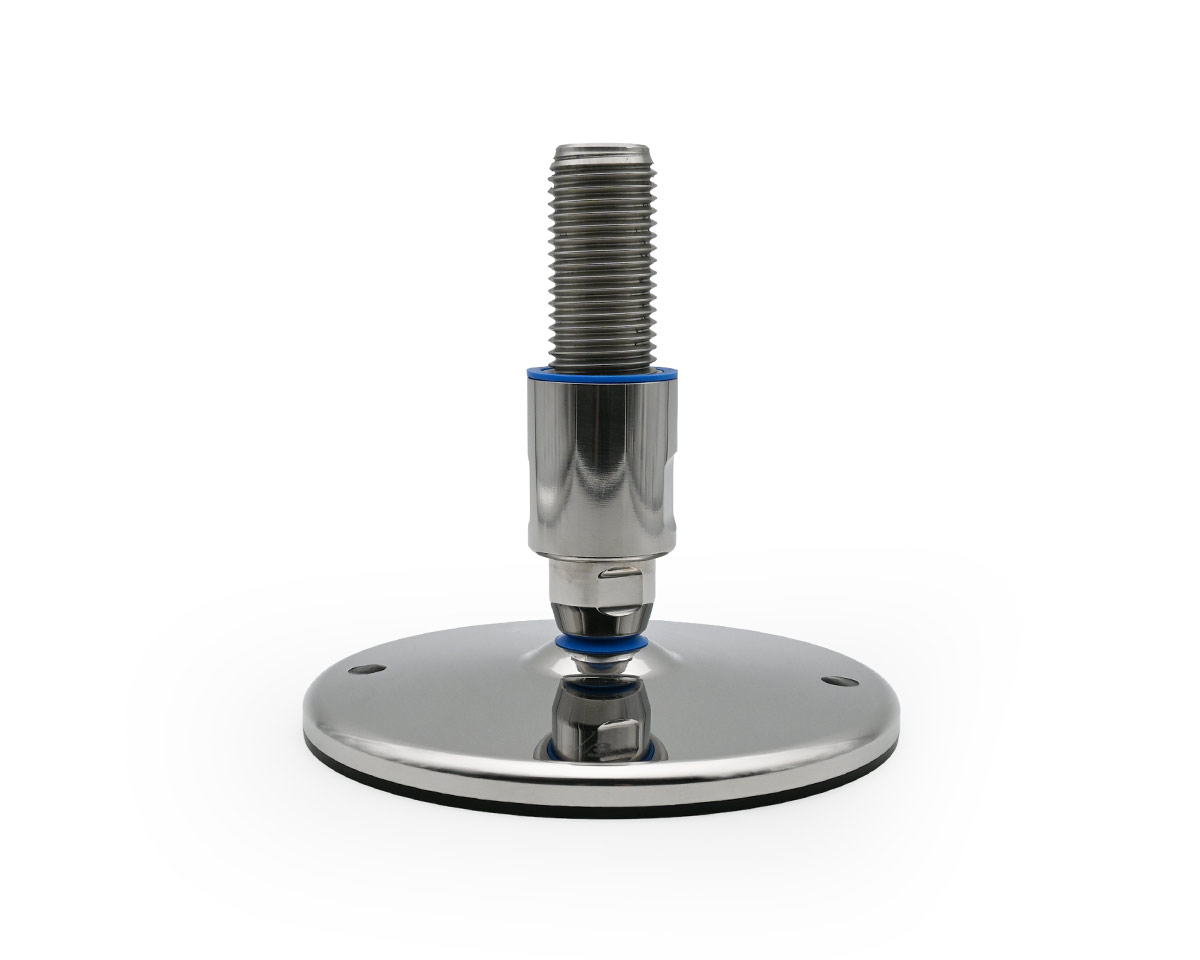

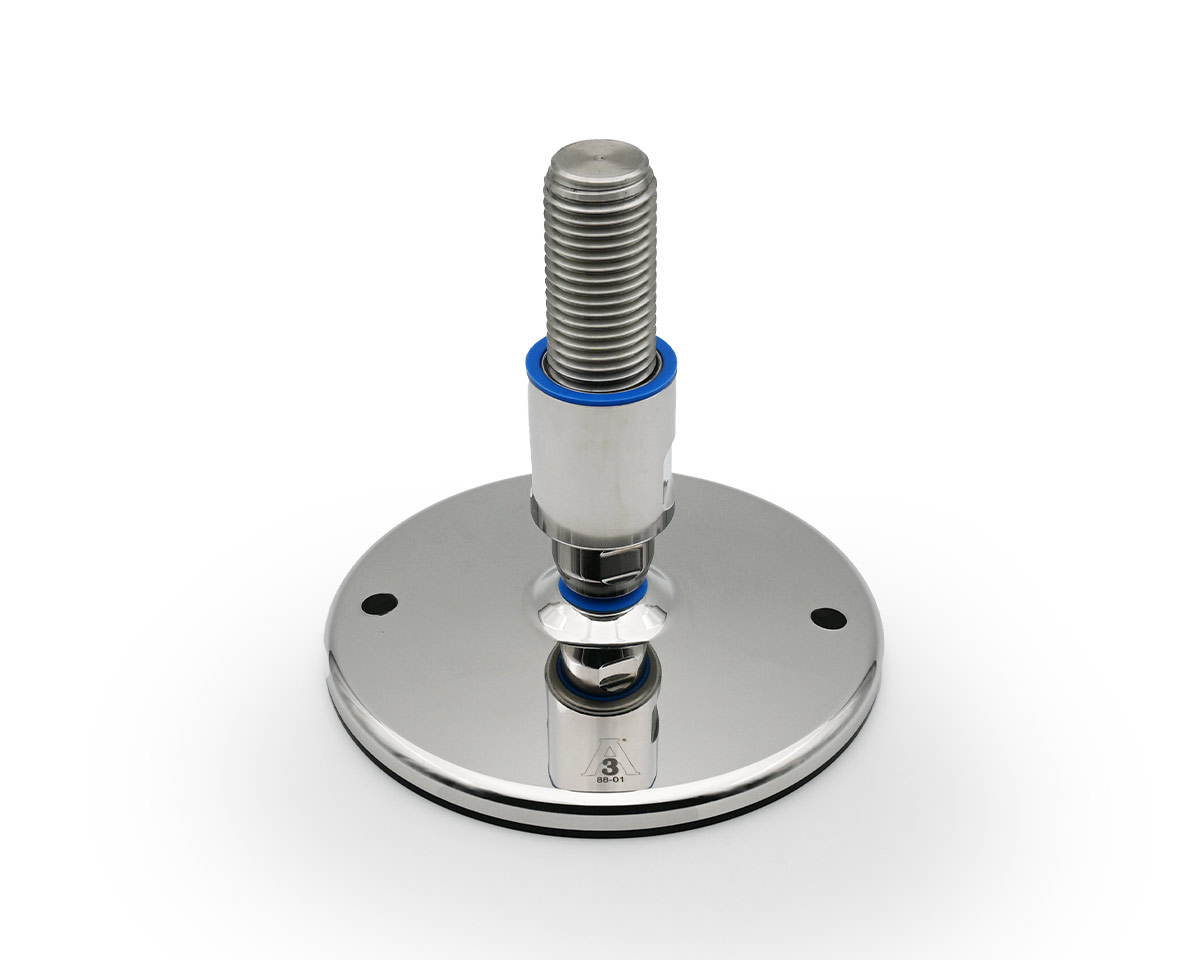

Levelling foot TEKNO-HYGIENIC 3-A, Ø 200 mm Stainless steel, M20 x 190 mm, Drills, NBR

EAN 4061408140671

Type 45827453F/3A

Discover the TEKNO-HYGIENIC 3-A levelling foot, designed for optimal stability and hygiene. Featuring stainless steel construction, a 15° articulated screw, and a static load capacity of 45,000 N.

Constructed from high-grade stainless steel, ensuring durability and corrosion resistance in demanding environments.
Features a unique 3-A Sanitary Standard certification, suitable for hygienic applications in food and pharmaceutical industries.
An articulated screw design with a 15° adjustment angle allows for precise leveling in uneven surfaces.
Offers a static load capacity of 45,000 N, making it ideal for heavy-duty equipment and machinery.
Non-slip NBR rubber padding enhances stability and safety during operation, preventing slippage on various surfaces.

Quantity	Price
From 1	€152.12*
From 13	€148.81*
From 41	€146.61*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€152.12* / piece

Our payment methods:

Accessories

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	131-230
Ground fastening:	2 mounting holes
Vibration damping:	no
Material spindle:	Stainless steel
Ø spindle (mm):	20
Spindle length (mm):	190
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

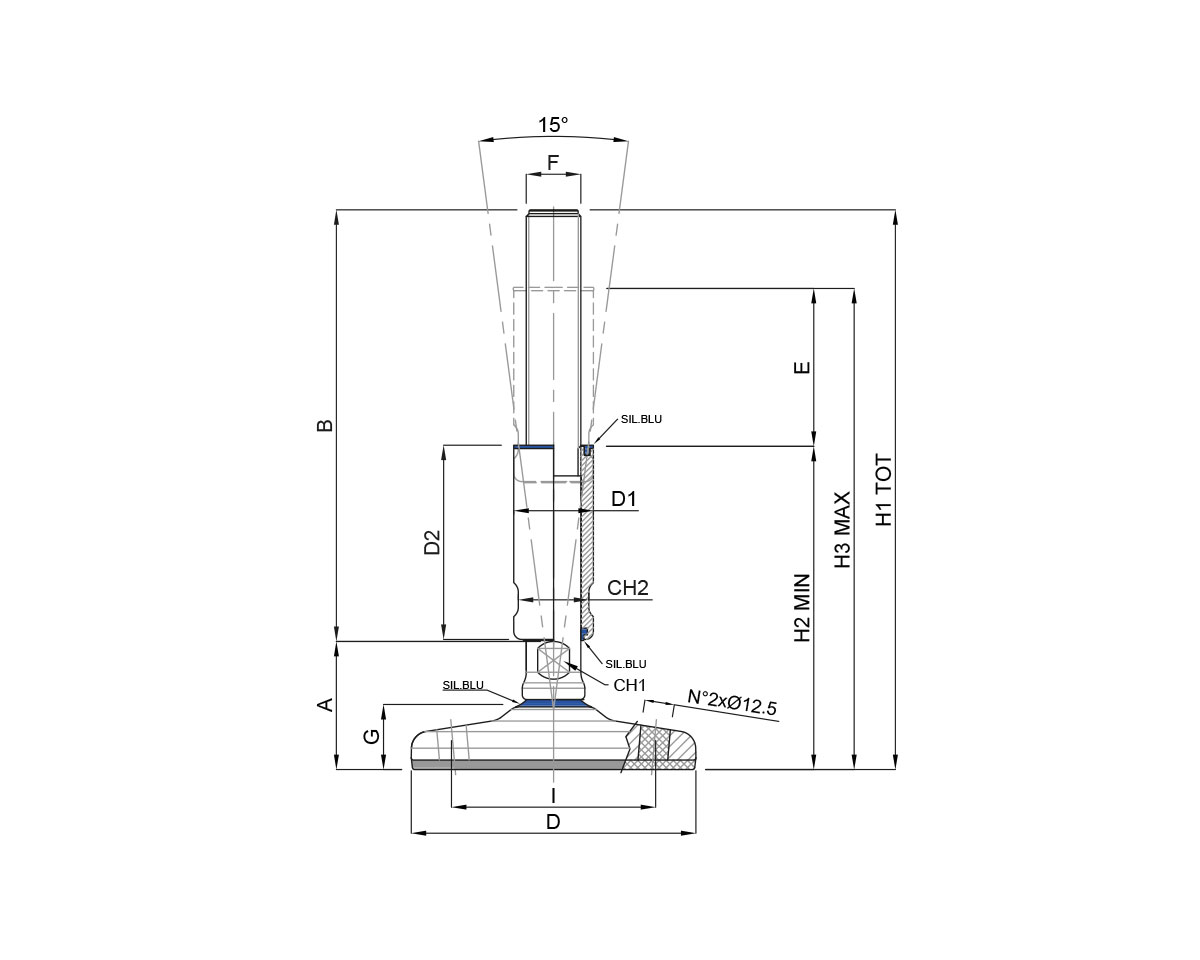

Levelling foot TEKNO-HYGIENIC 3-A, Ø 200 mm Stainless steel, M20 x 190 mm, Stainlees steel, Total height 248 mm, Articulated screw 15°, Adjustment range 70 mm, Bushing 85 mm, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 45.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
