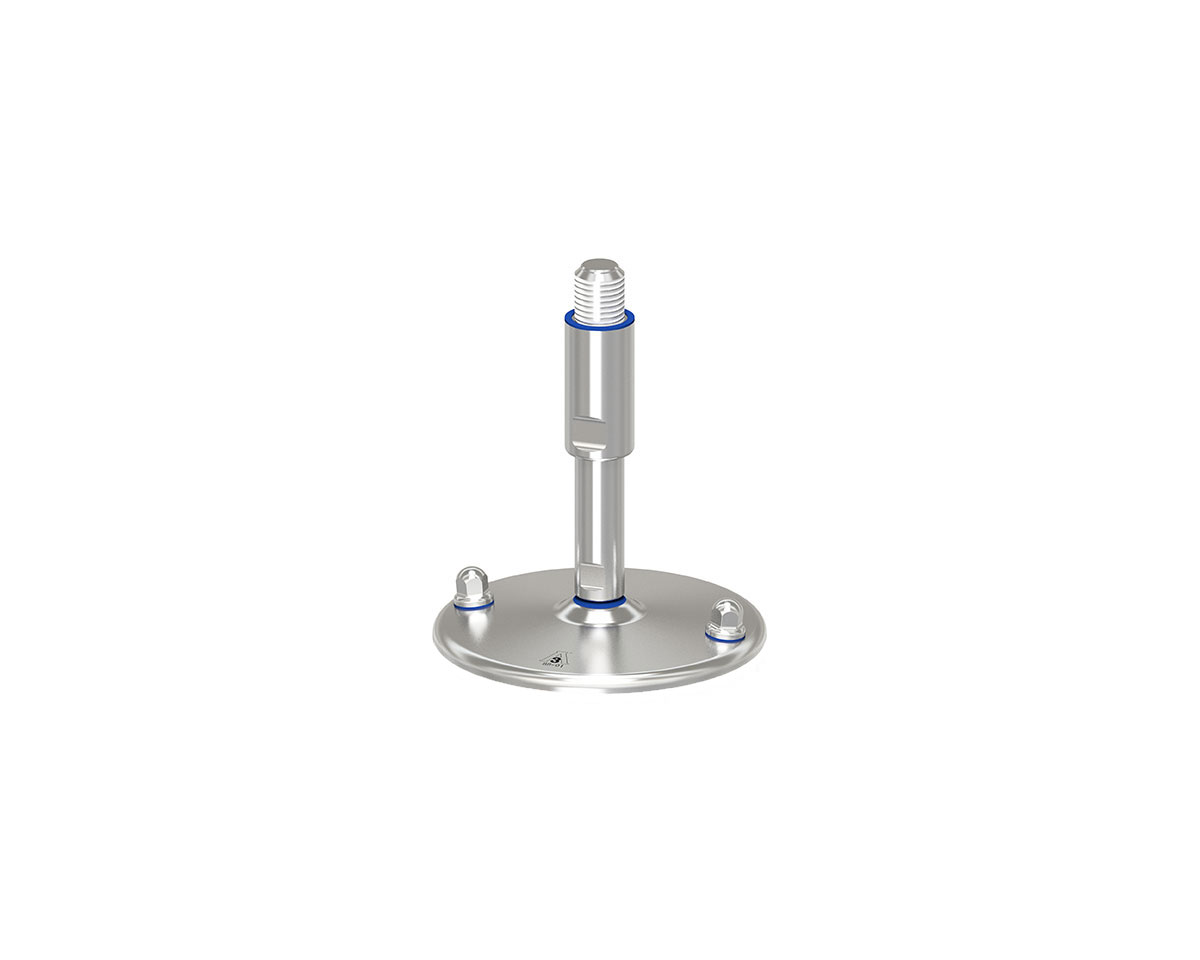

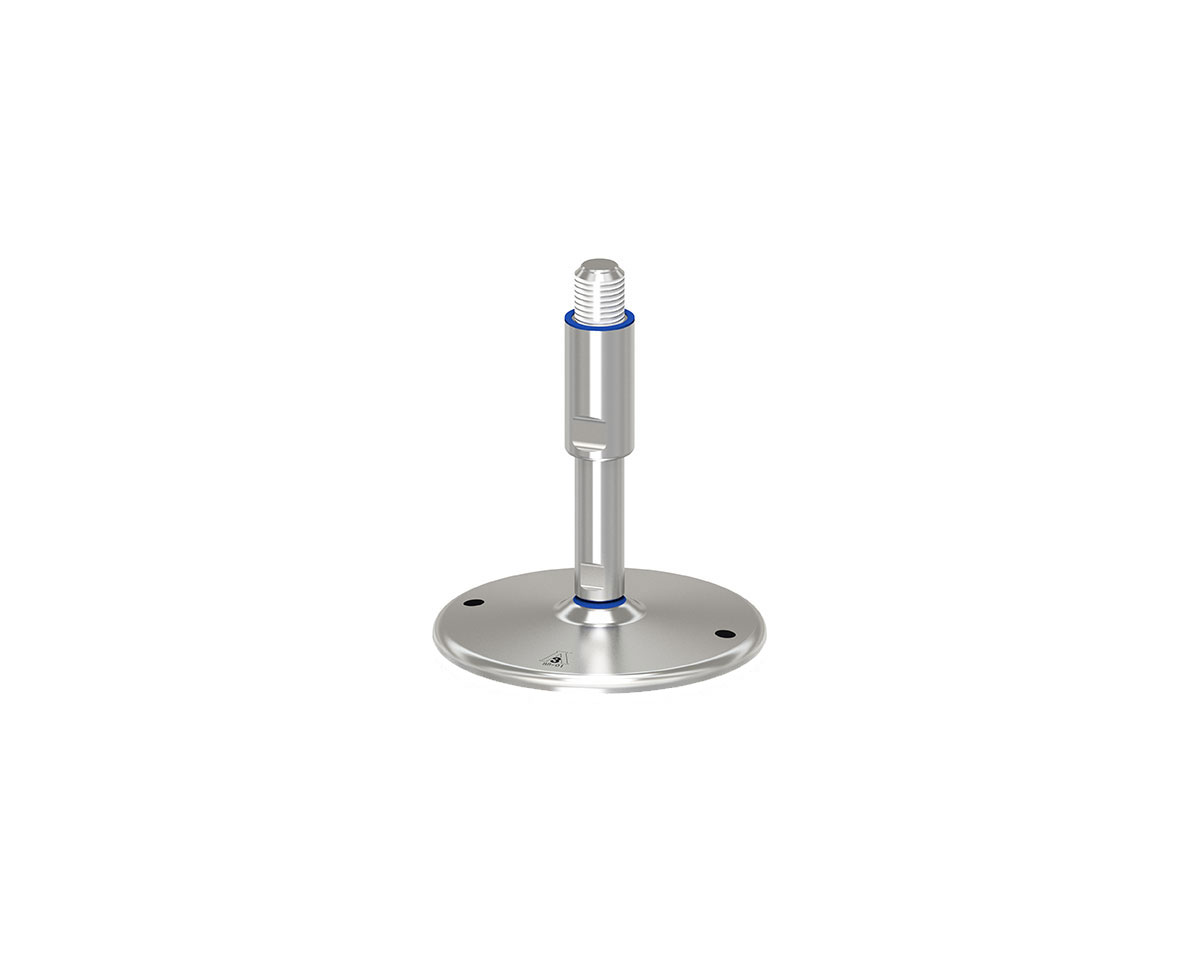

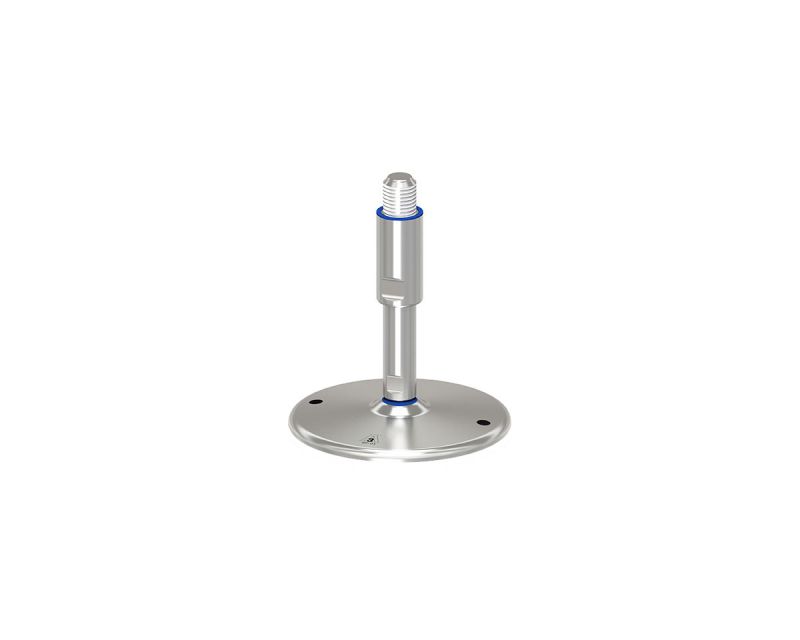

Levelling foot TEKNO-HYGIENIC 3-A, Ø 200 mm Stainless steel, M30 x 140 mm, Drills
EAN
4061408140435
Type
45827458F/3A
Introducing the TEKNO-HYGIENIC 3-A leveling foot, designed for optimal stability and hygiene in demanding environments. With a robust stainless steel design, 15° articulation, and 40 mm adjustable range, it supports static loads up to 80,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€150.59*
|
| From 13 |
€147.31*
|
| From 41 |
€145.13*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 140 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |
Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 200 mm Stainless steel, M30 x 140 mm, Stainlees steel, Total height 189 mm, Articulated screw 15°, Adjustment range 40 mm, Bushing 60 mm, Bore holes Ø 12,5 mm, Static load 80.000 N
