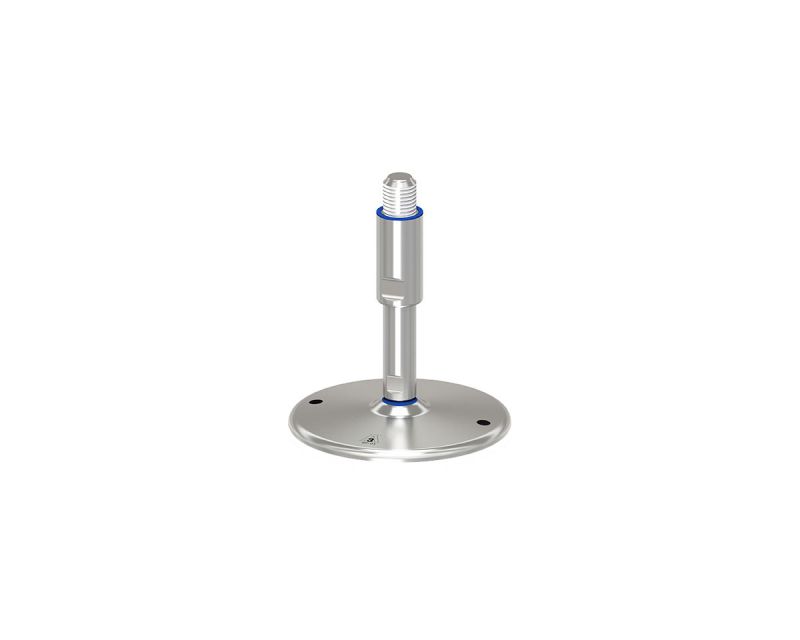

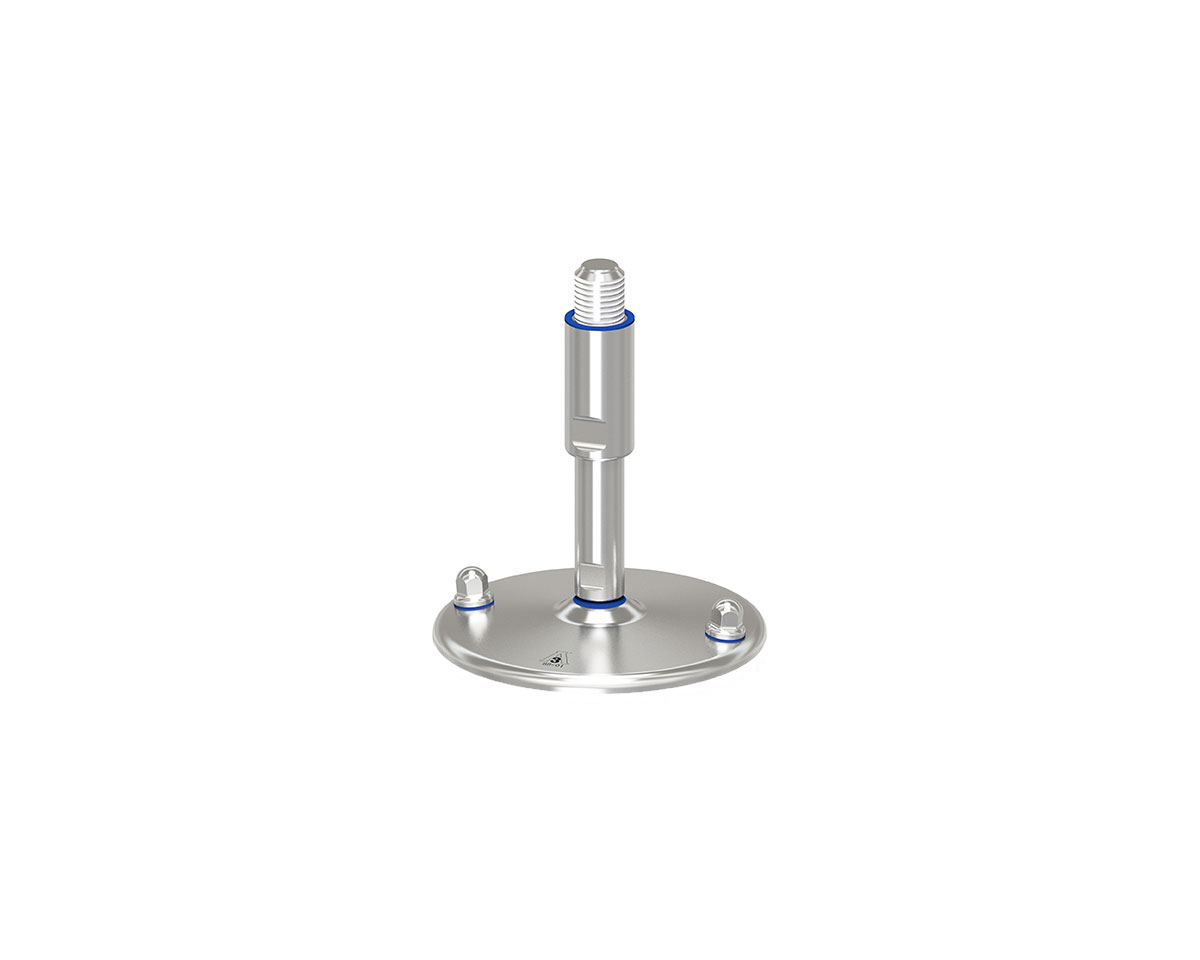

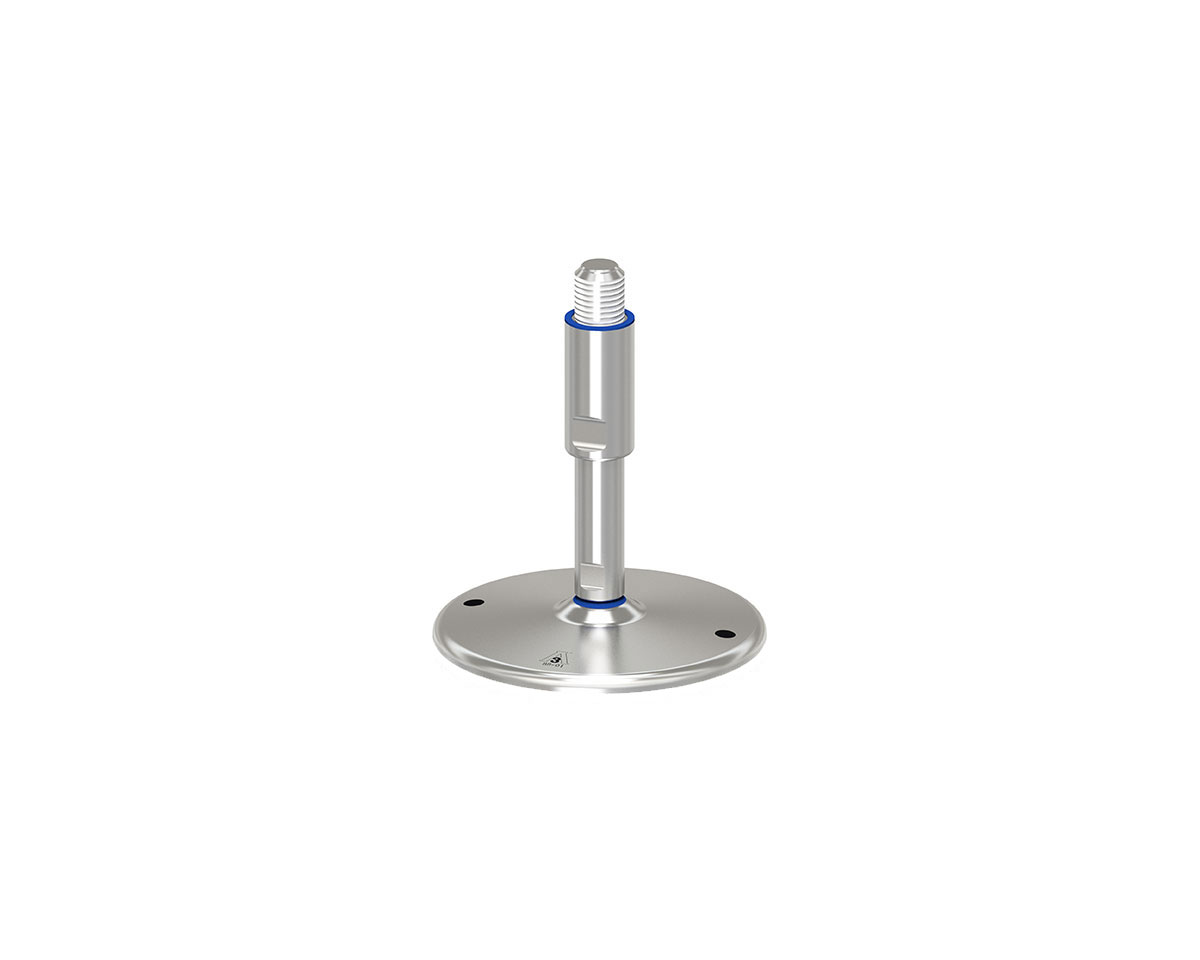

Levelling foot TEKNO-HYGIENIC 3-A, Ø 200 mm Stainless steel, M20 x 140 mm, Drills

EAN 4061408140398

Type 45827450F/3A

Discover the TEKNO-HYGIENIC 3-A levelling foot, crafted from stainless steel for enhanced hygiene. With a 200 mm diameter, 194 mm height, and 45,000 N static load capacity, it ensures stability and compliance with 3-A Sanitary Standards.

Made from high-quality stainless steel for enhanced durability and corrosion resistance
Hygiene-certified to 3-A Sanitary Standard, ensuring suitability for cleanroom and food processing environments
Adjustable range of 45 mm with a 15° articulated screw for precise leveling and stability
Static load capacity of 45,000 N, making it ideal for heavy-duty applications
Versatile mounting options with bore holes of Ø 12.5 mm for easy installation

Quantity	Price
From 1	€142.40*
From 13	€139.31*
From 41	€137.24*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€142.40* / piece

Our payment methods:

Accessories

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	No
Ø range base plate (mm):	131-230
Ground fastening:	2 mounting holes
Vibration damping:	no
Material spindle:	Stainless steel
Ø spindle (mm):	20
Spindle length (mm):	140
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

Levelling foot TEKNO-HYGIENIC 3-A, Ø 200 mm Stainless steel, M20 x 140 mm, Stainlees steel, Total height 194 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Bore holes Ø 12,5 mm, Static load 45.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
