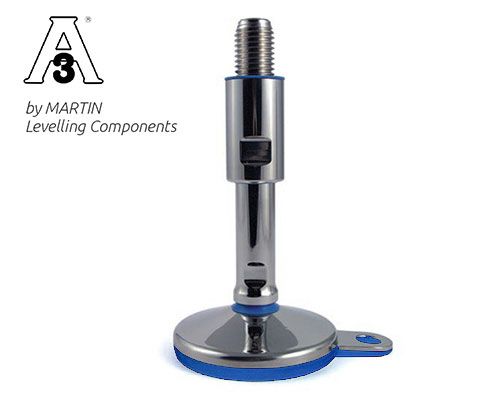

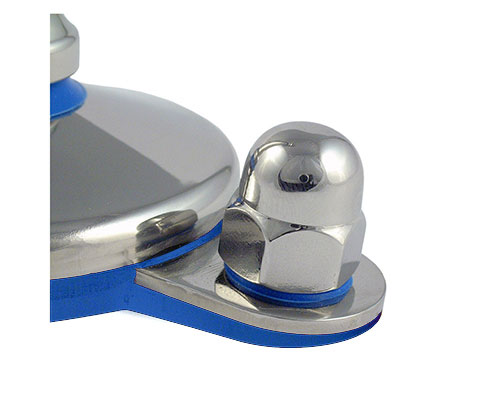

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M24 x 140 mm, Lug, EPDM

EAN 4061408128907

Type 45827668F/3A

Discover the TEKNO-HYGIENIC 3-A leveling foot, featuring a robust stainless steel design, 15° articulated screw, and a static load capacity of 25,000 N—ideal for hygienic applications.

Robust design constructed from high-quality stainless steel for enhanced corrosion resistance and durability.
Features an articulated screw with a 15° adjustment angle and a 45 mm adjustment range, providing superior leveling capabilities.
Non-slip EPDM foot pad in blue, ensuring stability and preventing slippage in various operational environments.
Complies with 3-A Sanitary Standard certification, ideal for hygienic applications in food and pharmaceutical industries.
Capable of withstanding static loads up to 25,000 N, ensuring reliability even under heavy loads.

Quantity	Price
From 1	€49.82*
From 13	€48.74*
From 41	€48.01*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€49.82* / piece

Our payment methods:

Accessories

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	EPDM blue
Ø range base plate (mm):	91-110
Material spindle:	Stainless steel
Ø spindle (mm):	24
Spindle length (mm):	140
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M24 x 140 mm, Stainlees steel, Total height 196 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Lug Ø 15 mm, Antislip EPDM blue, Static load 25.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
