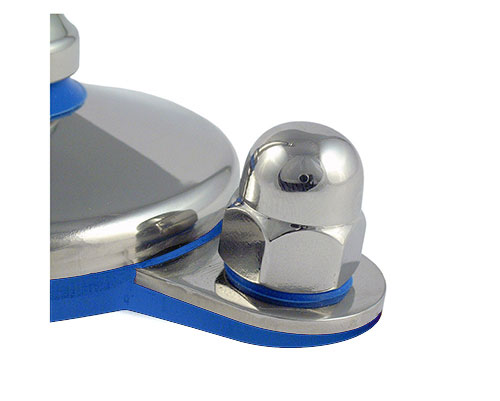

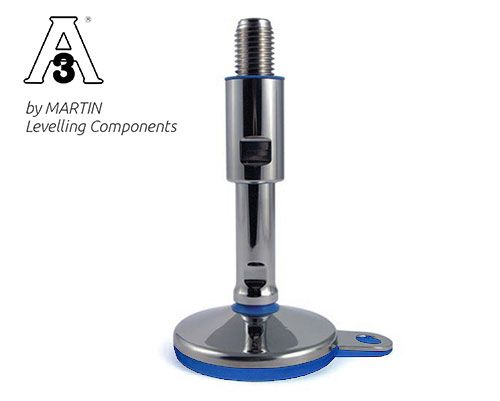

Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M20 x 190 mm, Lug, EPDM

EAN 4061408128792

Type 45827630F/3A

Discover the TEKNO-HYGIENIC 3-A leveling foot, featuring a robust stainless steel design, 15° articulation, and an impressive static load capacity of 10,000 N. Ideal for hygienic applications.

Complies with 3-A Sanitary Standard, ensuring high hygiene levels for food and pharmaceutical applications
Constructed from durable stainless steel, providing exceptional resistance to corrosion and wear
Features an articulated screw mechanism with a 15° adjustment angle, facilitating precise leveling adjustments
Equipped with an anti-slip EPDM pad, designed for maximum grip and stability under heavy static loads up to 10,000 N
Versatile footplate diameter range of 51-70 mm, accommodating various applications and configurations

Quantity	Price
From 1	€48.12*
From 13	€47.07*
From 41	€46.38*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€48.12* / piece

Our payment methods:

Accessories

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	EPDM blue
Ø range base plate (mm):	51-70
Material spindle:	Stainless steel
Ø spindle (mm):	20
Spindle length (mm):	190
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M20 x 190 mm, Stainlees steel, Total height 241 mm, Articulated screw 15°, Adjustment range 70 mm, Bushing 85 mm, Lug Ø 15 mm, Antislip EPDM blue, Static load 10.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
