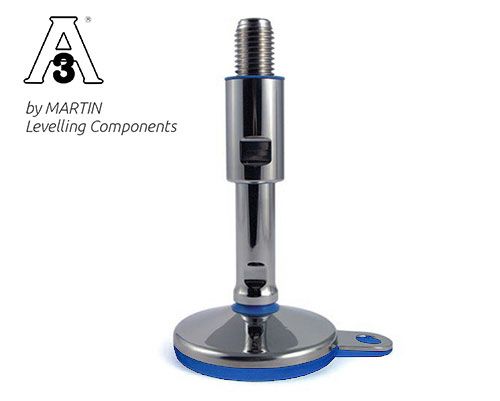

Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M20 x 140 mm, Lug, EPDM

EAN 4061408128785

Type 45827628F/3A

Optimize your installations with the TEKNO-HYGIENIC 3-A leveling foot, featuring a durable stainless steel design, 45 mm adjustment range, and 3-A sanitary certification for superior hygiene standards.

Element 1 of 3 (image) – Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M20 x 140 mm, Lug, EPDM

Element 2 of 3 (image) – Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M20 x 140 mm, Lug, EPDM

Element 3 of 3 (image) – Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M20 x 140 mm, Lug, EPDM

Constructed from high-quality stainless steel, ensuring durability and resistance to corrosion for long-term use.
Features a hygiene certification according to 3-A Sanitary Standard, ideal for applications in sensitive environments.
Adjustable feet with a total height of 191 mm and an adjustment range of 45 mm, providing flexibility in leveling.
Articulated screw design allows for a tilt angle of 15°, accommodating uneven surfaces efficiently.
Equipped with a blue EPDM anti-slip pad, providing excellent grip and stability under static loads up to 10,000 N.

Quantity	Price
From 1	€41.80*
From 13	€40.89*
From 41	€40.29*

Currently sold out, Refill time: 5 days

€41.80* / piece

Our payment methods:

Accessories

In Stock

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€5.87*

Product properties

Footplate material:	Stainless steel
Anti-slip:	EPDM blue
Ø range base plate (mm):	51-70
Material spindle:	Stainless steel
Ø spindle (mm):	20
Spindle length (mm):	140
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M20 x 140 mm, Stainlees steel, Total height 191 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Lug Ø 15 mm, Antislip EPDM blue, Static load 10.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
