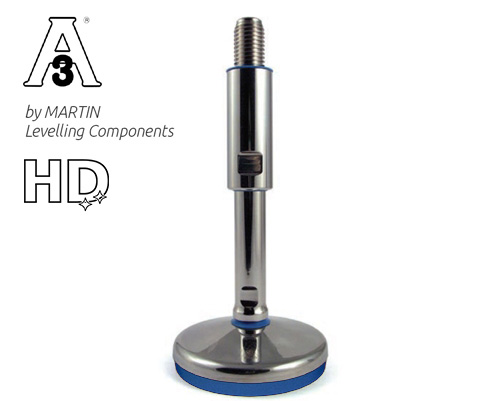

Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M30 x 135 mm, EPDM
EAN
4061408128587
Type
45827692/3A
Discover the TEKNO-HYGIENIC levelling foot, engineered for optimal performance with a stainless steel structure, 40 mm adjustment range, and 3-A Hygiene certification, perfect for demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€57.99*
|
| From 13 |
€56.73*
|
| From 41 |
€55.89*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 135 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |
Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M30 x 135 mm, Stainlees steel, Total height 195 mm, Articulated screw 15°, Adjustment range 40 mm, Bushing 60 mm, Antislip EPDM blue, Static load 30.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
