Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M30 x 185 mm, EPDM
EAN
4061408128525
Type
45827674/3A
The TEKNO-HYGIENIC 3-A levelling foot, featuring a 100 mm stainless steel base, offers exceptional stability and hygiene with a 15° adjustable screw. Ideal for demanding environments, it supports static loads of 25,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€56.70*
|
| From 13 |
€55.47*
|
| From 41 |
€54.65*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 185 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

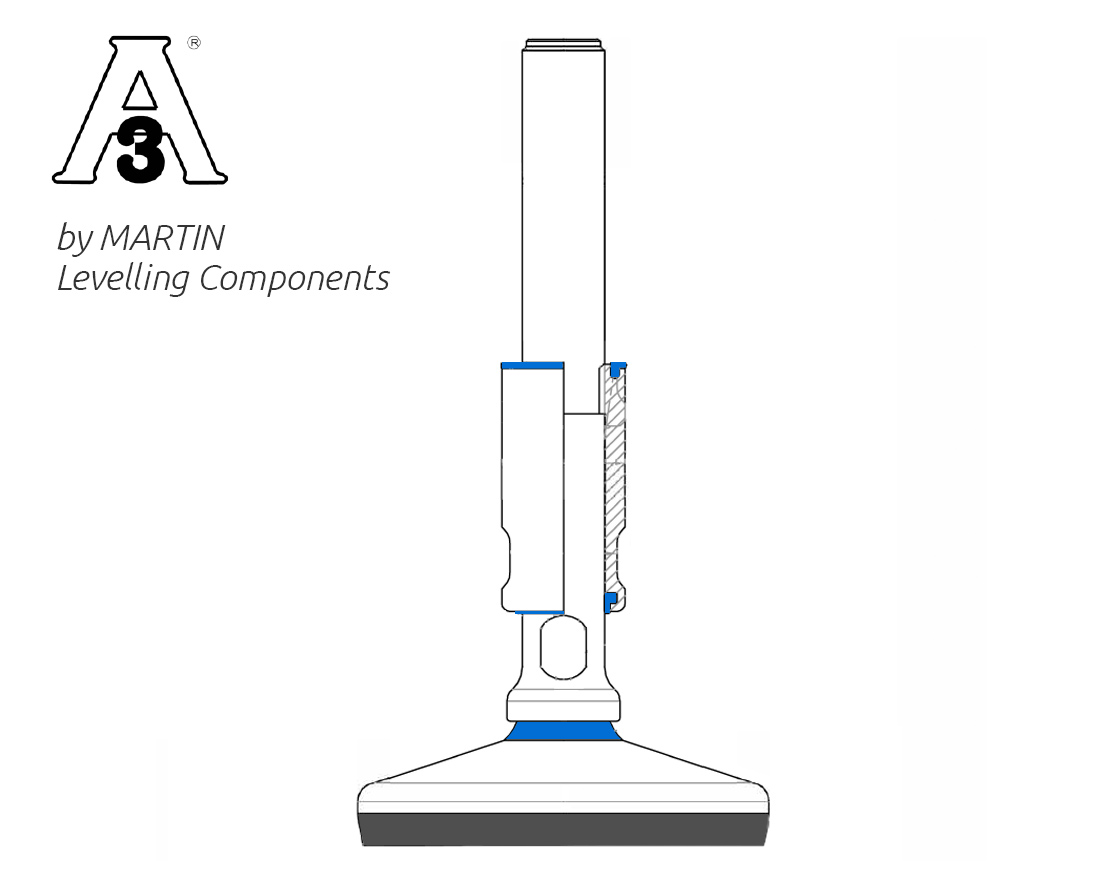

Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M30 x 185 mm, Stainlees steel, Total height 241 mm, Articulated screw 15°, Adjustment range 65 mm, Bushing 85 mm, Antislip EPDM blue, Static load 25.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
