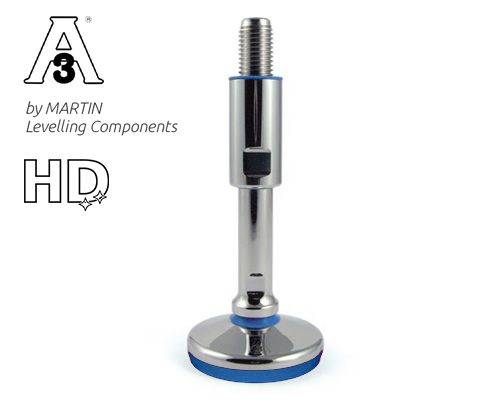

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M30 x 135 mm, EPDM
Ensure optimal stability and hygiene with the TEKNO-HYGIENIC 3-A leveling foot. Featuring a durable stainless steel design and 15° articulated screw, it supports static loads up to 25,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€51.93*
|
| From 13 |
€50.80*
|
| From 41 |
€50.05*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 135 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
