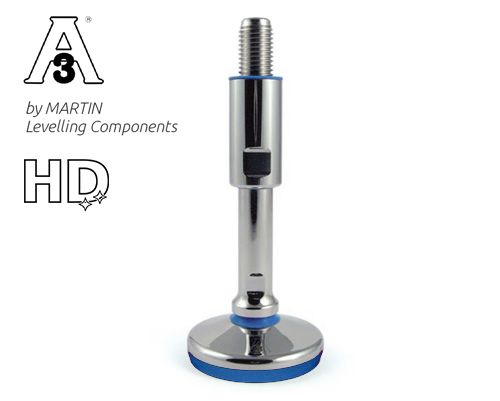

Levelling foot TEKNO-HYGIENIC 3-A, Ø 100 mm Stainless steel, M16 x 140 mm, EPDM
Discover the TEKNO-HYGIENIC 3-A leveling foot, designed for optimal hygiene and stability. Made from stainless steel with an adjustable height and anti-slip EPDM base, it supports static loads up to 25,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€41.79*
|
| From 13 |
€40.88*
|
| From 41 |
€40.27*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 140 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
