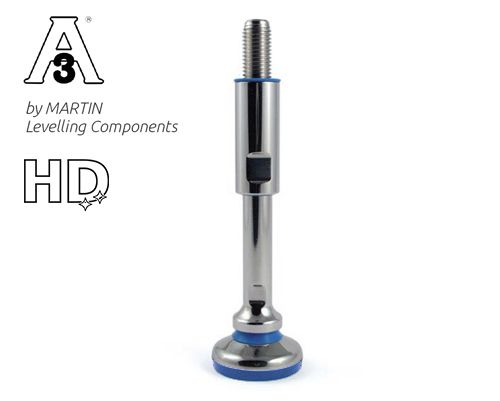

Levelling foot TEKNO-HYGIENIC 3-A, Ø 50 mm Stainless steel, M20 x 140 mm, EPDM
EAN
4061408128303
Type
45827610/3A
Optimize your installations with the TEKNO-HYGIENIC 3-A leveling foot. Crafted from stainless steel, it features a 50 mm diameter foot, 15° articulation, and 5,000 N static load capacity, ensuring stability and hygiene.
| Quantity | Price |
|---|---|
| From 1 |
€38.43*
|
| From 13 |
€37.60*
|
| From 41 |
€37.04*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 140 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

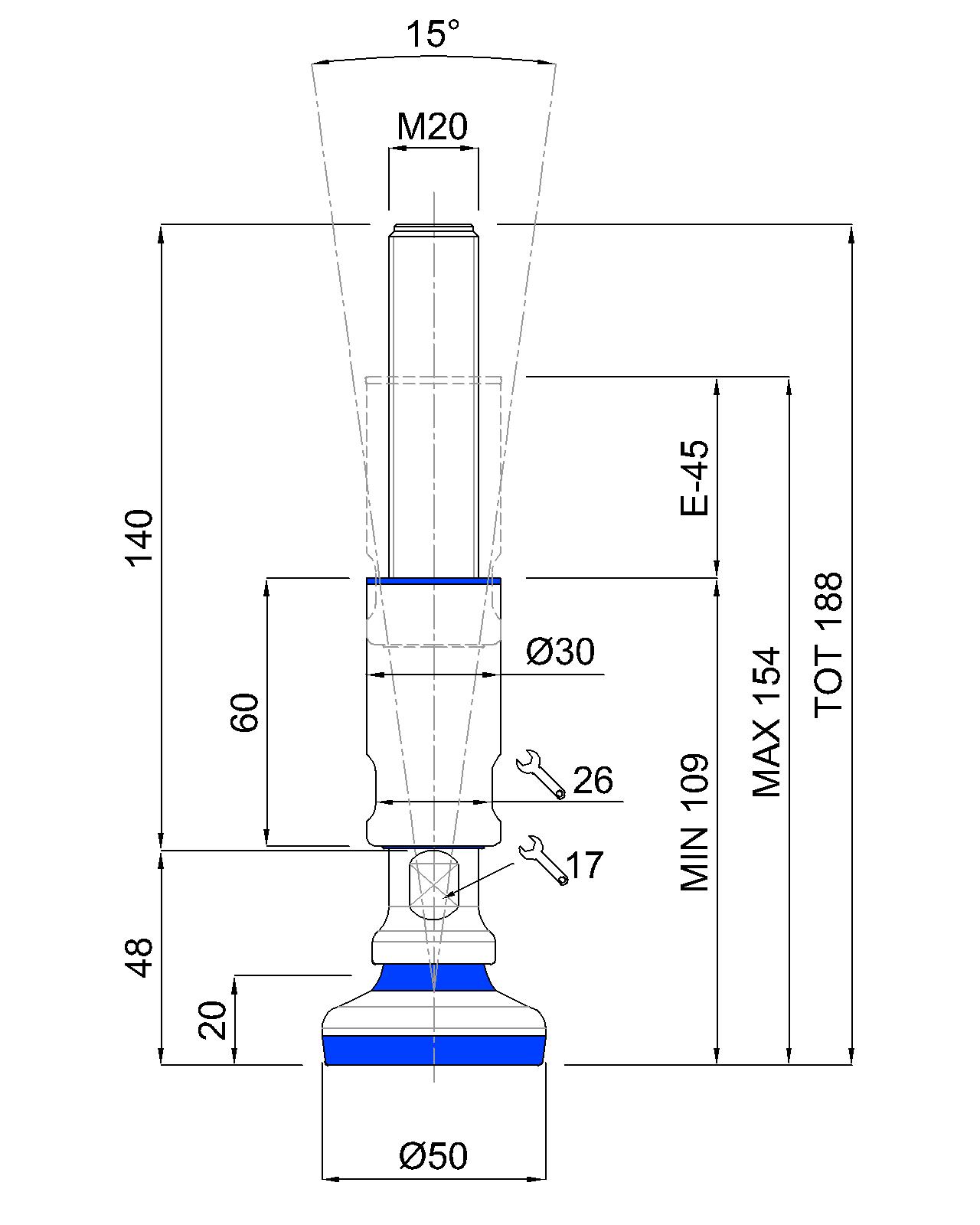

Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 50 mm Stainless steel, M20 x 140 mm, Stainlees steel, Total height 188 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Antislip EPDM blue, Static load 5.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
