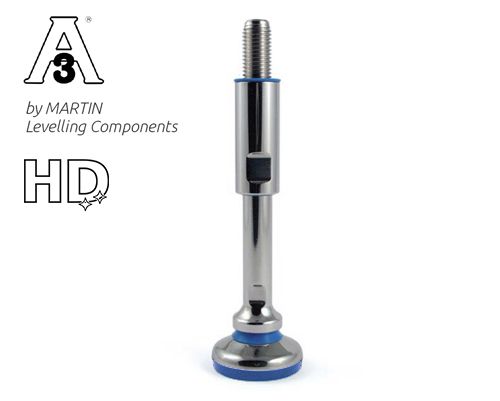

Levelling foot TEKNO-HYGIENIC 3-A, Ø 50 mm Stainless steel, M12 x 140 mm, EPDM
EAN
4061408128228
Type
45827600/3A
Ensure stability and compliance with the TEKNO-HYGIENIC 3-A levelling foot. Made from stainless steel with an EPDM anti-slip base, it offers a 15° adjustment, supporting static loads up to 5,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€36.47*
|
| From 13 |
€35.68*
|
| From 41 |
€35.15*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 41-50 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 140 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

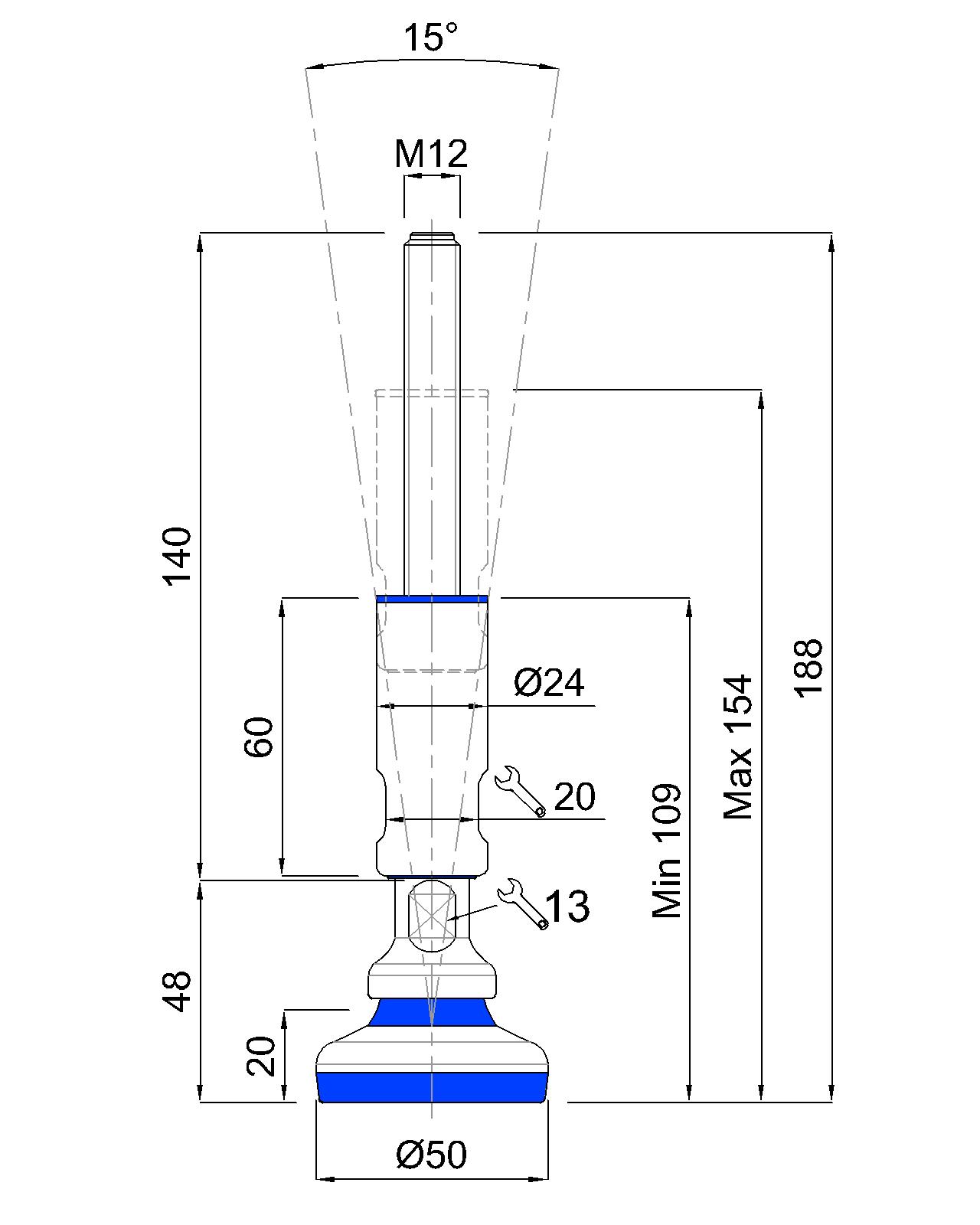

Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 50 mm Stainless steel, M12 x 140 mm, Stainlees steel, Total height 188 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Antislip EPDM blue, Static load 5.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
