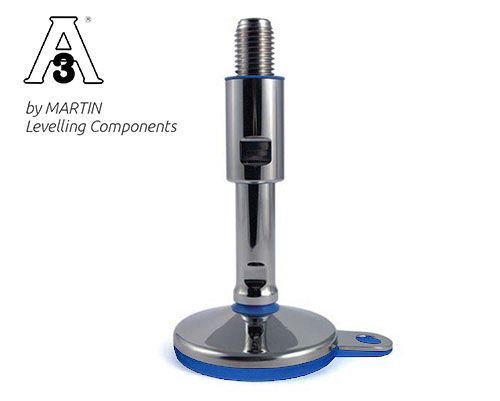

Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M16 x 140 mm, Lug, EPDM

EAN 4061408128211

Type 45827640F/3A

Introducing the TEKNO-HYGIENIC 3-A levelling foot: engineered for durability with stainless steel construction, 15° articulation, and a robust load capacity of 20,000 N, perfect for hygienic applications.

Element 1 of 3 (image) – Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M16 x 140 mm, Lug, EPDM

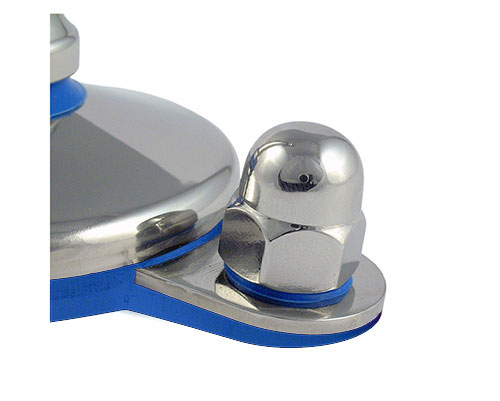

Element 2 of 3 (image) – Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M16 x 140 mm, Lug, EPDM

Element 3 of 3 (image) – Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M16 x 140 mm, Lug, EPDM

Robust stainless steel design ensures durability and resistance to harsh environments, suitable for industrial applications.
Hygienically certified according to 3-A Sanitary Standards, making it ideal for food and pharmaceutical industries.
Adjustable height ranging from 140 mm with an articulated screw providing a 15° tilt for perfect leveling in uneven surfaces.
Equipped with an EPDM blue non-slip base, providing exceptional grip and stability under static loads up to 20,000 N.
Flexible adaptation: compatible with footplate diameters ranging from 71 mm to 90 mm, ensuring versatile application.

Quantity	Price
From 1	€41.69*
From 13	€40.78*
From 41	€40.18*

Currently sold out, Refill time: 5 days

€41.69* / piece

Our payment methods:

Accessories

Hygienic 3-A thread cover with blue silicone gasket, M16, polished

Type No.: 458BO-M16L/3A

€17.51*

In Stock

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€5.87*

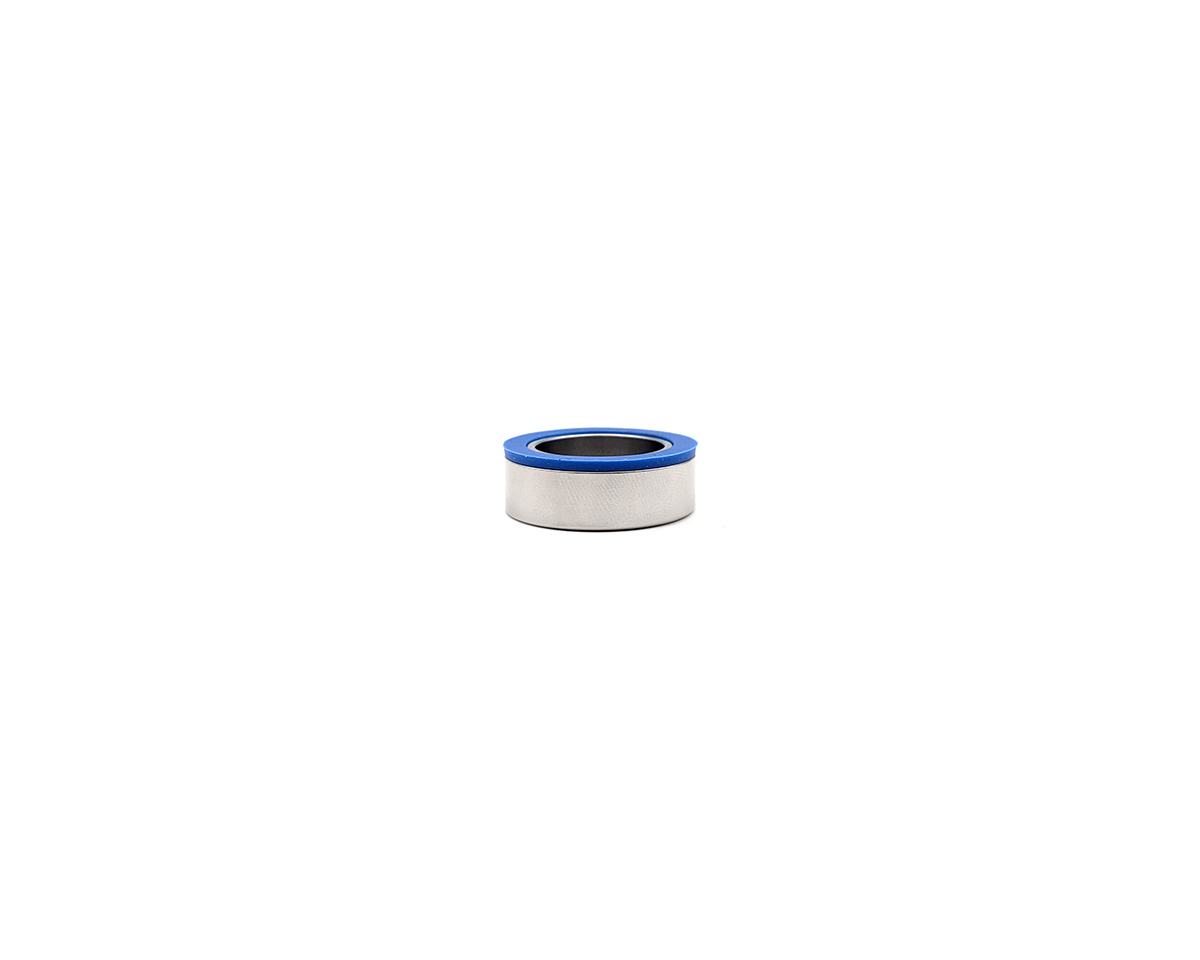

Spacer nut 16 mm 3A

Type No.: 458PROL2410/F16/3A

€4.86*

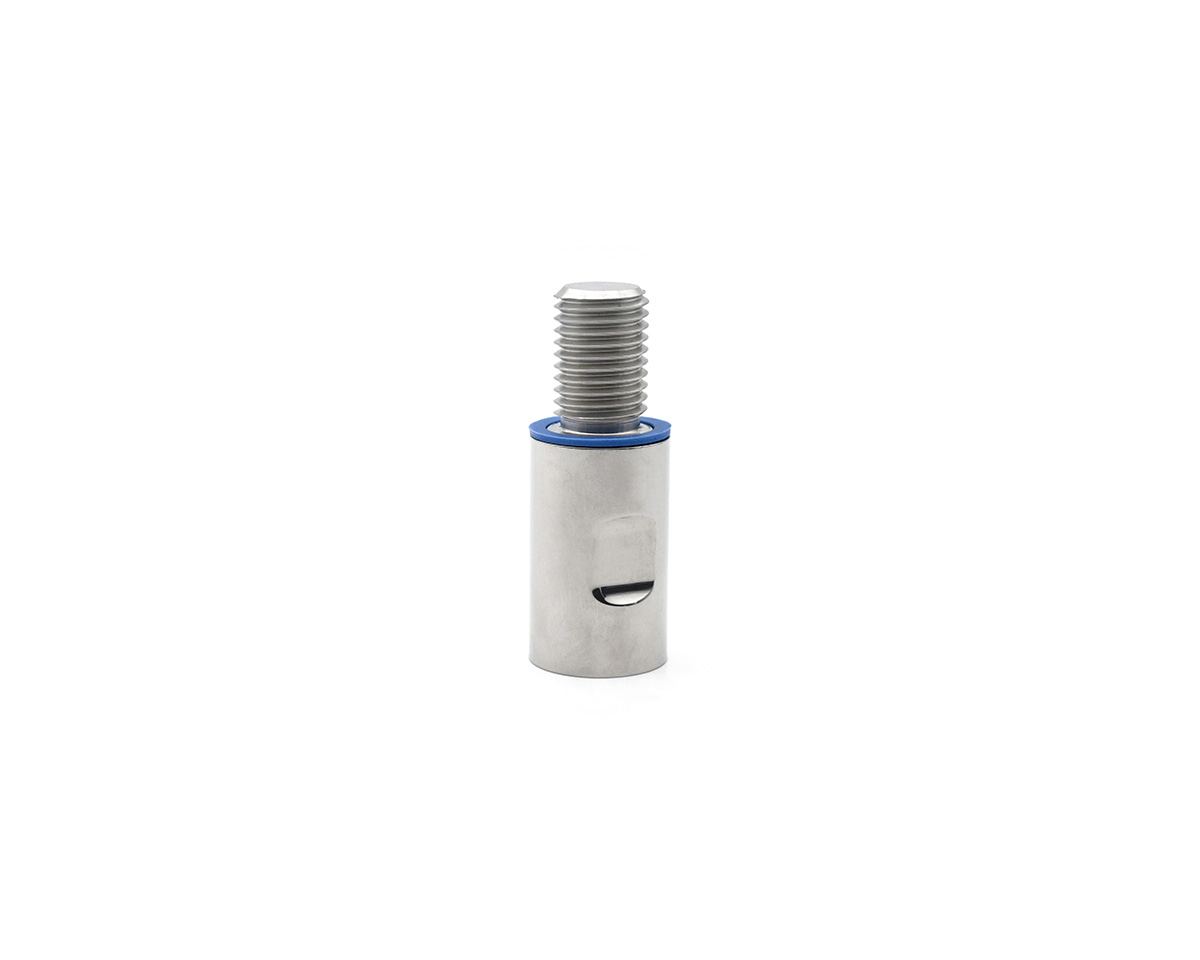

Spacer nut M16 x 40 3A

Type No.: 458PROL2450/3A

€18.90*

Product properties

Footplate material:	Stainless steel
Anti-slip:	EPDM blue
Ø range base plate (mm):	71-90
Material spindle:	Stainless steel
Ø spindle (mm):	16
Spindle length (mm):	140
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M16 x 140 mm, Stainlees steel, Total height 193 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Lug Ø 15 mm, Antislip EPDM blue, Static load 20.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
