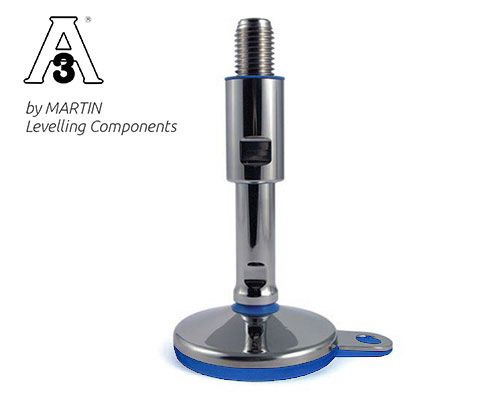

Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M12 x 140 mm, Lug, EPDM
EAN
4061408128174
Type
45827620F/3A
Discover the TEKNO-HYGIENIC 3-A levelling foot, featuring 60 mm stainless steel construction, a 15° articulation angle, and an impressive static load capacity of 10,000 N, ensuring stability and hygiene in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€39.85*
|
| From 13 |
€38.99*
|
| From 41 |
€38.41*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 140 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

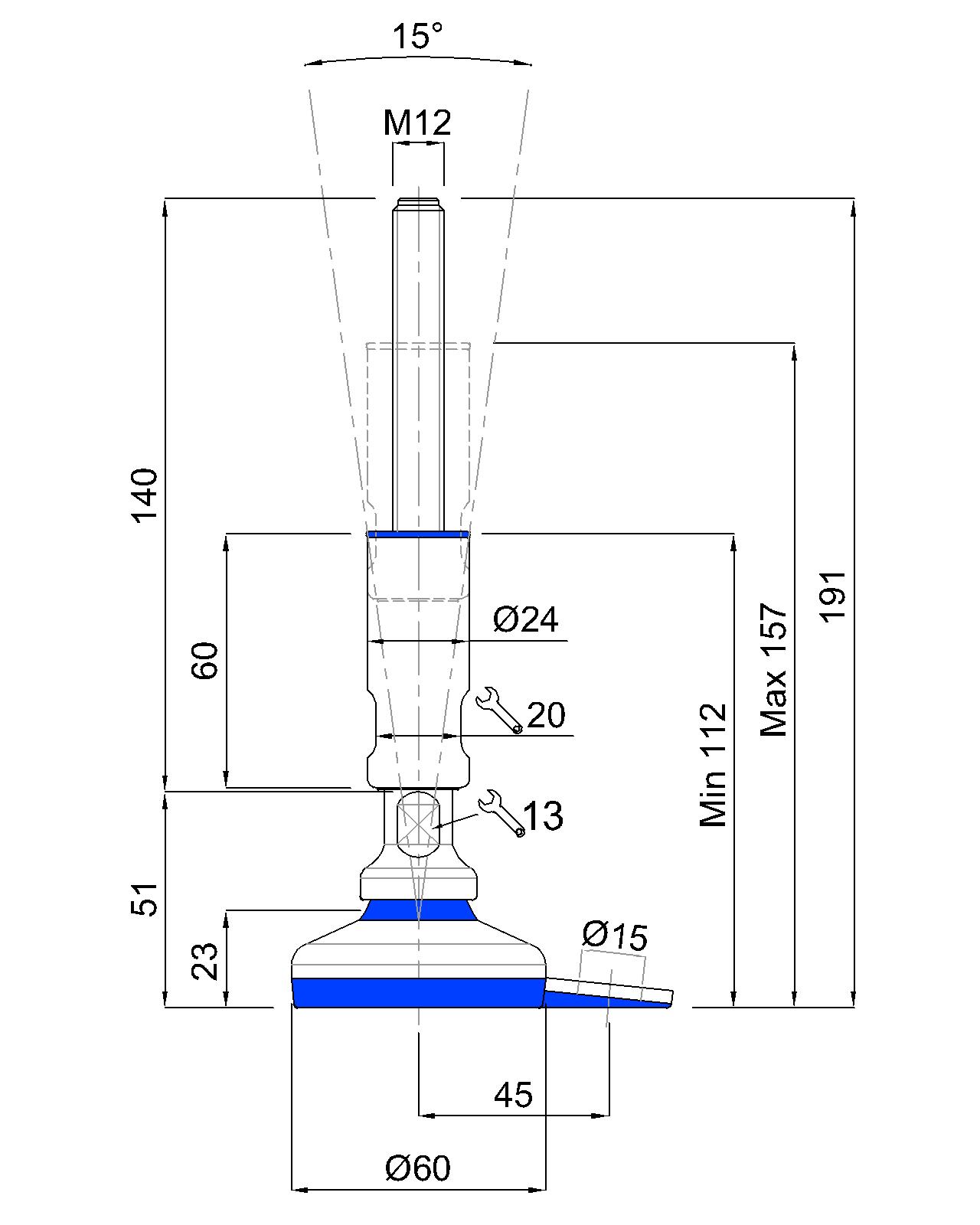

Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 60 mm Stainless steel, M12 x 140 mm, Stainlees steel, Total height 191 mm, Articulated screw 15°, Adjustment range 45 mm, Bushing 60 mm, Lug Ø 15 mm, Antislip EPDM blue, Static load 10.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
