Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M30 x 185 mm
EAN
4061408110742
Type
45827394/3A
Discover the TEKNO-HYGIENIC 3-A leveling foot, designed for optimal stability and hygiene. With its stainless steel construction, 15° articulation, and 80,000 N static load capacity, it’s perfect for demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€86.57*
|
| From 13 |
€84.69*
|
| From 41 |
€83.43*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 185 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |

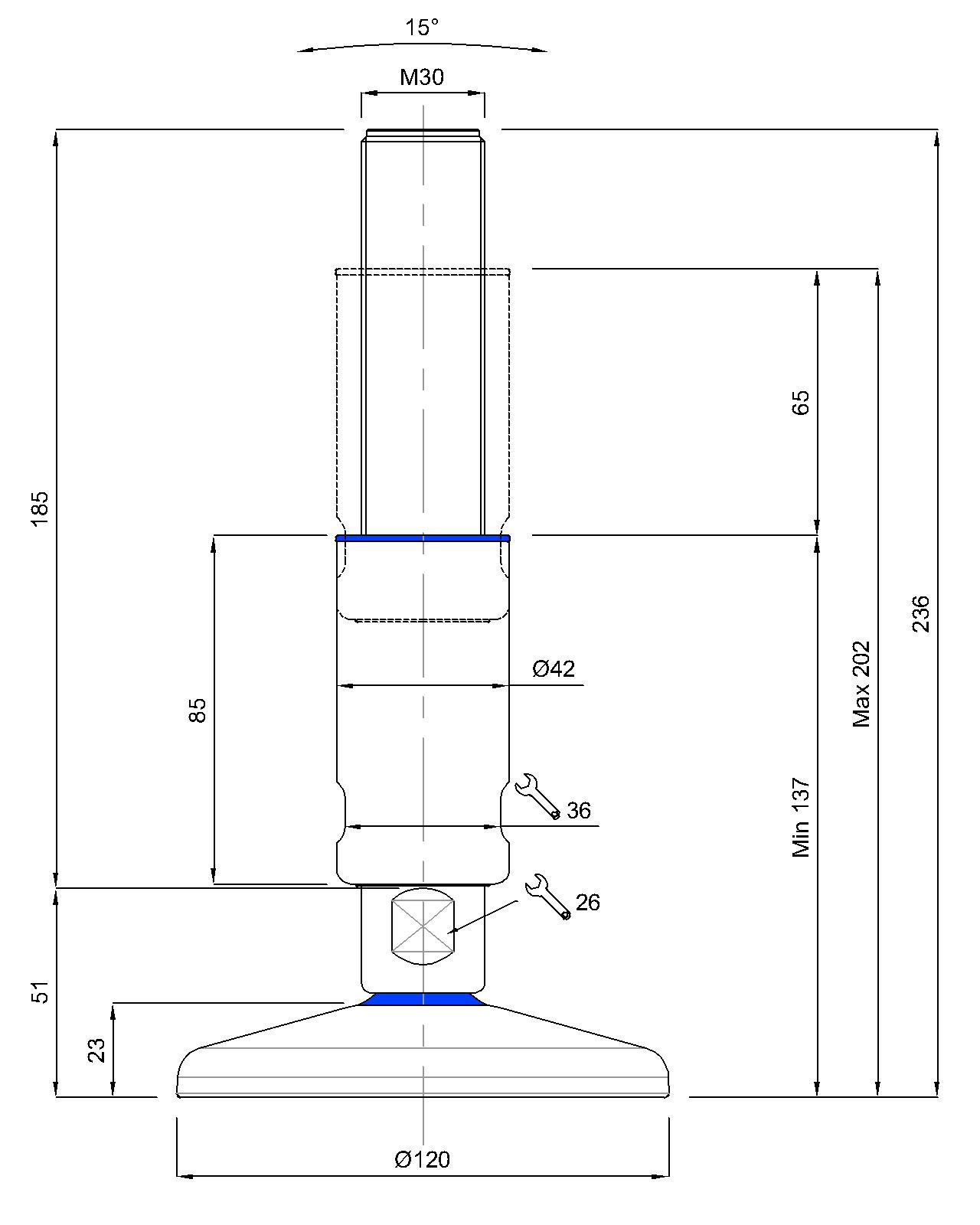

Technical drawing
Levelling foot TEKNO-HYGIENIC 3-A, Ø 120 mm Stainless steel, M30 x 185 mm, Stainlees steel, Total height 236 mm, Articulated screw 15°, Adjustment range 65 mm, Bushing 85 mm, Static load 80.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
