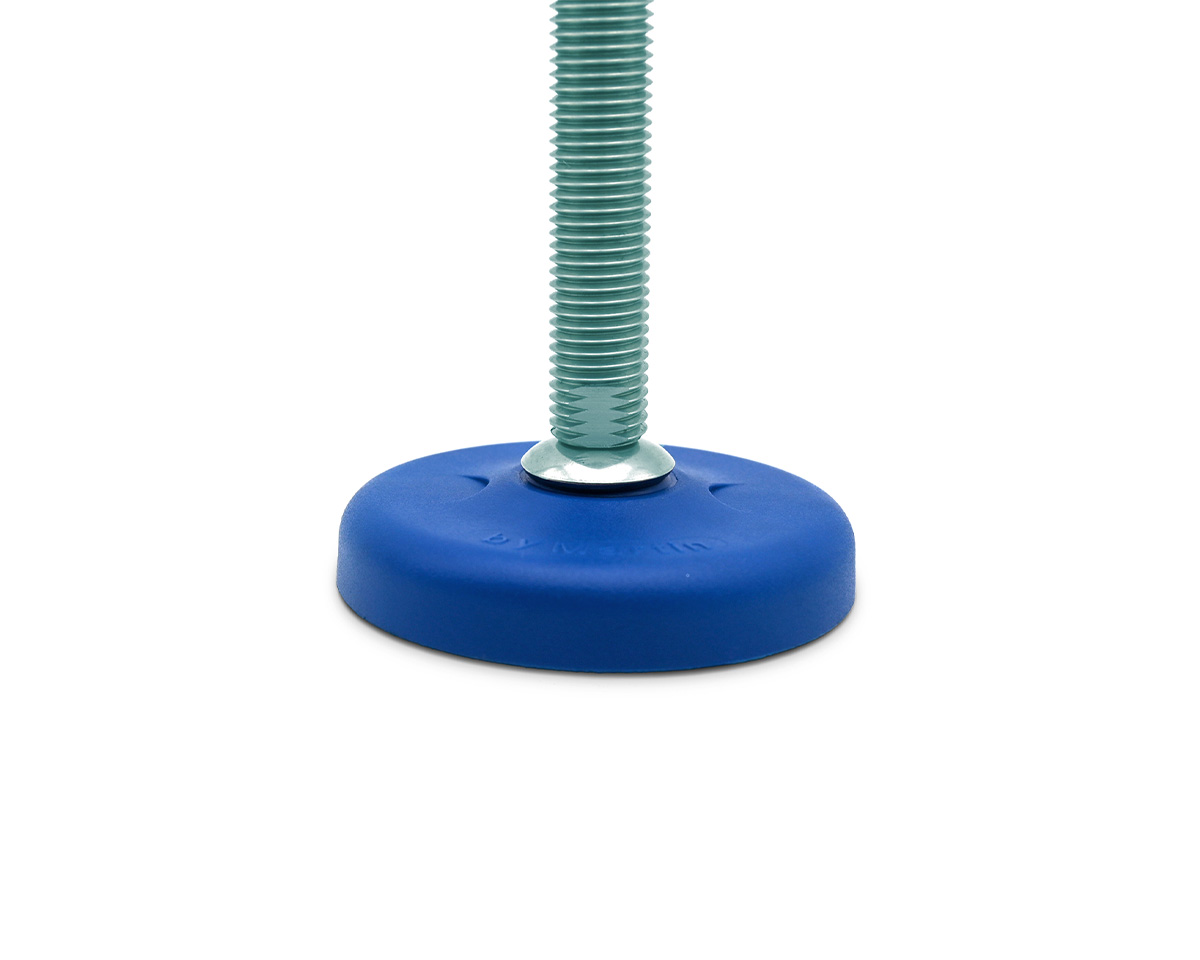

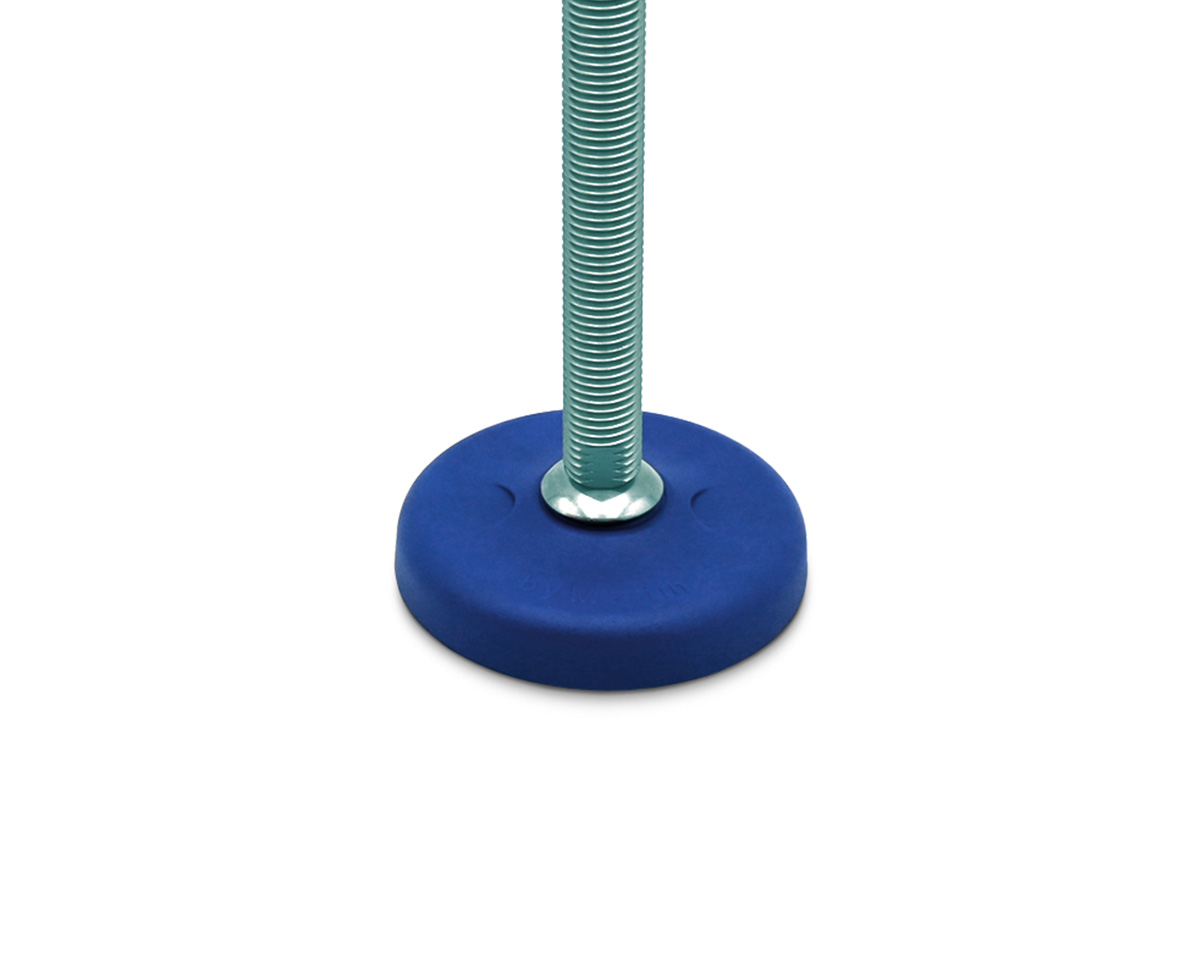

Levelling foot ECO16 PA blue, Ø 83 mm, M16 x 150 mm Steel, Drills
Enhance stability with the ECO16 levelling foot, featuring a durable polyamide base and galvanized steel spindle. Designed for precise adjustments, it supports static loads up to 20,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€4.89*
|
| From 5 |
€4.68*
|
| From 15 |
€4.03*
|
| From 50 |
€3.82*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic blue |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 150 |
| Balancing angle: | 16° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
