Levelling foot ECO16 PA Stainless steel, Ø 103 mm, M20 x 100 mm, NBR

4061408107162
45818277CI

Optimize your equipment stability with the ECO16 levelling foot. Featuring a robust stainless steel design, 30,000 N static load capacity, and adjustable 16° articulation for precision alignment.

  • Robust construction with a stainless steel spindle and polyamide foot plate for enhanced durability and corrosion resistance.
  • Large diameter of 103 mm provides superior stability, accommodating a static load capacity of up to 30,000 N.
  • Features an articulated screw with a 16° adjustment angle, allowing for precise leveling even on uneven surfaces.
  • Non-slip NBR black rubber coating on the foot ensures excellent grip and prevents movement under load.
  • Compatible with a variety of applications thanks to its adjustable spindle length of 100 mm and diameter of 20 mm.
Quantity Price
From 1
€15.13*
From 5
€13.52*
From 15
€12.08*
From 50
€11.83*

Currently sold out, Refill time: 5 days

€15.13* / piece
Our payment methods:

Product properties


Footplate material: Plastic VA Cover
Anti-slip: NBR black
Ø range base plate (mm): 91-110
Material spindle: Stainless steel
Ø spindle (mm): 20
Spindle length (mm): 100
Balancing angle: 16°

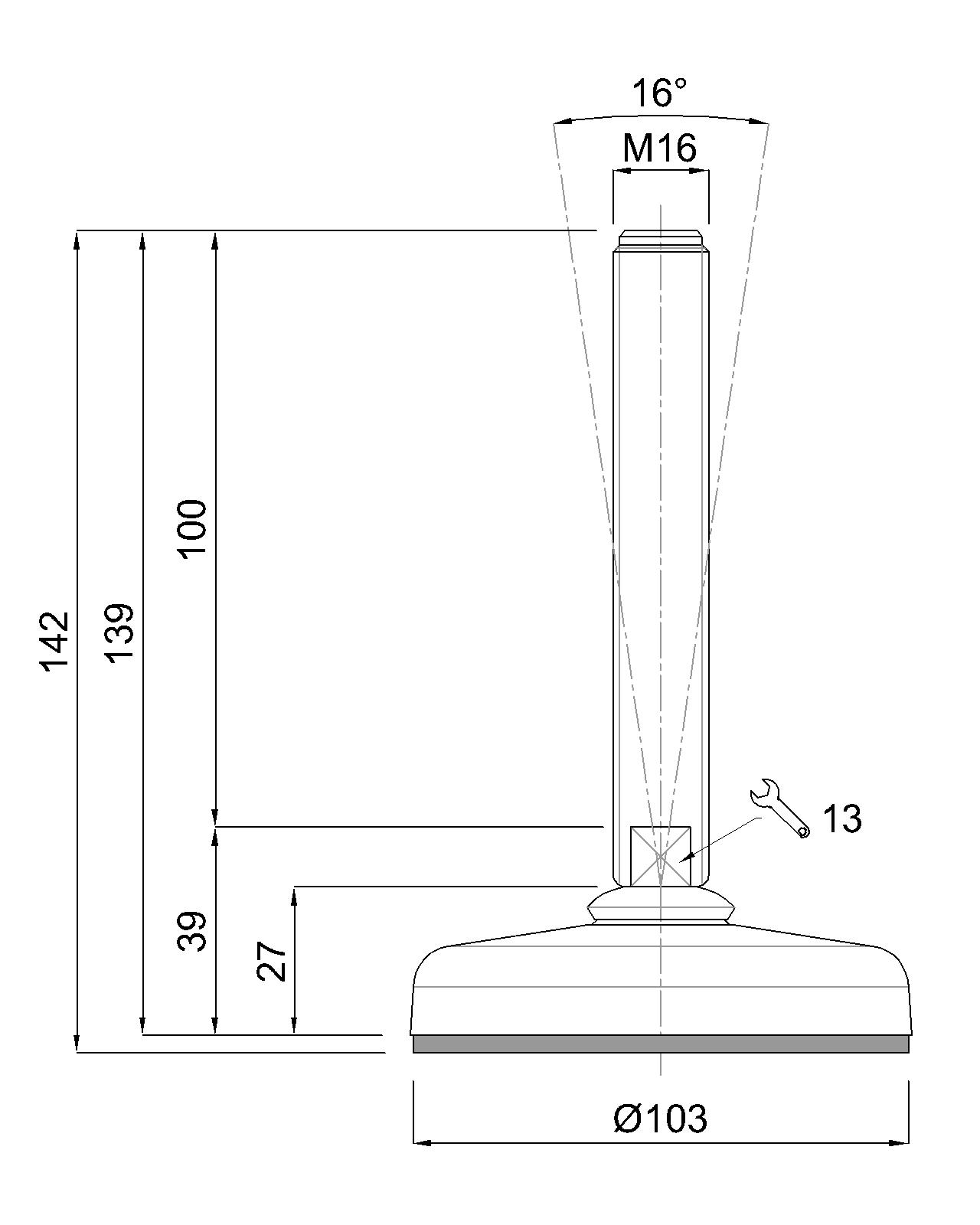

Levelling foot ECO16 Polyamide Stainless steel, Ø 103 mm, M20 x 100 mm Stainlees steel, Total height 142 mm, Articulated screw 16°, Antislip NBR black, Static load 30.000 N
