Levelling foot ECO16 PA Stainless steel, Ø 103 mm, M16 x 150 mm, NBR
Discover the ECO16 leveling foot designed for optimal stability and support. With a robust stainless steel spindle, anti-slip NBR feature, and a static load capacity of 30,000 N, it ensures reliable performance for your engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€14.78*
|
| From 5 |
€13.20*
|
| From 15 |
€11.79*
|
| From 50 |
€11.55*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic VA Cover |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 150 |
| Balancing angle: | 16° |

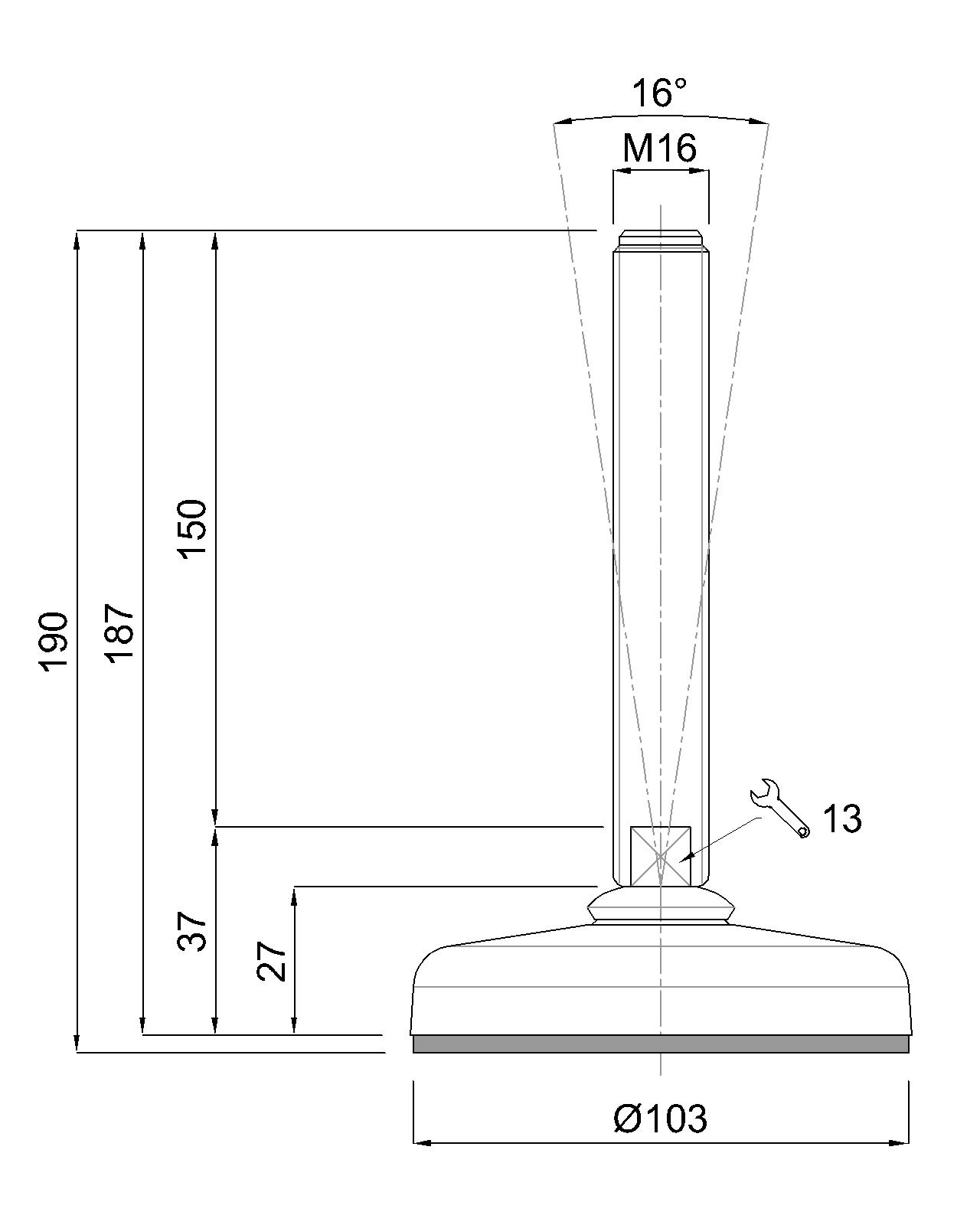

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
