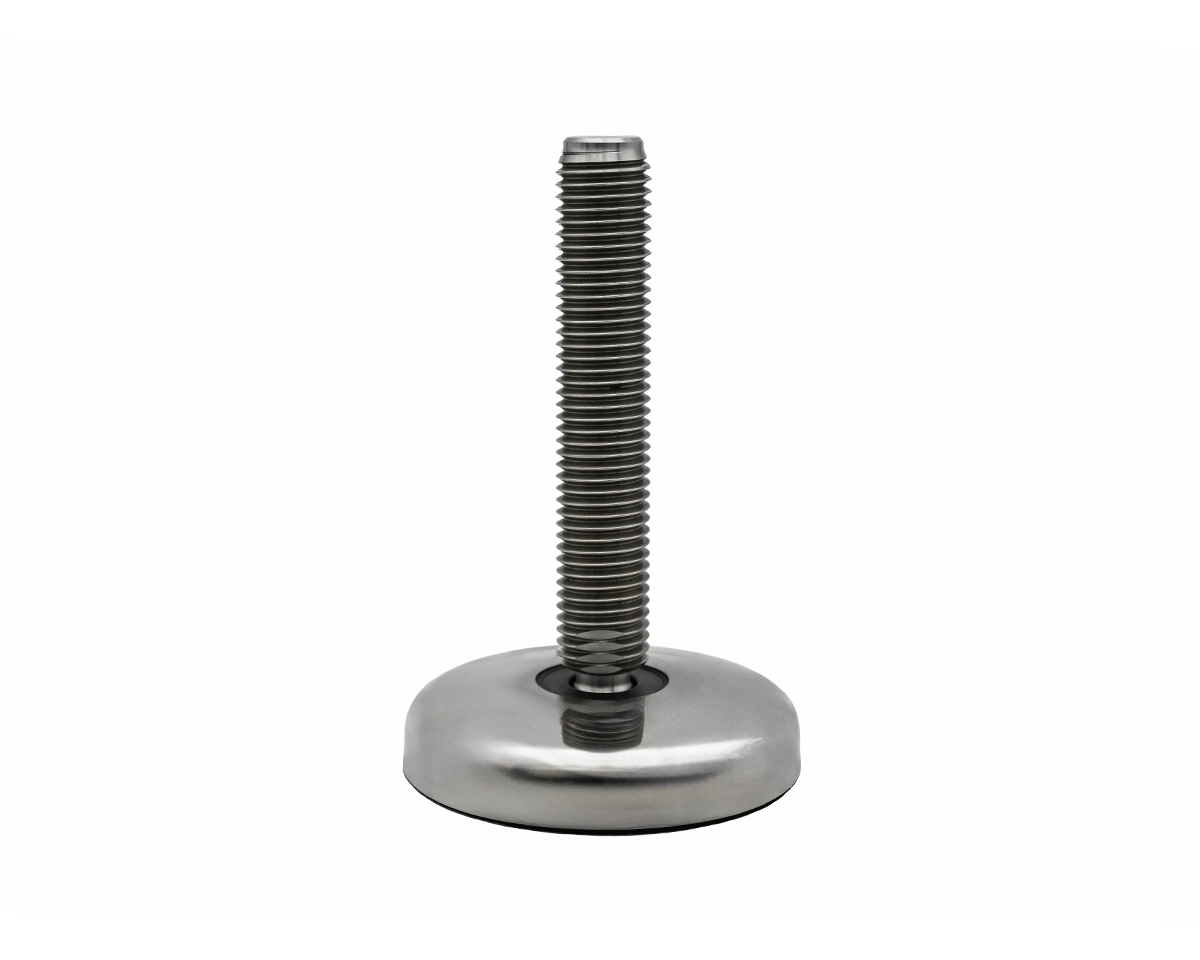

Levelling foot ECO30 PA Stainless steel, Ø 123 mm, M20 x 150 mm, NBR
Introducing the ECO30 Levelling Foot: engineered for precision with a static load capacity of 20,000 N. Crafted from polyamide and stainless steel, it features a 30° articulated screw for optimal stability and NBR anti-slip properties.
| Quantity | Price |
|---|---|
| From 1 |
€16.96*
|
| From 5 |
€15.15*
|
| From 15 |
€13.53*
|
| From 50 |
€13.26*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic VA Cover |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 30° |

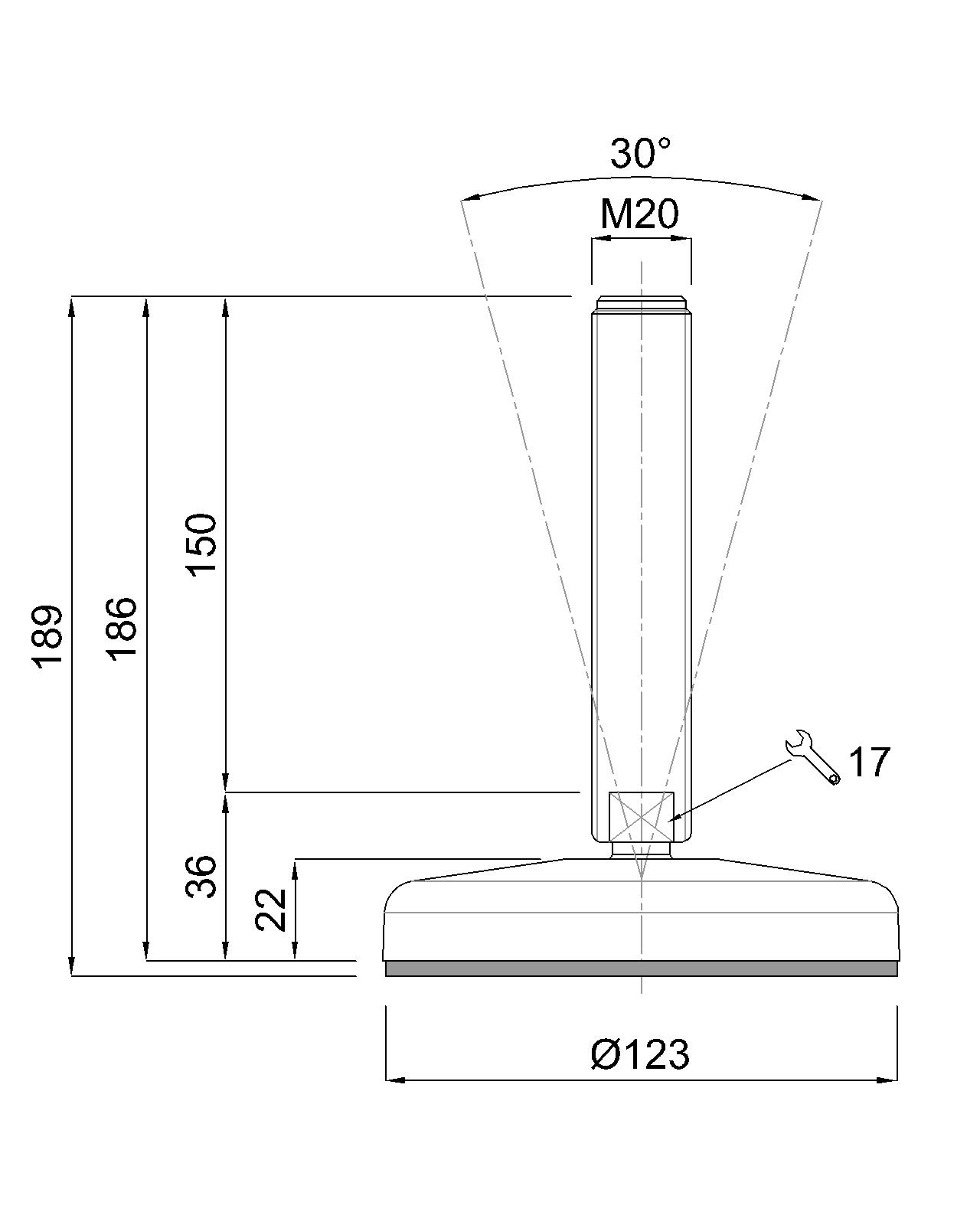

Technical drawing
