Levelling foot ECO30 PA Stainless steel, Ø 83 mm, M12 x 100 mm, NBR
Optimize your setup with the ECO30 Levelling Foot, featuring durable stainless steel and polyamide construction. With a static load capacity of 13,000 N and a 30° articulated screw, it ensures stability and support for various applications.
| Quantity | Price |
|---|---|
| From 1 |
€10.10*
|
| From 5 |
€9.02*
|
| From 15 |
€8.06*
|
| From 50 |
€7.89*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic VA Cover |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |

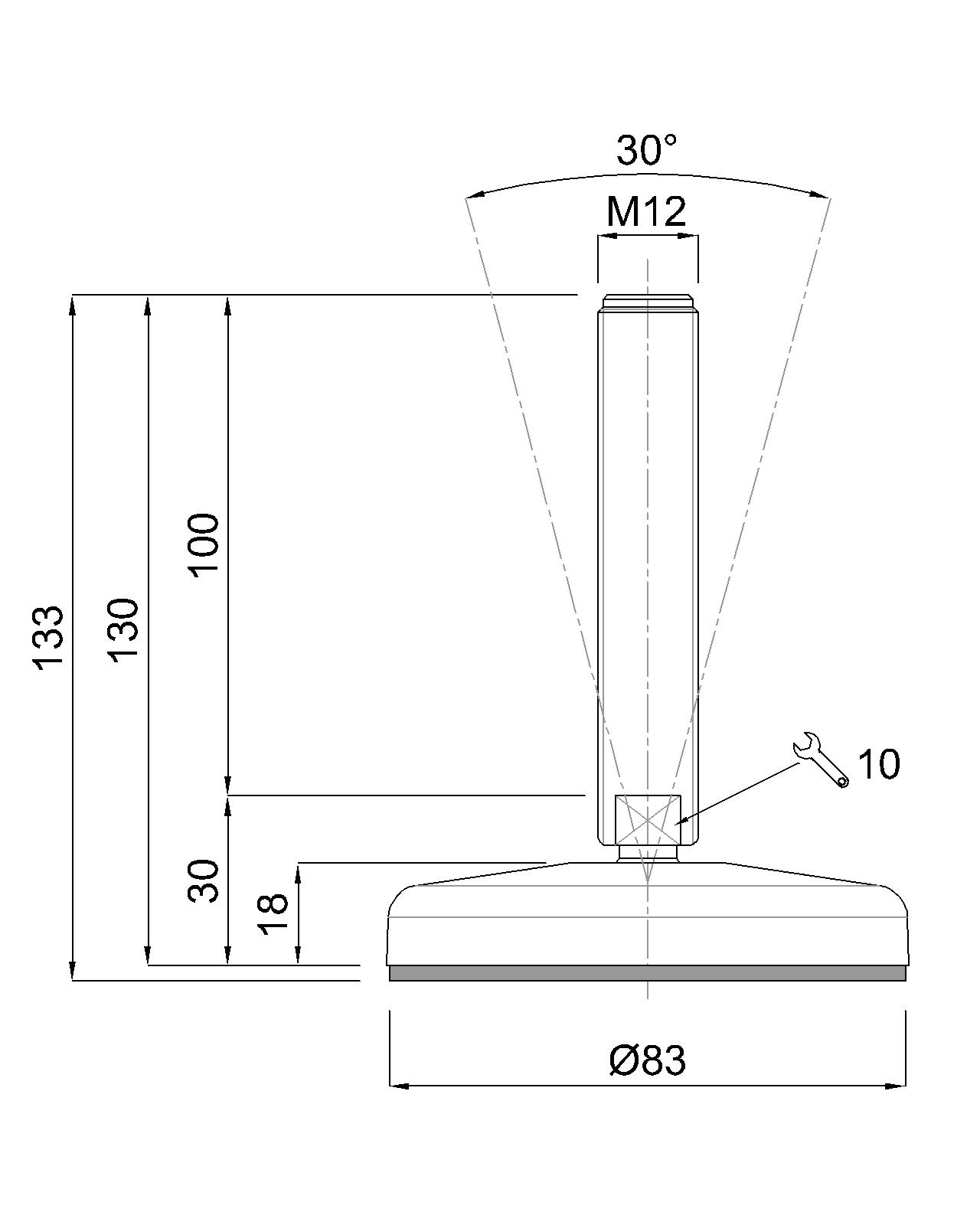

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
