Levelling foot ECO30 PA Stainless steel, Ø 83 mm, M10 x 50 mm, NBR
Optimize your installations with the ECO30 Levelling Foot. Made from durable stainless steel and polyamide, it offers adjustable support up to 10,000 N, featuring a 30° articulated screw and non-slip NBR rubber for maximum stability.
| Quantity | Price |
|---|---|
| From 1 |
€9.44*
|
| From 5 |
€8.43*
|
| From 15 |
€7.53*
|
| From 50 |
€7.38*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic VA Cover |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 50 |
| Balancing angle: | 30° |

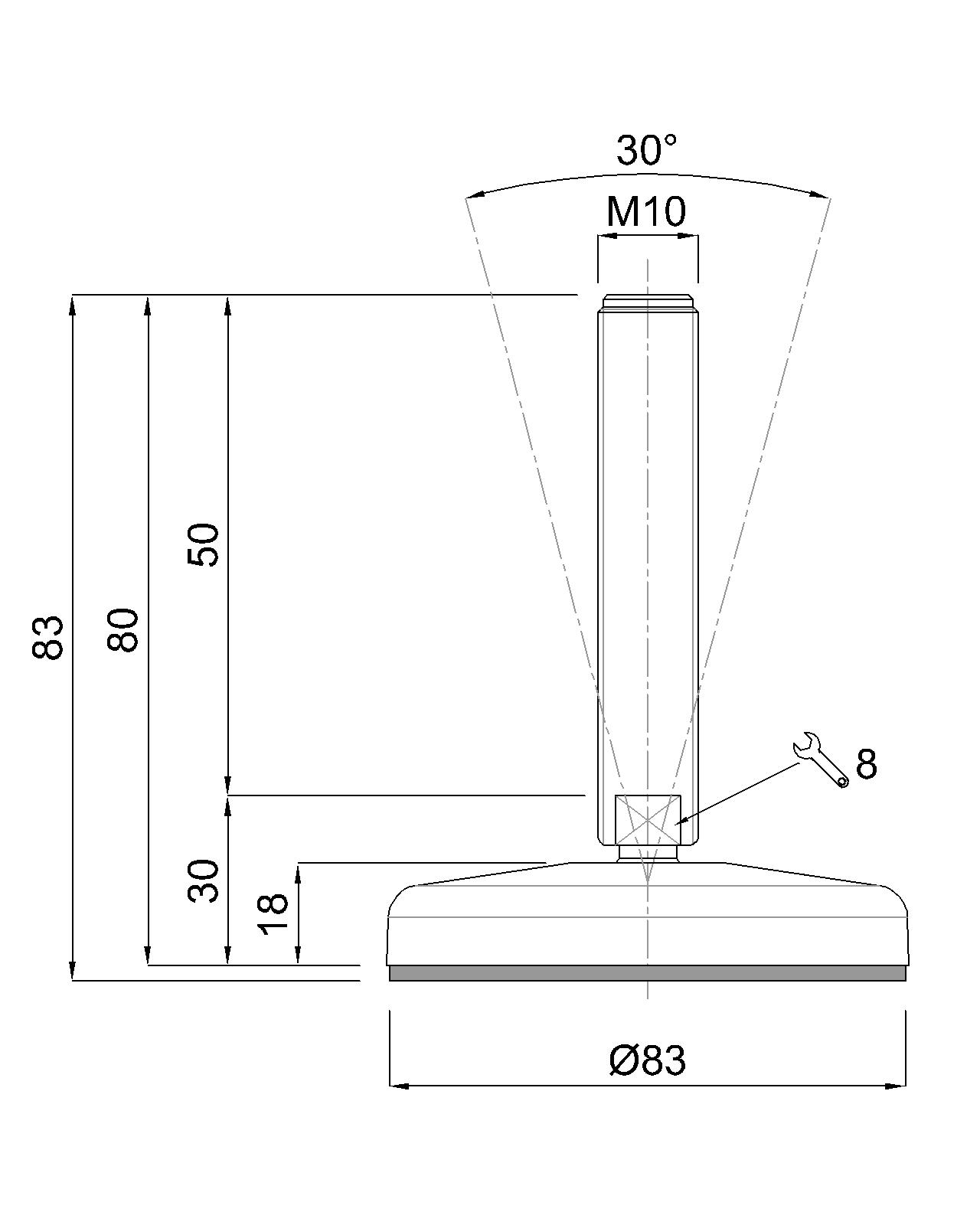

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
