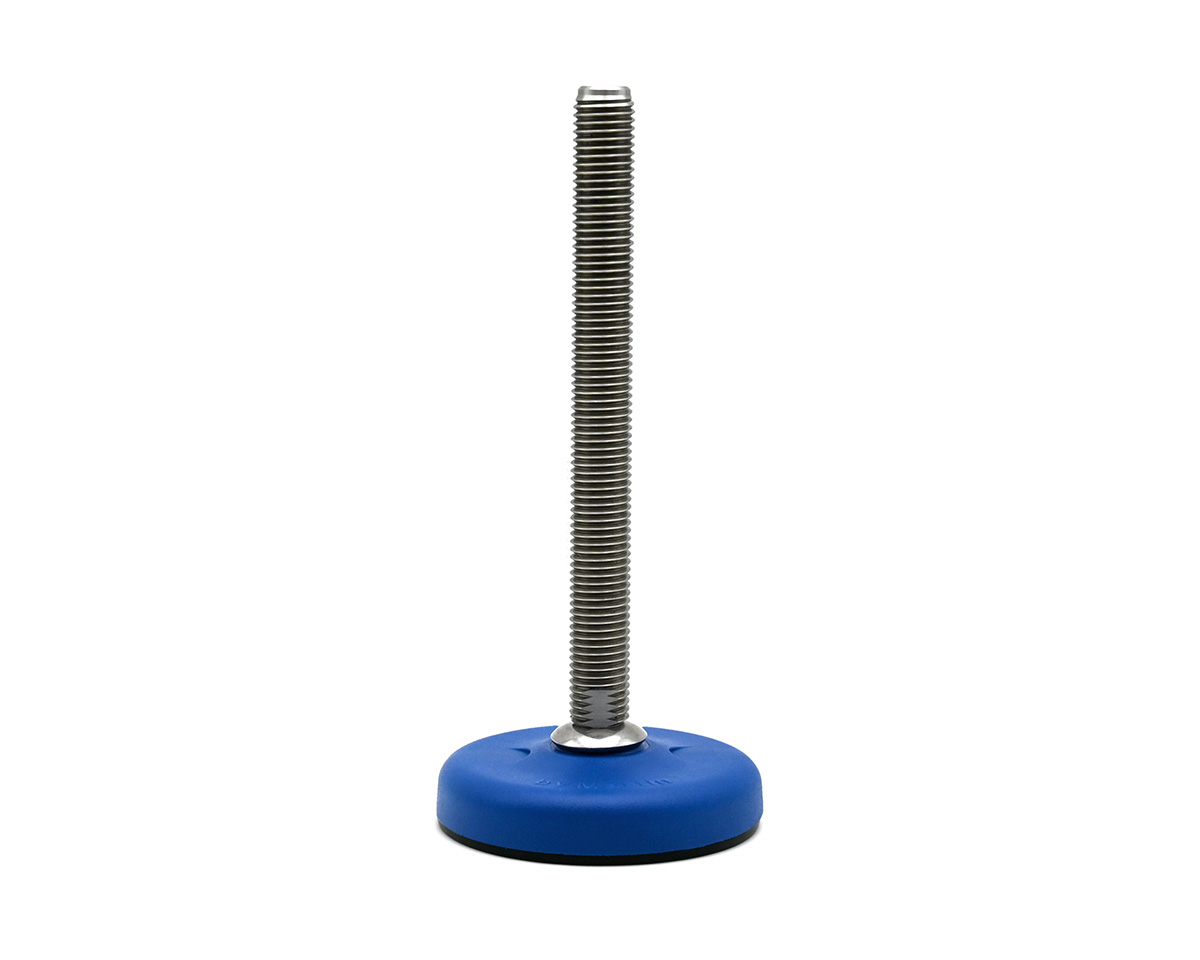

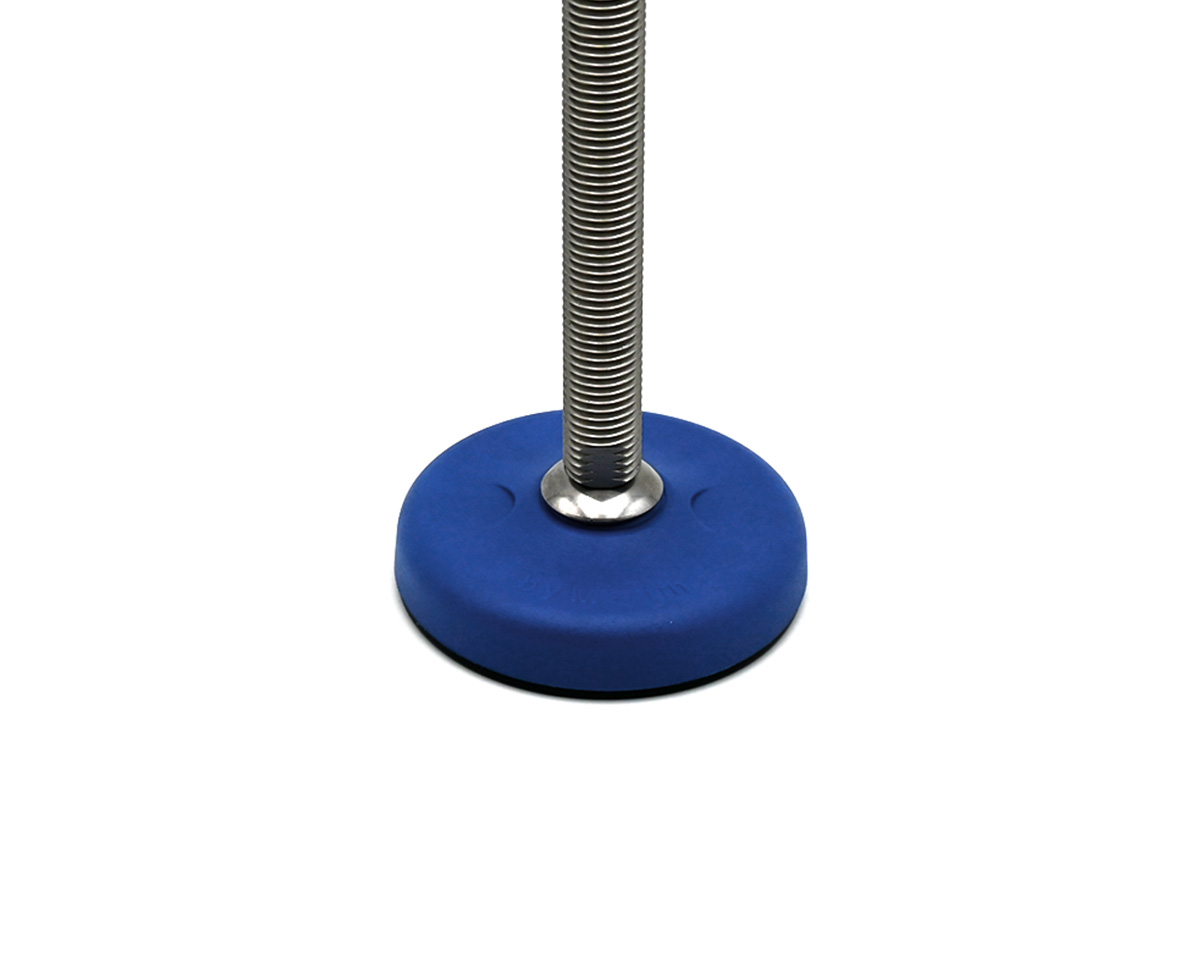

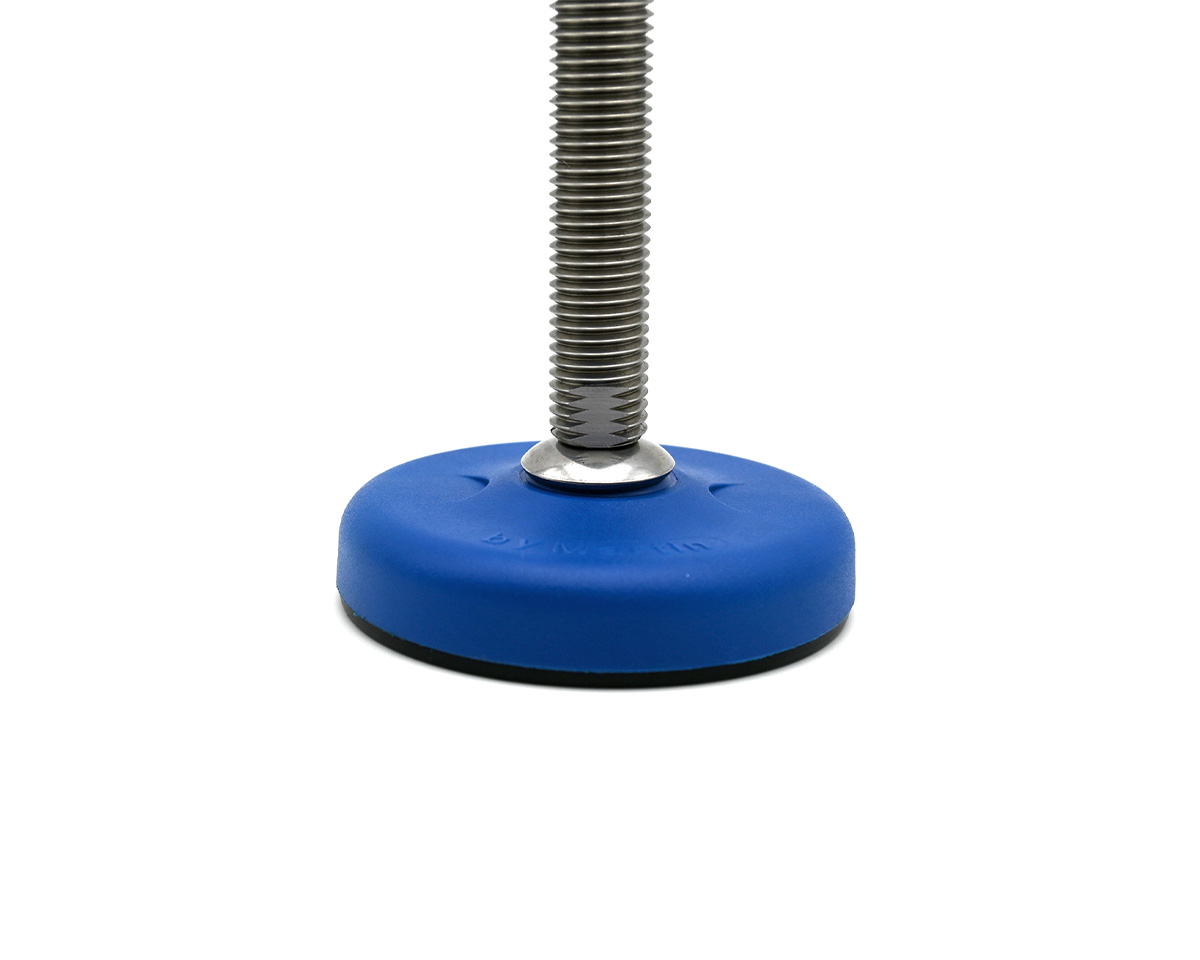

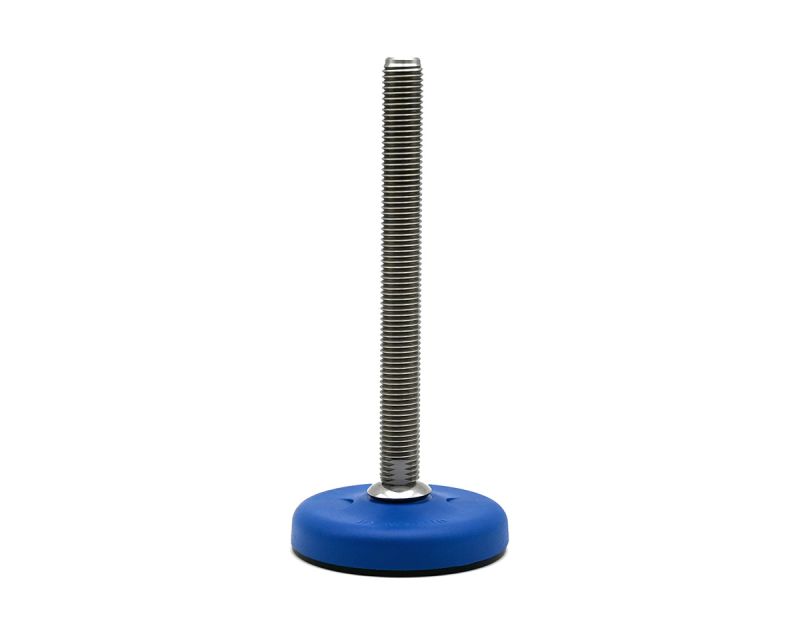

Levelling foot ECO16 PA blue, Ø 103 mm, M16 x 100 mm Stainless steel, Drills, NBR
Discover the ECO16 Levelling Foot: engineered for stability with a 103 mm diameter polyamide base and stainless steel spindle. Capable of supporting static loads up to 30,000 N, its articulated screw accommodates a 16° angle for precise alignment.
| Quantity | Price |
|---|---|
| From 1 |
€8.67*
|
| From 5 |
€7.74*
|
| From 15 |
€6.92*
|
| From 50 |
€6.78*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic blue |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 16° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
