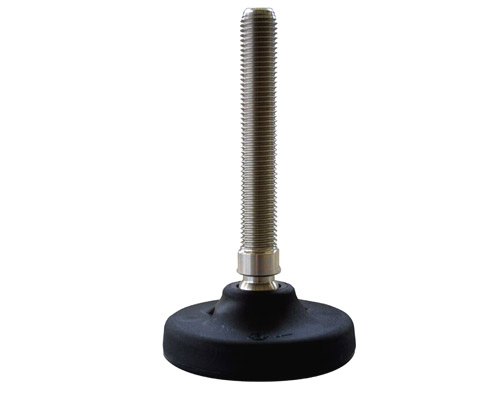

Levelling foot PA, Ø 123 mm, M20 x 100 mm Stainless steel, Drills, NBR

EAN 4061408104987

Type 45810177/20

Optimize your equipment's stability with our Levelling Foot PA. Featuring a robust stainless steel spindle, NBR antislip base, and a 30° articulation, it supports static loads up to 25,000 N.

Durable polyamide footplate with a diameter of 123 mm ensures long-lasting performance under varying conditions.
Stainless steel spindle (M20 x 100 mm) offers high resistance to corrosion and wear, enhancing the product's lifecycle.
Total height of 182 mm with 30° articulated screw allows for precise leveling adjustments in uneven surfaces.
Designed with two bore holes (Ø 12.5 mm) for secure ground mounting, ensuring stability during operation.
Anti-slip NBR black rubber base can withstand a static load of 25,000 N, providing maximum stability and safety.

Quantity	Price
From 1	€14.31*
From 5	€12.78*
From 15	€11.42*
From 50	€11.19*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€14.31* / piece

Our payment methods:

Accessories

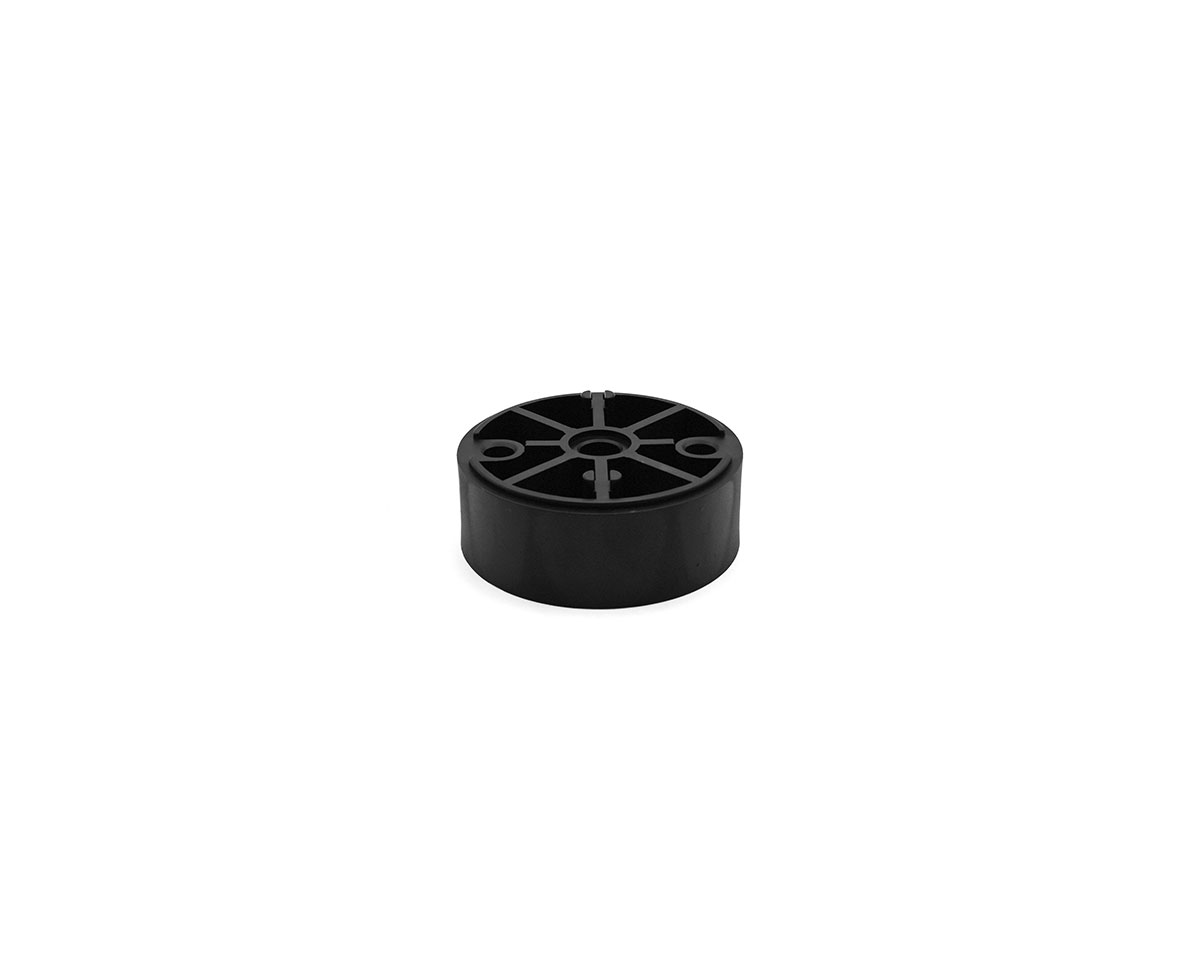

Plastic levelling foot height extension Ø 123, with anti-slip rubber pad

Type No.: 458PROLD123/G

From €6.93*

Product properties

Footplate material:	Plastic
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	20
Spindle length (mm):	100
Balancing angle:	30°
Anti-slip:	NBR black

Product description

Levelling foot Polyamide, Ø 123 mm, M20 x 100 mm, Stainlees steel, Total height 182 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 25.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
