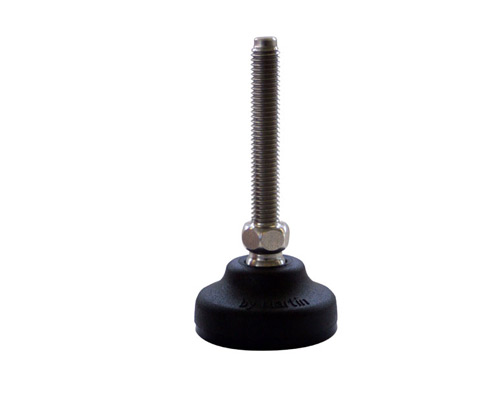

Levelling foot PA, Ø 40 mm, M10 x 50 mm Stainless steel

EAN 4061408016587

Type 45810010

Optimize your equipment stability with our 40 mm Polyamide leveling foot. Featuring a robust stainless steel spindle and a static load capacity of 10,000 N, it ensures reliable support and adjustable angles up to 30°.

Robust design with a static load capacity of up to 10,000 N, ensuring long-lasting stability in demanding applications.
Constructed from high-quality polyamide foot and stainless steel spindle for enhanced durability and resistance to corrosion.
Adjustable leveling foot features a versatile articulation angle of 30°, allowing for precise alignment on uneven surfaces.
Diameter of the foot plate is 40 mm, providing a broad contact area for improved load distribution.
Suitable for M10 threaded applications, with a spindle length of 50 mm for optimal height adjustment capabilities.

Quantity	Price
From 1	€4.61*
From 5	€4.12*
From 15	€3.68*
From 50	€3.60*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€4.61* / piece

Our payment methods:

Accessories

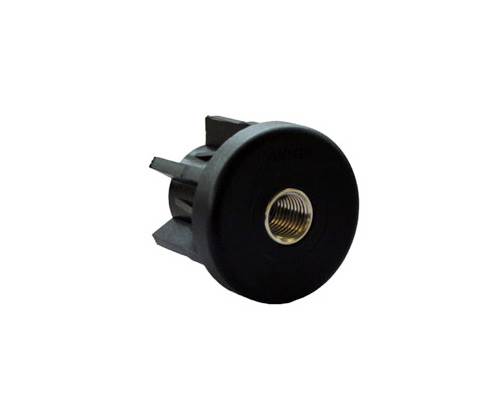

Round plug polyamide Ø 30x1, M10, stainless steel insert

Type No.: 45817000I

From €4.85*

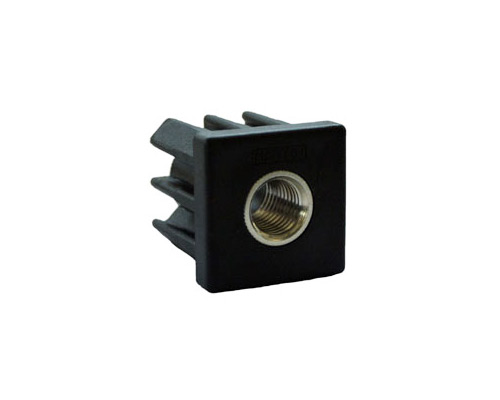

Square plug polyamide 40x40, M10, stainless steel insert

Type No.: 45817043I

From €5.21*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	31-40
Vibration damping:	No
Material spindle:	Stainless steel
Ø spindle (mm):	10
Spindle length (mm):	50
Balancing angle:	30°
Hygiene:	No

Product description

Levelling foot Polyamide, Ø 40 mm, M10 x 50 mm, Stainlees steel, Total height 77 mm, Articulated screw 30°, Static load 10.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
