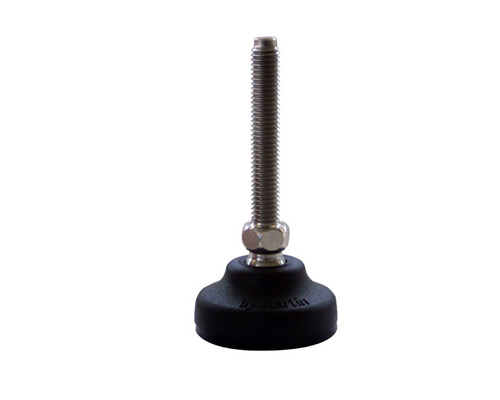

Levelling foot PA, Ø 40 mm, M8 x 100 mm Stainless steel

EAN 4061408016556

Type 45810006

Ensure stability in your applications with our leveling foot made of durable polyamide and stainless steel. Designed for static loads up to 10,000 N, featuring a 30° articulated screw for optimal adjustment.

Made of durable Polyamide, ensuring high resistance to wear and excellent mechanical strength.
Features a stainless steel spindle with a diameter of 8 mm, providing superior corrosion resistance.
Total height of 127 mm allows for versatile applications in uneven surfaces.
Articulated screw design accommodates a tilt angle of 30°, enhancing stability on sloped or inclined surfaces.
Capable of supporting a static load of up to 10,000 N, making it suitable for heavy-duty applications.

Quantity	Price
From 1	€6.77*
From 5	€6.05*
From 15	€5.40*
From 50	€5.29*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€6.77* / piece

Our payment methods:

Accessories

Square plug polyamide 40 x 40, M8, nickel-plated brass insert

Type No.: 45817043/M8

From €2.74*

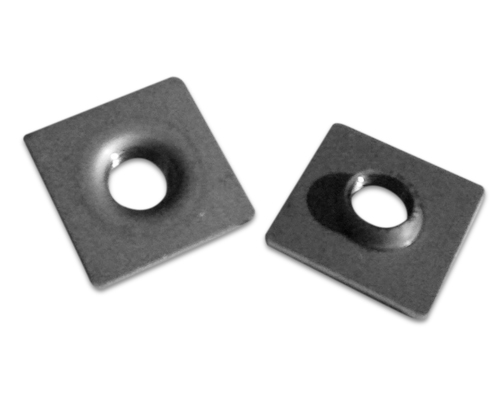

Welding plate SS M8, 40 x 40

Type No.: 458PI17497

From €2.69*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	31-40
Vibration damping:	no
Material spindle:	Stainless steel
Ø spindle (mm):	8
Spindle length (mm):	100
Balancing angle:	30°
Hygiene:	No

Product description

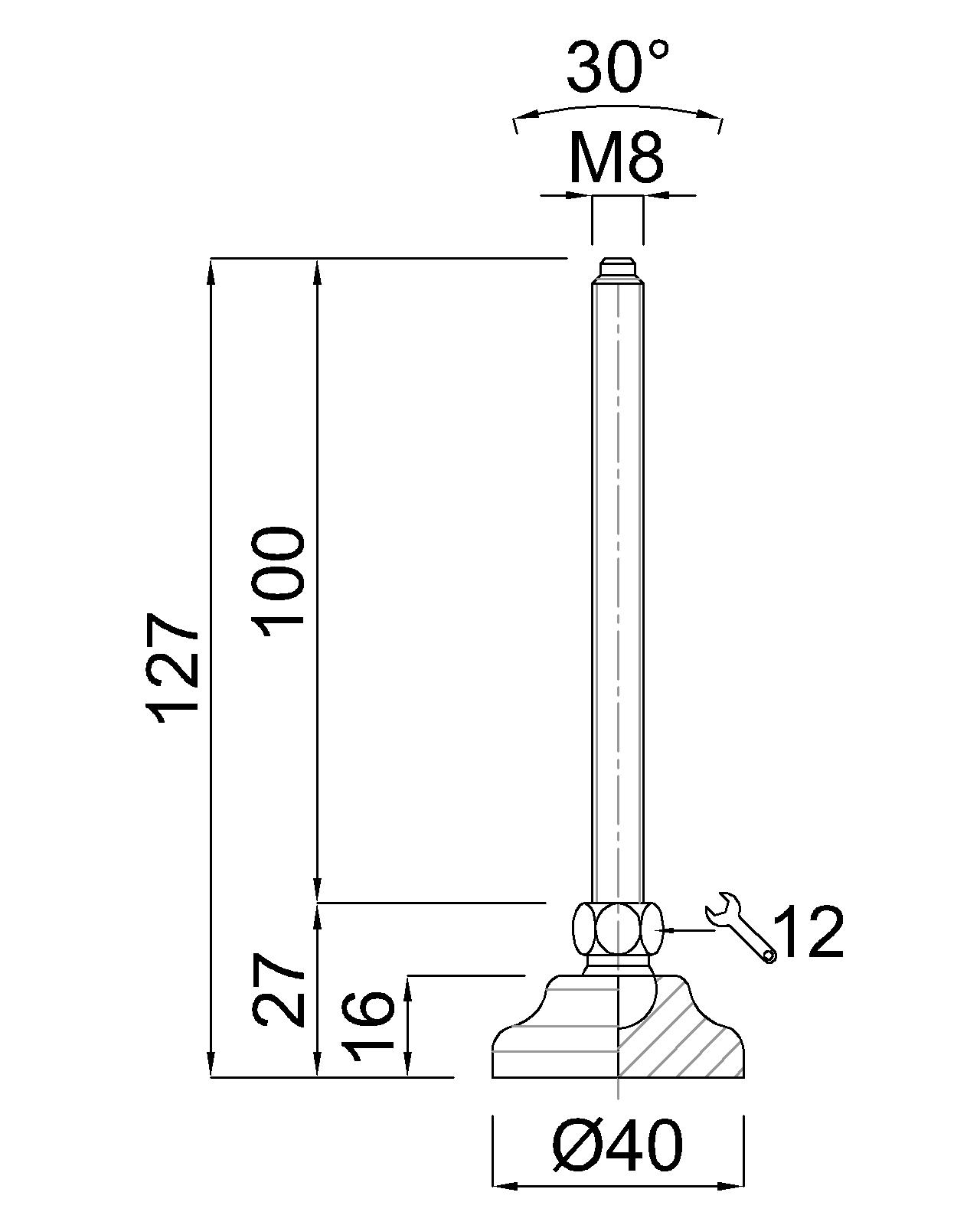

Levelling foot Polyamide, Ø 40 mm, M8 x 100 mm, Stainlees steel, Total height 127 mm, Articulated screw 30°, Static load 10.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
