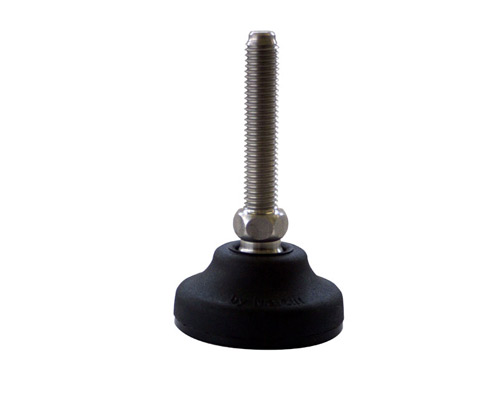

Levelling foot PA, Ø 50 mm, M10 x 25 mm Stainless steel, NBR
The durable PA leveling foot, featuring a 50 mm diameter and M10 x 25 mm stainless steel spindle, offers exceptional stability with a static load capacity of 11,000 N. Its black NBR anti-slip base and 30° articulation ensure precise adjustments in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€4.49*
|
| From 5 |
€4.02*
|
| From 15 |
€3.59*
|
| From 50 |
€3.51*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 25 |
| Balancing angle: | 30° |
| Hygiene: | No |

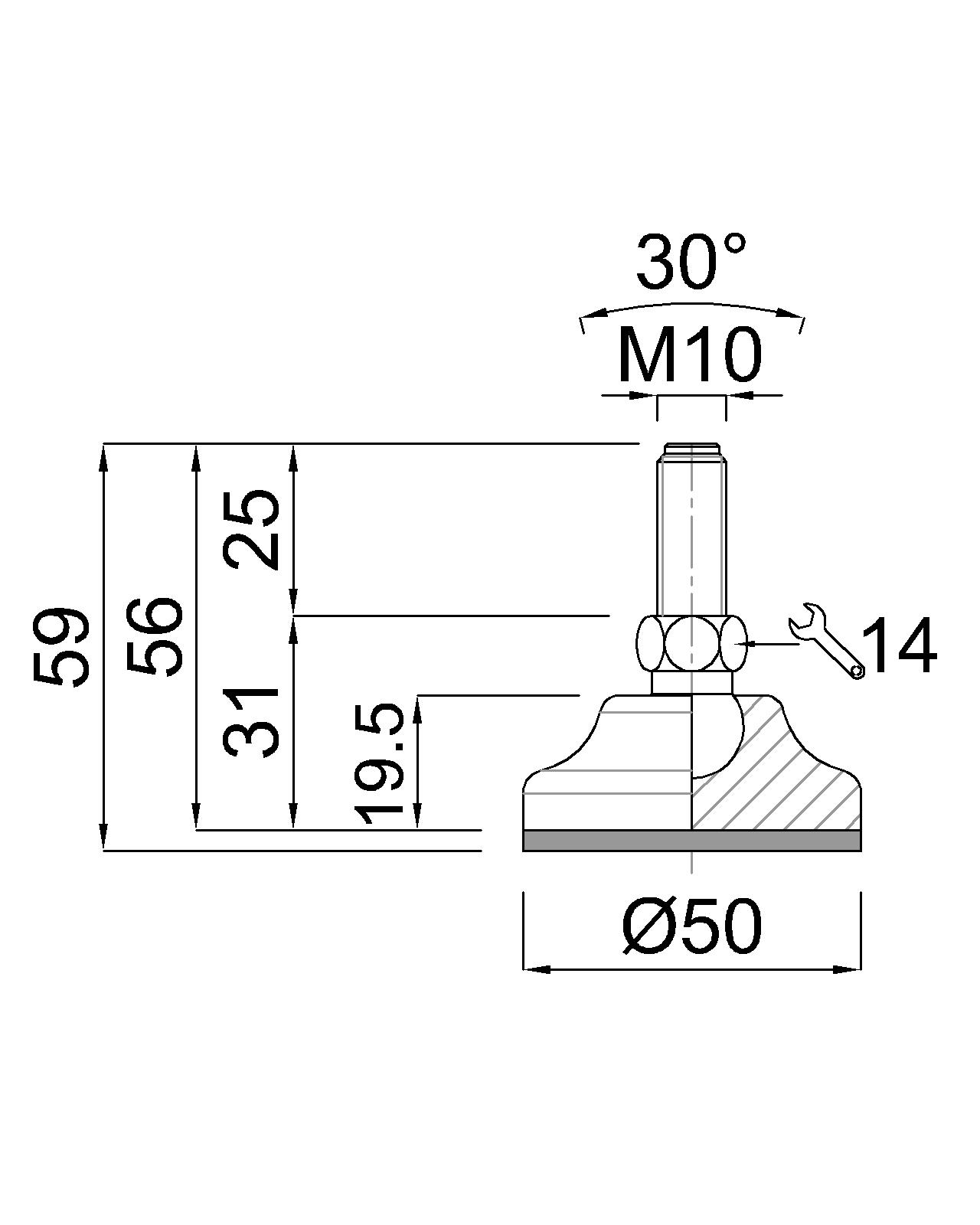

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
