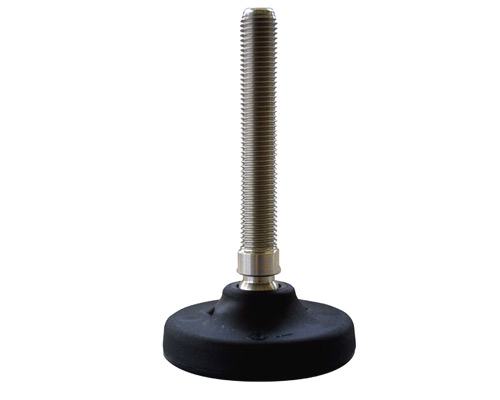

Levelling foot PA, Ø 103 mm, M20 x 125 mm Stainless steel, Drills

EAN 4061408013241

Type 45810124/20

Discover our PA levelling foot with a Ø 103 mm design, offering exceptional stability and a static load capacity of 25,000 N. Ideal for precise leveling applications.

Durable construction with a polyamide base plate and a stainless steel spindle for enhanced strength and corrosion resistance.
Optimal diameter of 103 mm ensures stability and proper load distribution under static conditions.
Adjustable articulated screw mechanism allows for a compensation angle of up to 30 degrees, accommodating uneven surfaces.
Designed with two bore holes (Ø 12.5 mm) for secure mounting, ensuring reliable application in various settings.
Capable of supporting static loads up to 25,000 N, making it ideal for heavy-duty engineering applications.

Quantity	Price
From 1	€11.24*
From 5	€10.05*
From 15	€8.97*
From 50	€8.79*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€11.24* / piece

Our payment methods:

Product properties

Footplate material:	Plastic
Ø range base plate (mm):	91-110
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	20
Spindle length (mm):	125
Balancing angle:	30°

Product description

Levelling foot Polyamide, Ø 103 mm, M20 x 125 mm, Stainlees steel, Total height 174 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Static load 25.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
