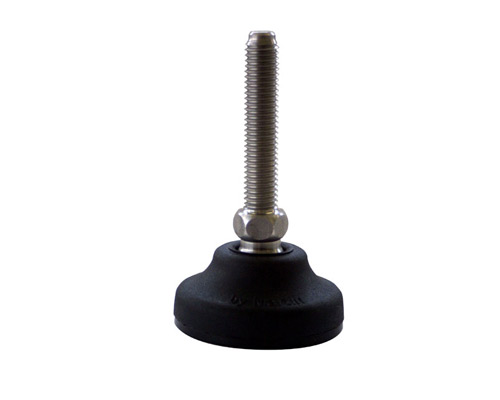

Levelling foot PA, Ø 50 mm, M12 x 100 mm Stainless steel
Discover our stainless steel levelling foot made from durable polyamide, featuring a 50 mm diameter and a robust M12 x 100 mm spindle. Supports static loads up to 11,000 N with a 30° adjustment angle for optimal stability.
| Quantity | Price |
|---|---|
| From 1 |
€6.03*
|
| From 5 |
€5.39*
|
| From 15 |
€4.82*
|
| From 50 |
€4.72*
|
35 on stock, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 41-50 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |
| Hygiene: | No |

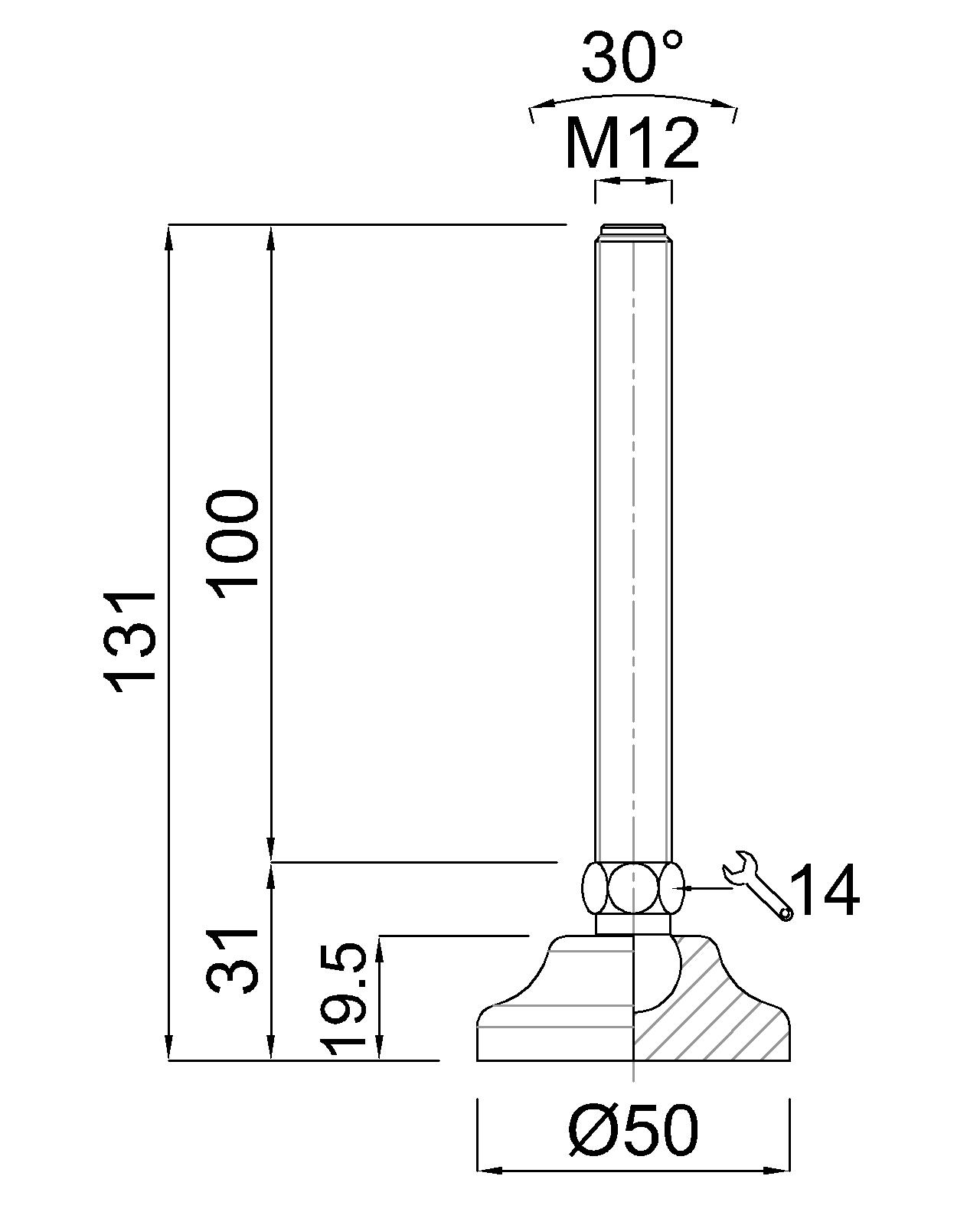

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
