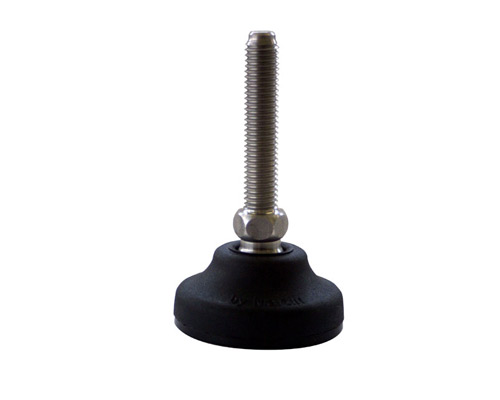

Levelling foot PA, Ø 50 mm, M10 x 125 mm Stainless steel
The Levelling Foot PA, with a 50 mm diameter and M10 x 125 mm stainless steel spindle, offers robust support with a static load capacity of 11,000 N and a 30° adjustment angle. Ideal for precise leveling in engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€7.76*
|
| From 5 |
€6.94*
|
| From 15 |
€6.20*
|
| From 50 |
€6.07*
|
25 on stock, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 41-50 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 125 |
| Balancing angle: | 30° |
| Hygiene: | No |

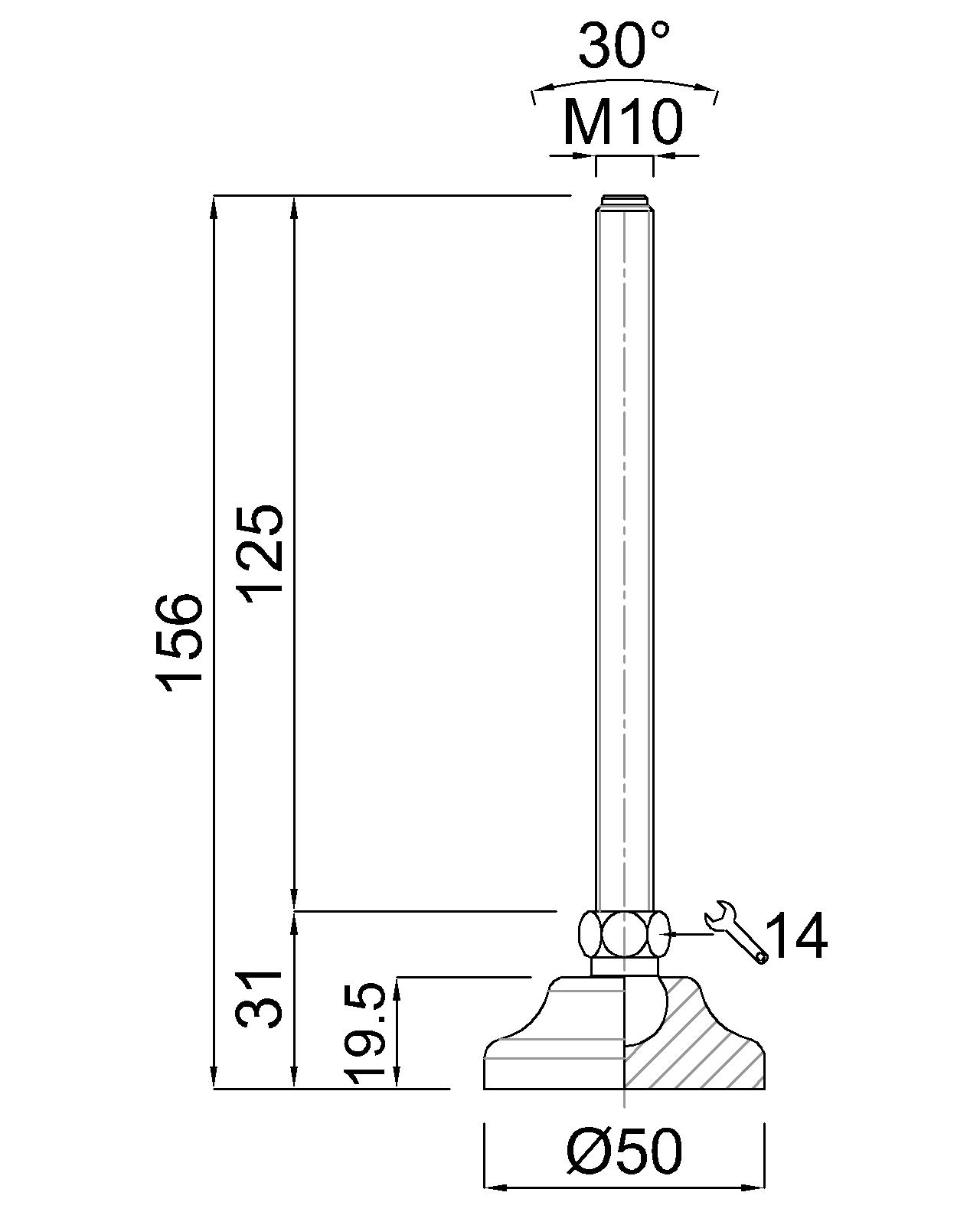

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
