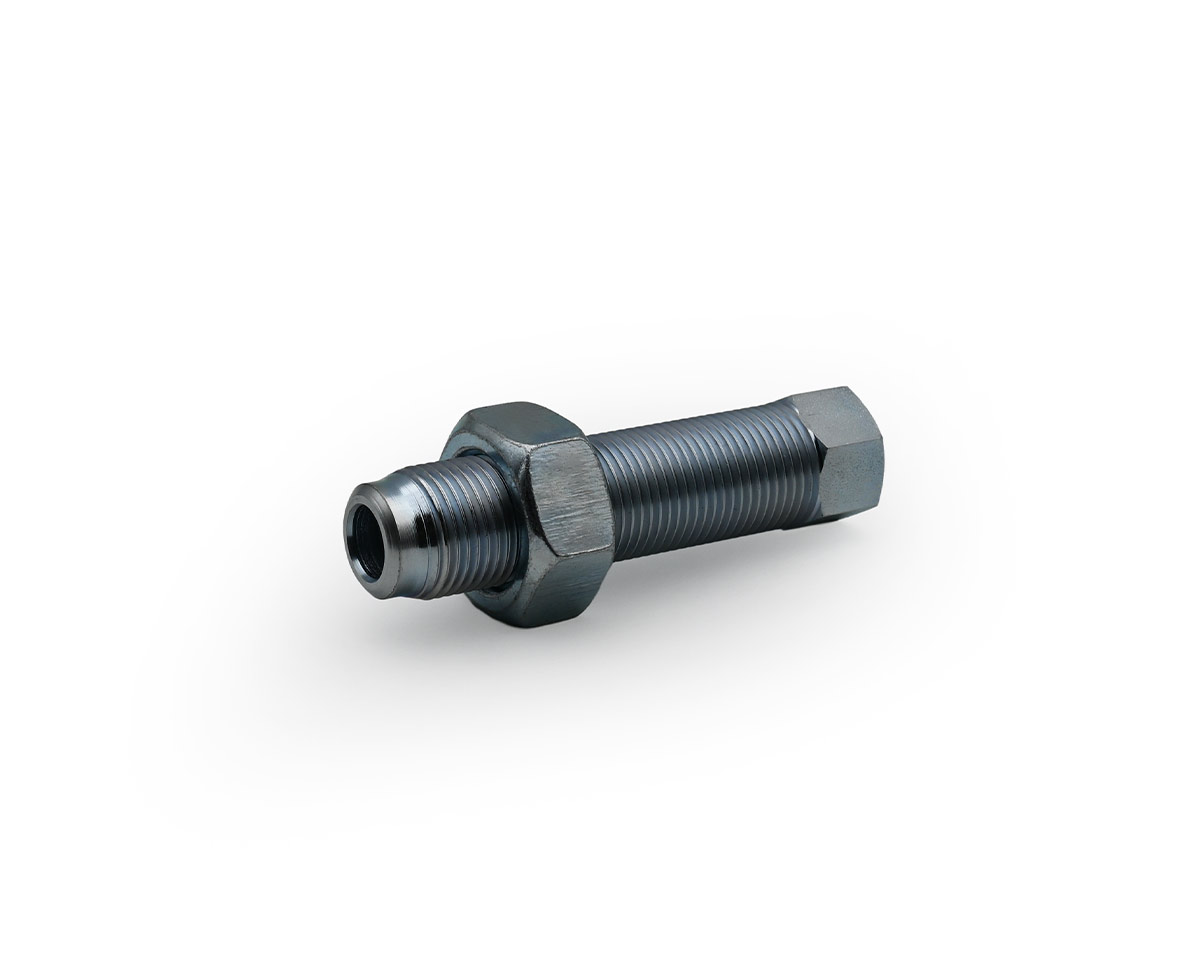

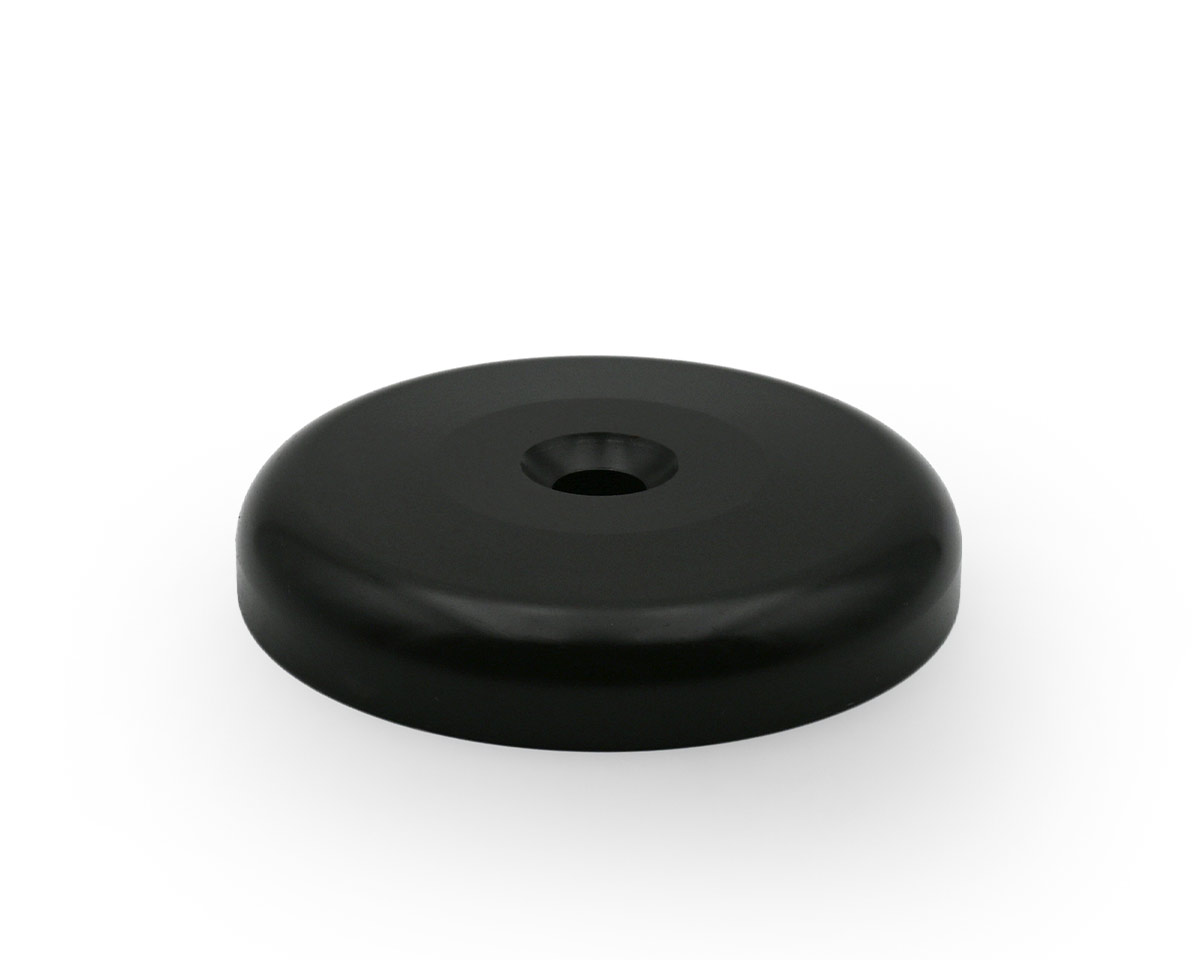

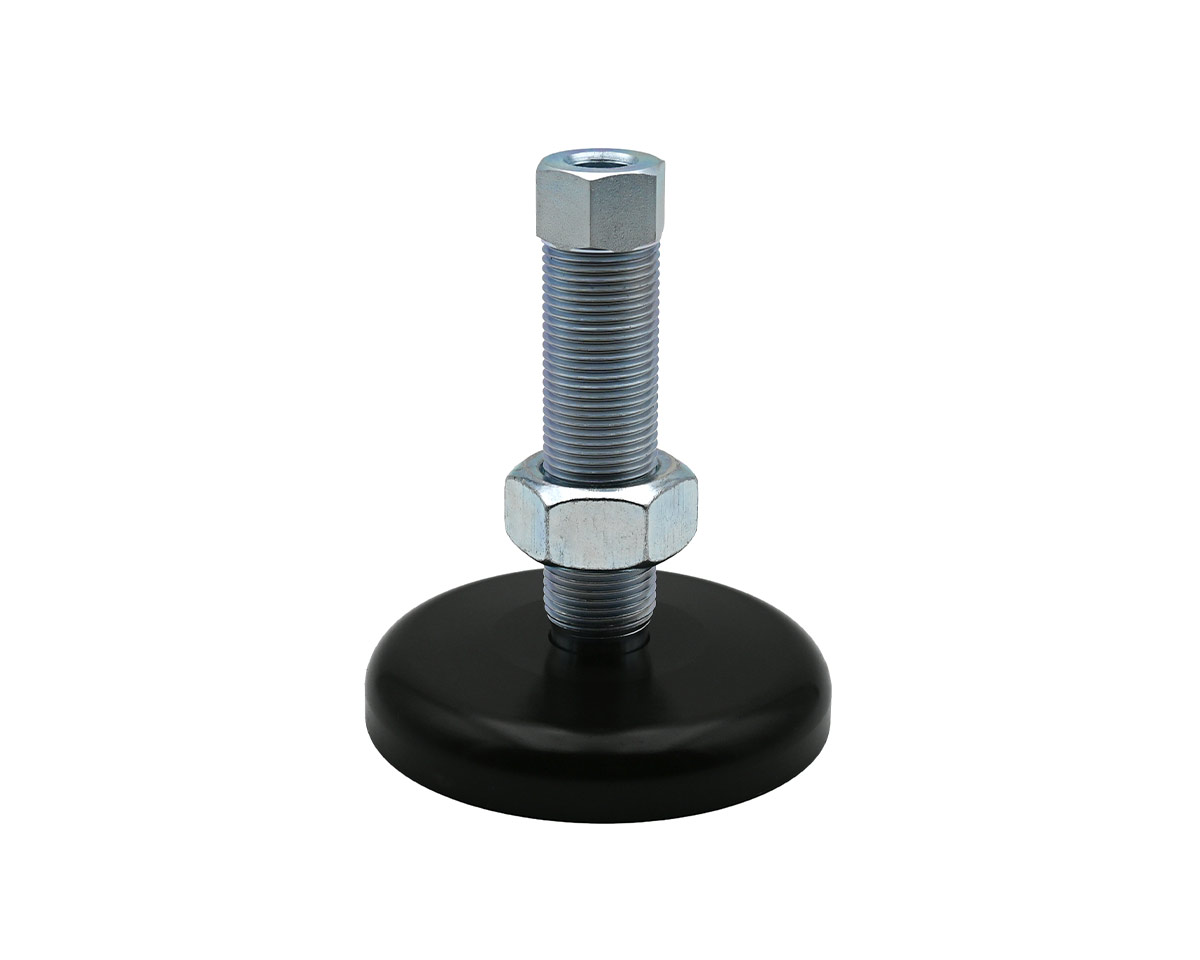

Levelling foot TEKNOFIX, Ø 100 mm Steel, M24x2 x 150 mm, plate phosphated
Introducing the TEKNOFIX leveling foot: engineered for durability with a galvanized steel spindle and a phosphated base plate. Accommodates static loads up to 60,000 N for reliable support.
| Quantity | Price |
|---|---|
| From 1 |
€14.98*
|
| From 5 |
€14.22*
|
| From 15 |
€13.75*
|
| From 50 |
€13.27*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | Pierced |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 150 |
| Balancing angle: | 0° |
| Hygiene: | No |

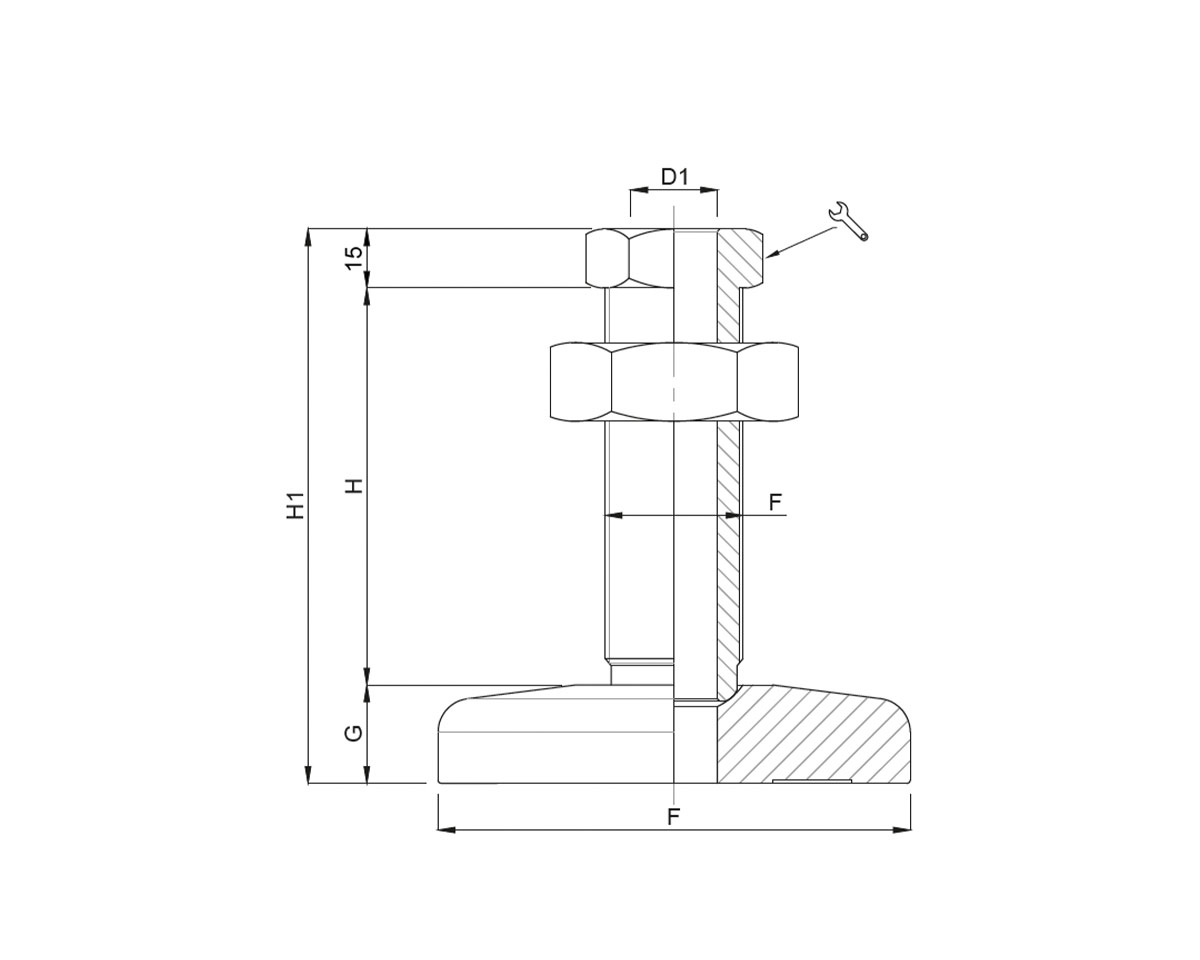

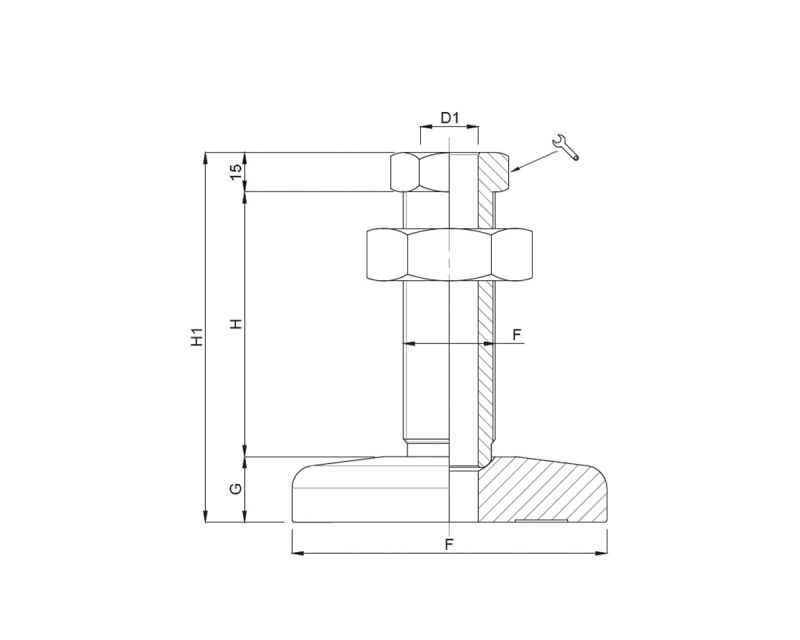

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
