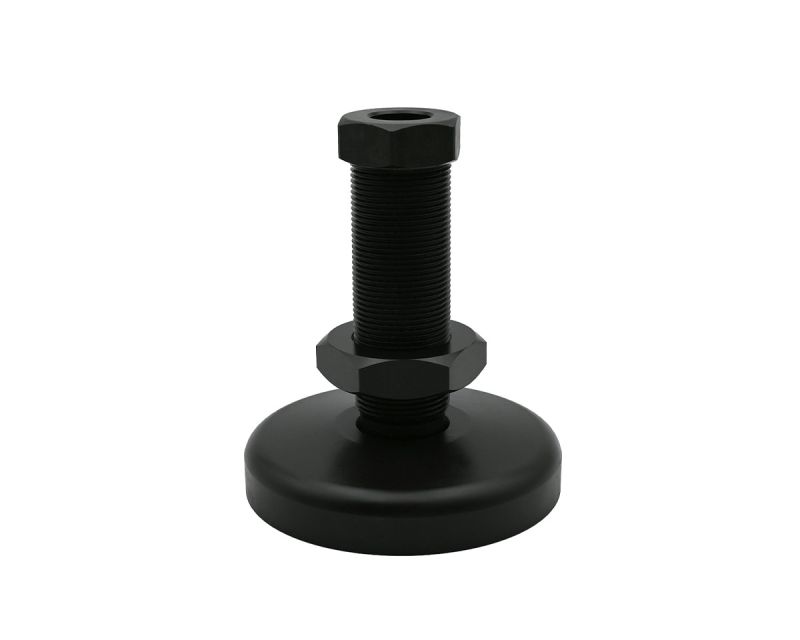

Levelling foot TEKNOFIX, Ø 120 mm Steel, M36x2 x 100 mm, phosphated
Discover the TEKNOFIX levelling foot, featuring a robust steel design with a 120 mm diameter. Its thin pitch M36x2 thread ensures precise adjustments, supporting static loads up to 90,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€39.37*
|
| From 5 |
€37.38*
|
| From 15 |
€36.13*
|
| From 50 |
€34.89*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 36 |
| Spindle length (mm): | 100 |
| Balancing angle: | 0° |
| Hygiene: | No |

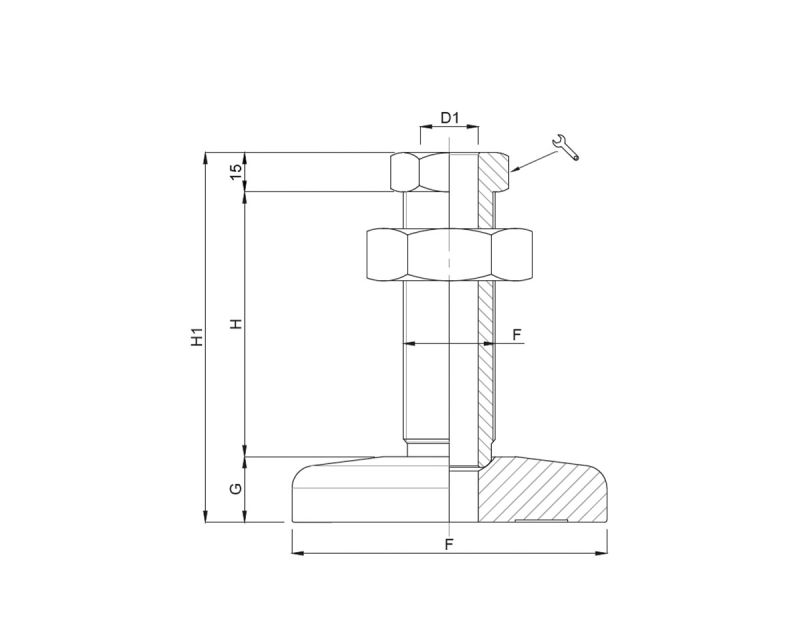

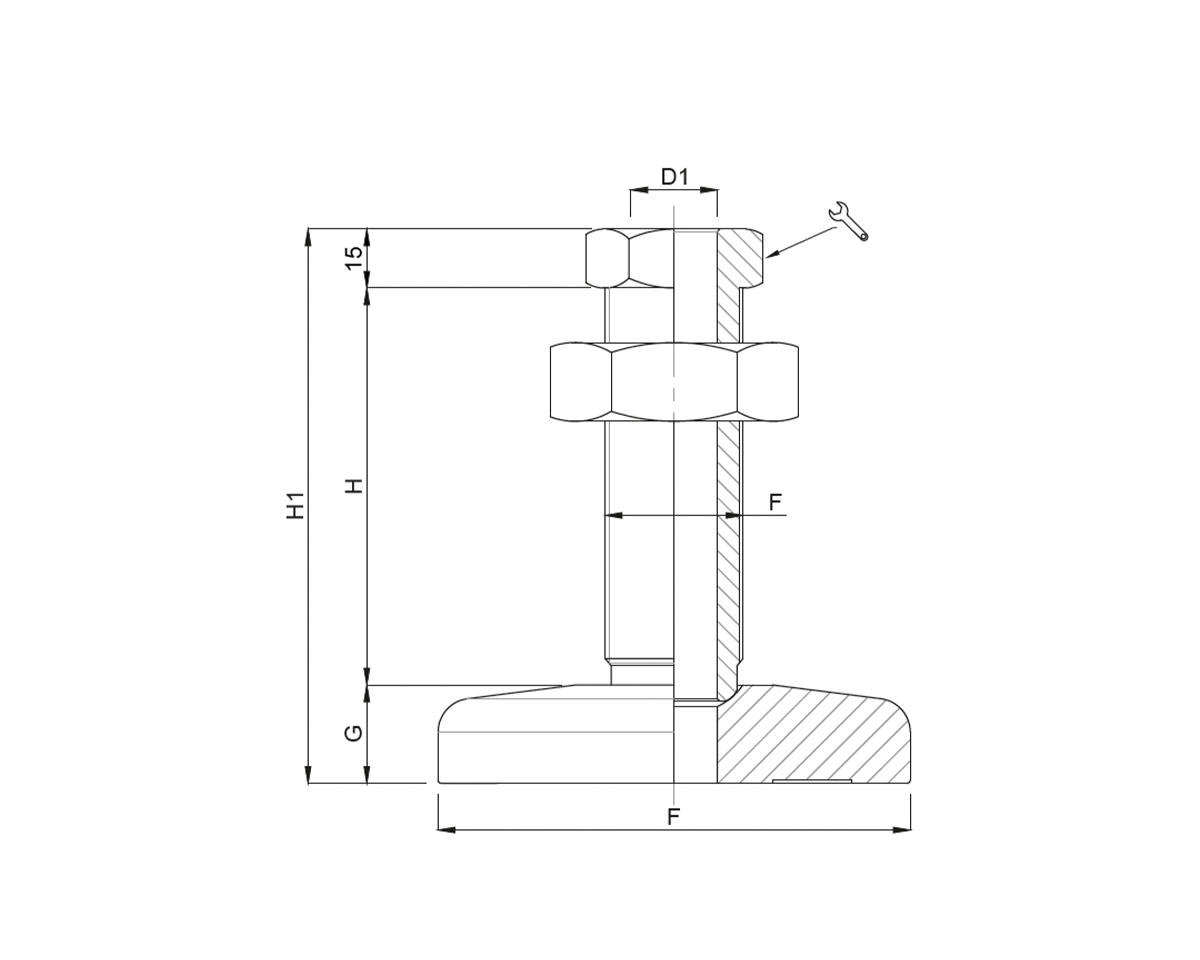

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
