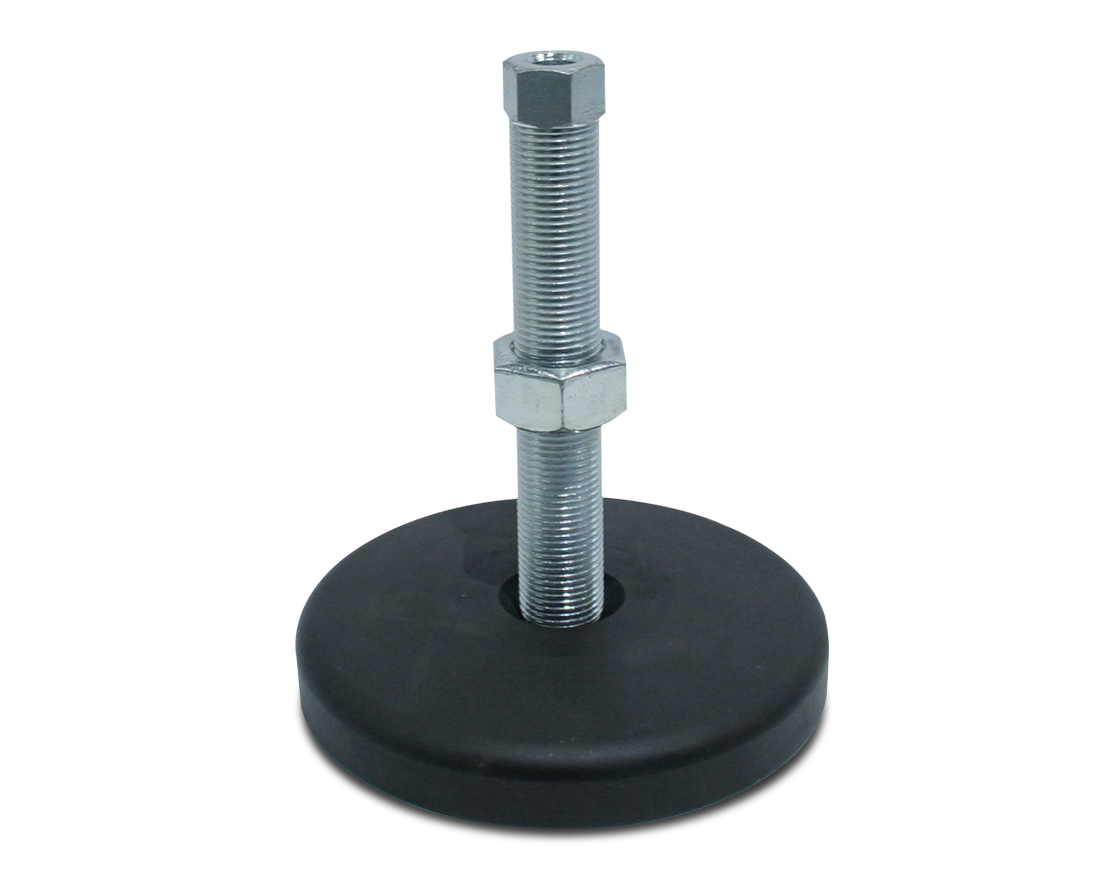

Levelling foot TEKNOFIX, Ø 120 mm Steel, M35x2 x 100 mm, plate phosphated
Discover the TEKNOFIX Levelling Foot: a robust 120 mm steel solution designed for precise height adjustment. Featuring a thin pitch thread and a load capacity of 90,000 N, it's perfect for demanding industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€36.88*
|
| From 5 |
€35.01*
|
| From 15 |
€33.84*
|
| From 50 |
€32.68*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 35 |
| Spindle length (mm): | 100 |
| Balancing angle: | 0° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
