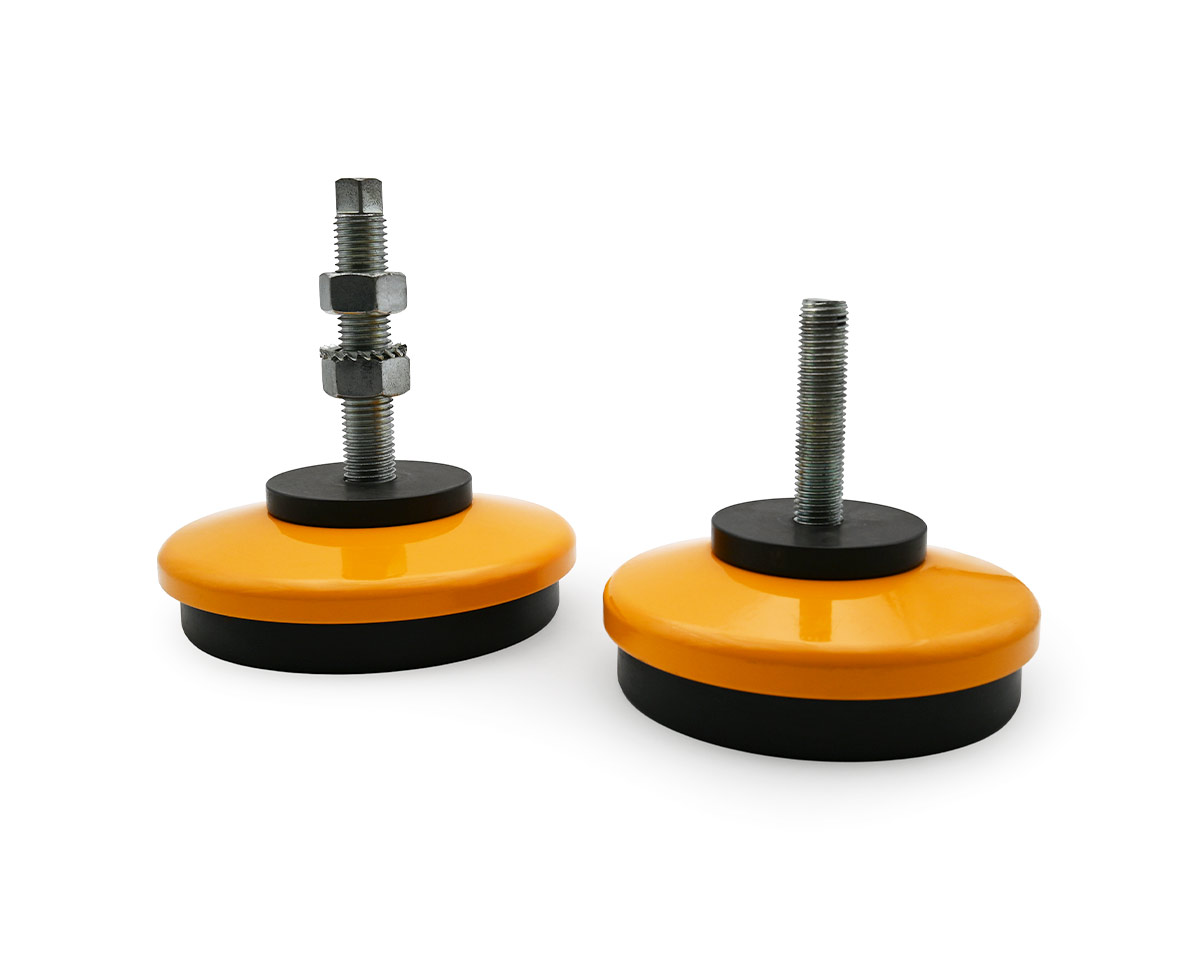

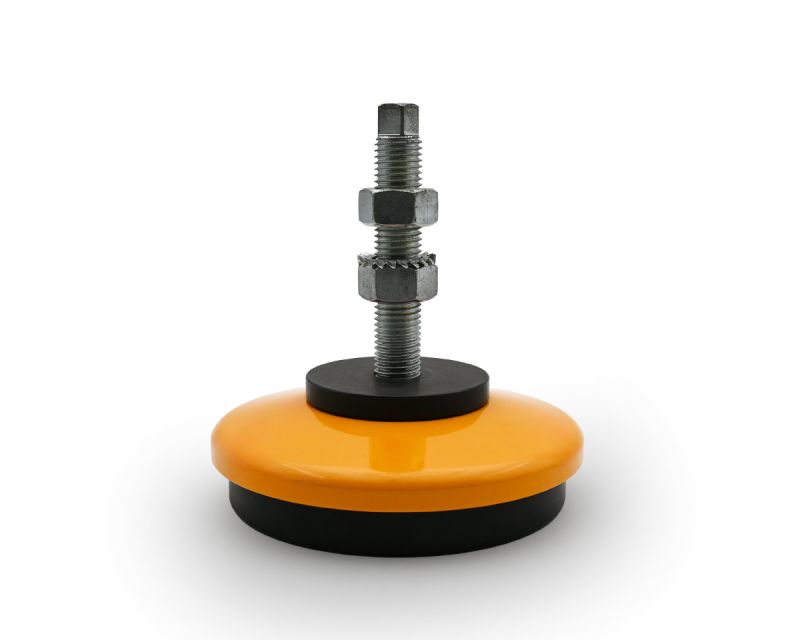

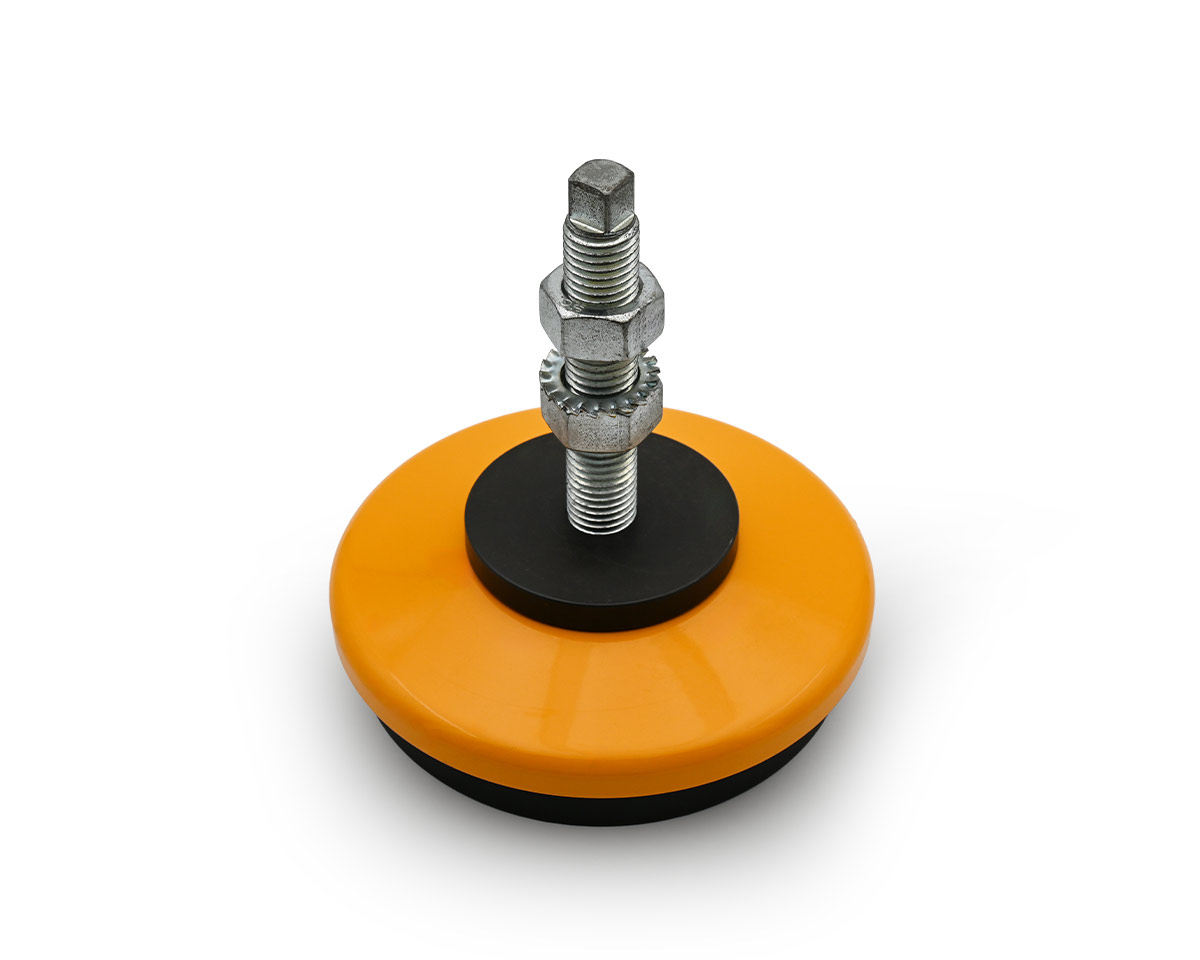

Levelling foot ANTIVIBRATION, Ø 160 mm Steel, M20 x 110 mm, yellow, NBR
Discover our ANTIVIBRATION leveling foot, featuring a robust 160 mm steel base designed for stability and vibration dampening. With an adjustment range of 15 mm and a load capacity of 12,000 dynamic / 25,000 static N, it ensures reliable performance in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€63.32*
|
| From 5 |
€62.49*
|
| From 15 |
€61.66*
|
| From 50 |
€59.57*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | yes |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 100 |
| Balancing angle: | 0° |

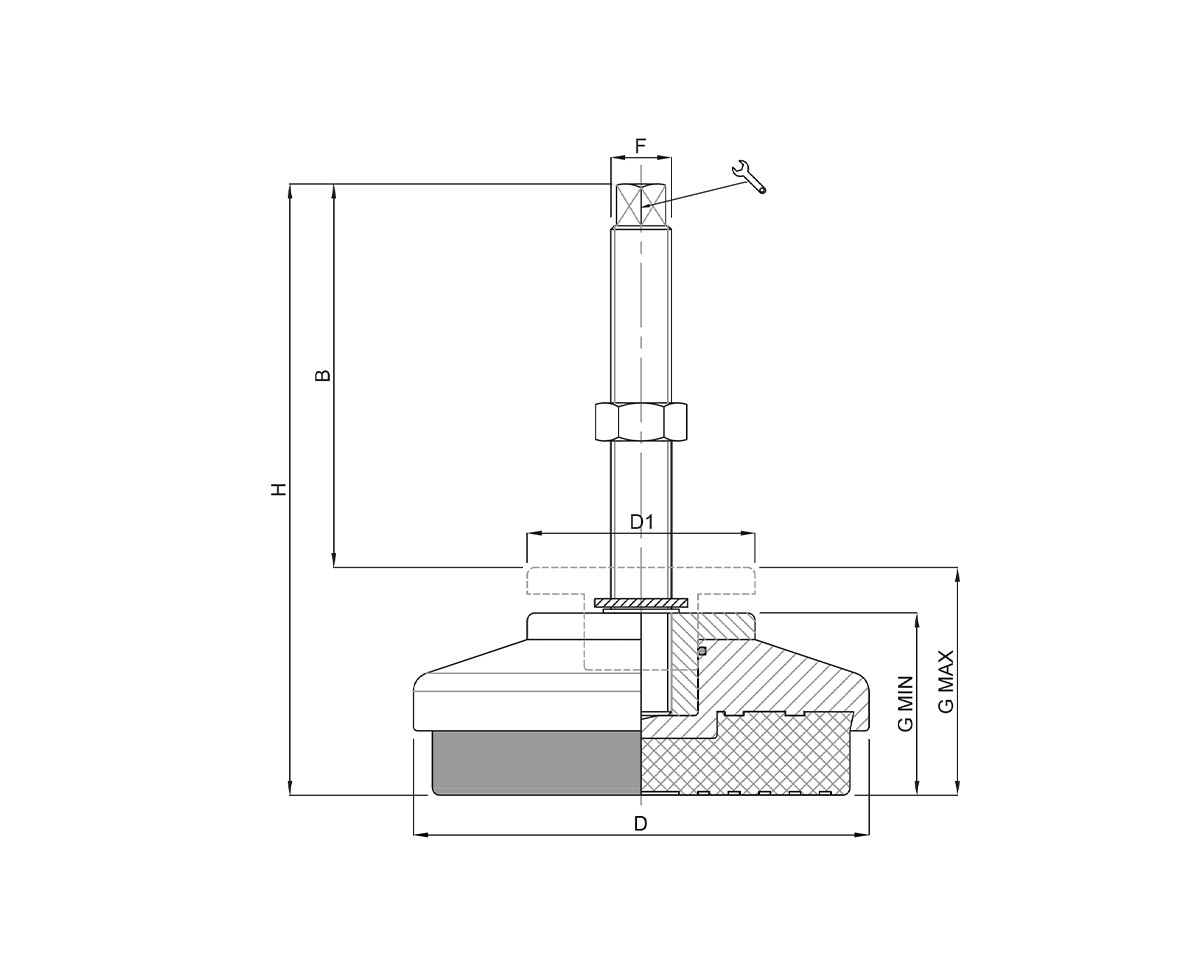

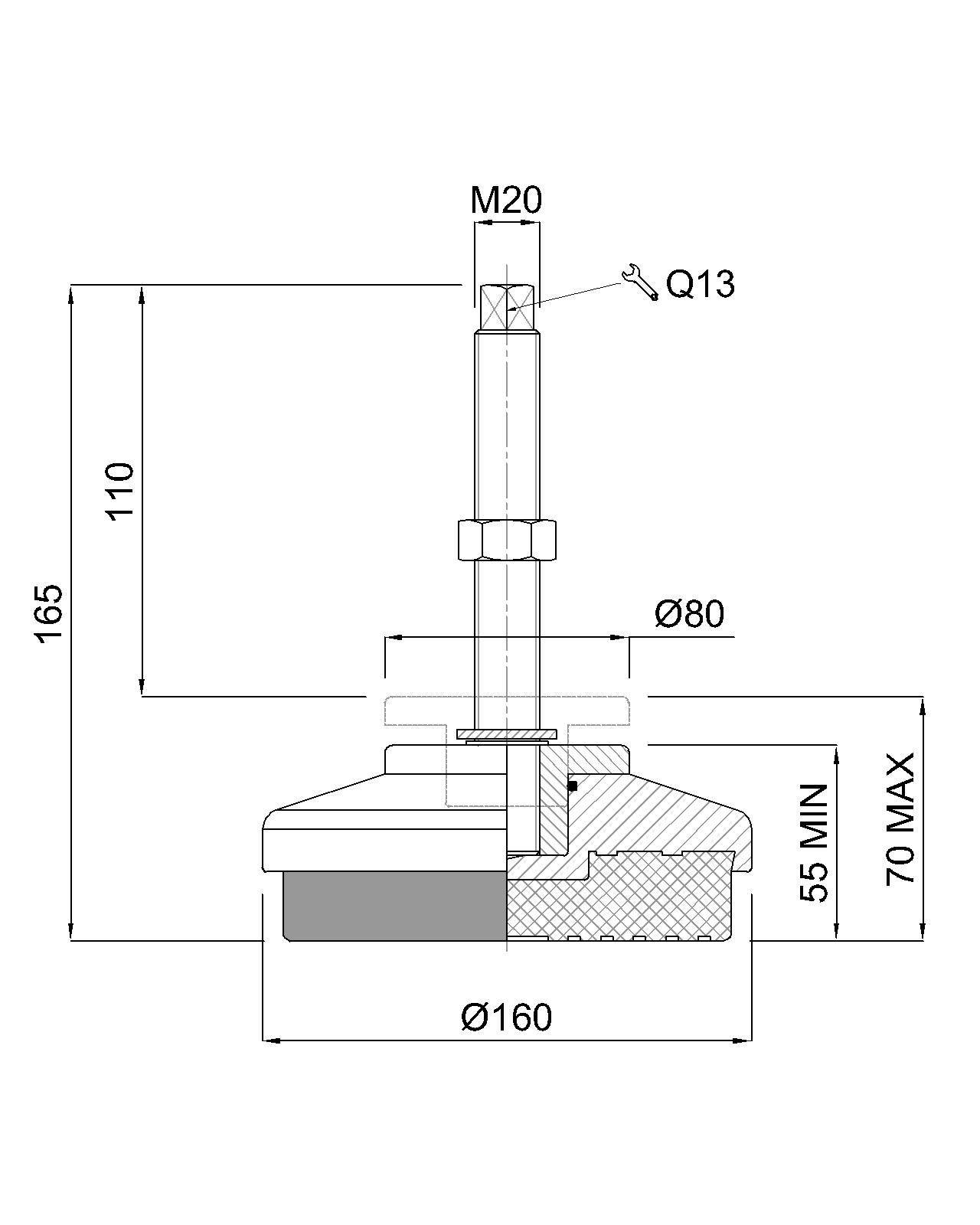

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
