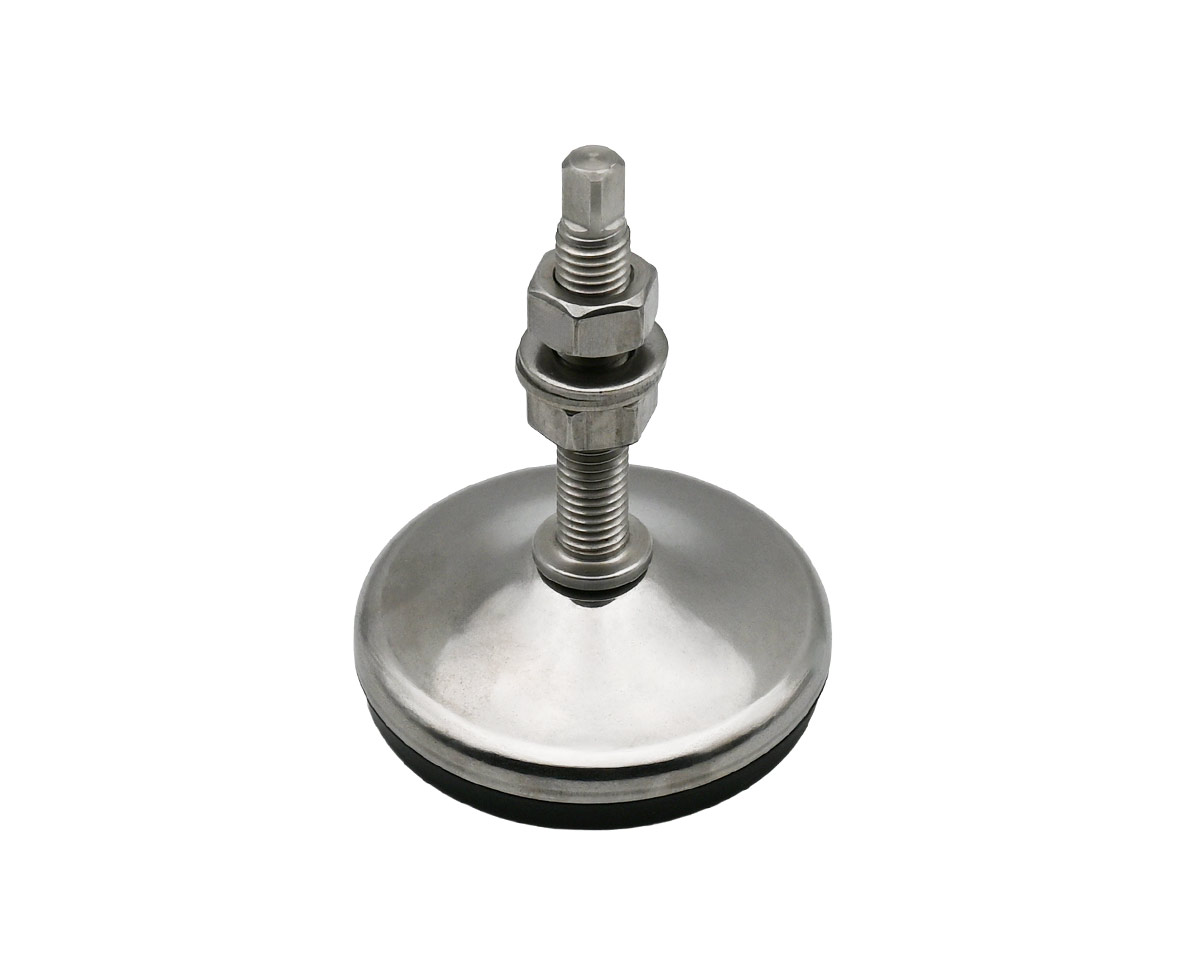

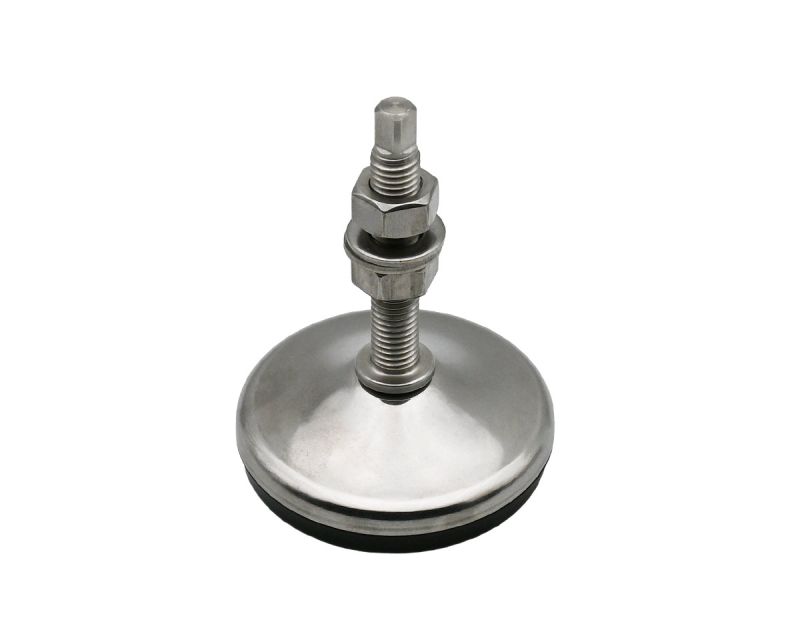

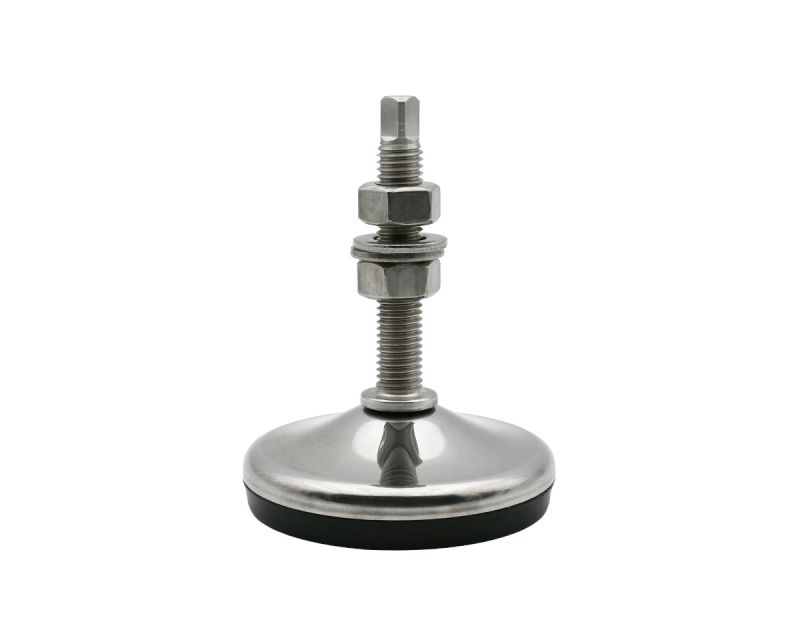

Levelling foot ANTIVIBRATION, Ø 120 mm Stainless steel, M24 x 125 mm, incl. Nut, NBR
Experience precision stabilization with our ANTIVIBRATION Levelling Foot. Made of durable stainless steel, it features a Ø 120 mm base, M24 x 125 mm spindle, and exceptional 5° articulation for enhanced vibration dampening.
| Quantity | Price |
|---|---|
| From 1 |
€37.06*
|
| From 5 |
€36.57*
|
| From 15 |
€36.08*
|
| From 50 |
€34.86*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | Yes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 125 |
| Balancing angle: | 5° |

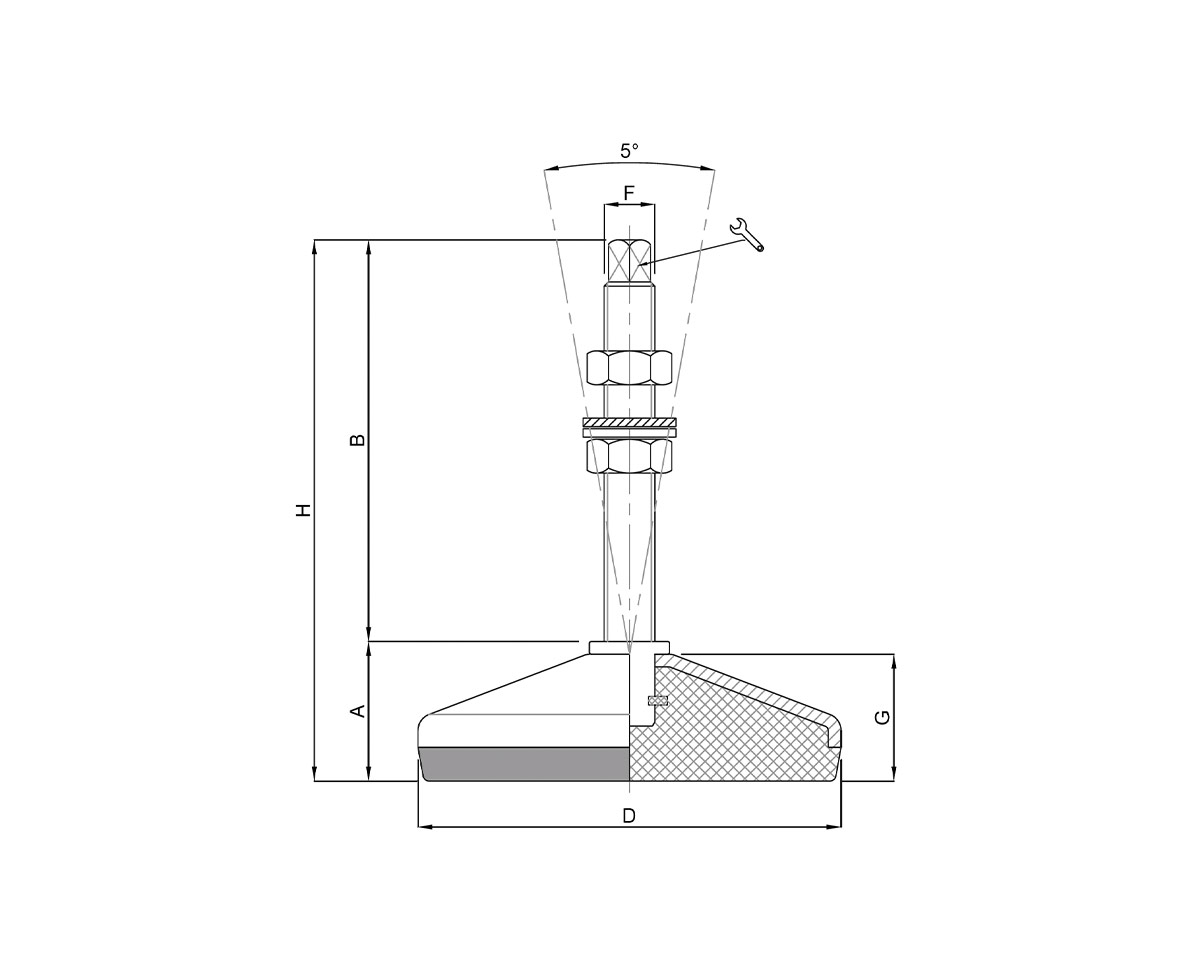

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
