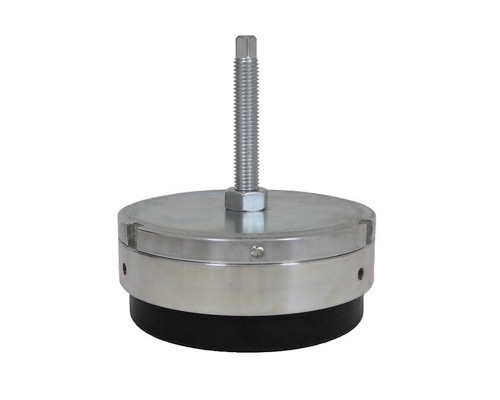

Levelling foot ANTIVIBRATION, Ø 140 mm Steel, M12x1,25 x 75 mm, NBR
Optimize your machinery setup with our 140 mm diameter steel levelling foot. Featuring a thin pitch M12x1.25 x 75 mm thread, dynamic load capacity of 9,500 N, and NBR anti-slip material for superior stability.
| Quantity | Price |
|---|---|
| From 1 |
€99.79*
|
| From 5 |
€98.48*
|
| From 15 |
€97.16*
|
| From 50 |
€93.88*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | yes |
| Material spindle: | Steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 75 |
| Balancing angle: | 0° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
