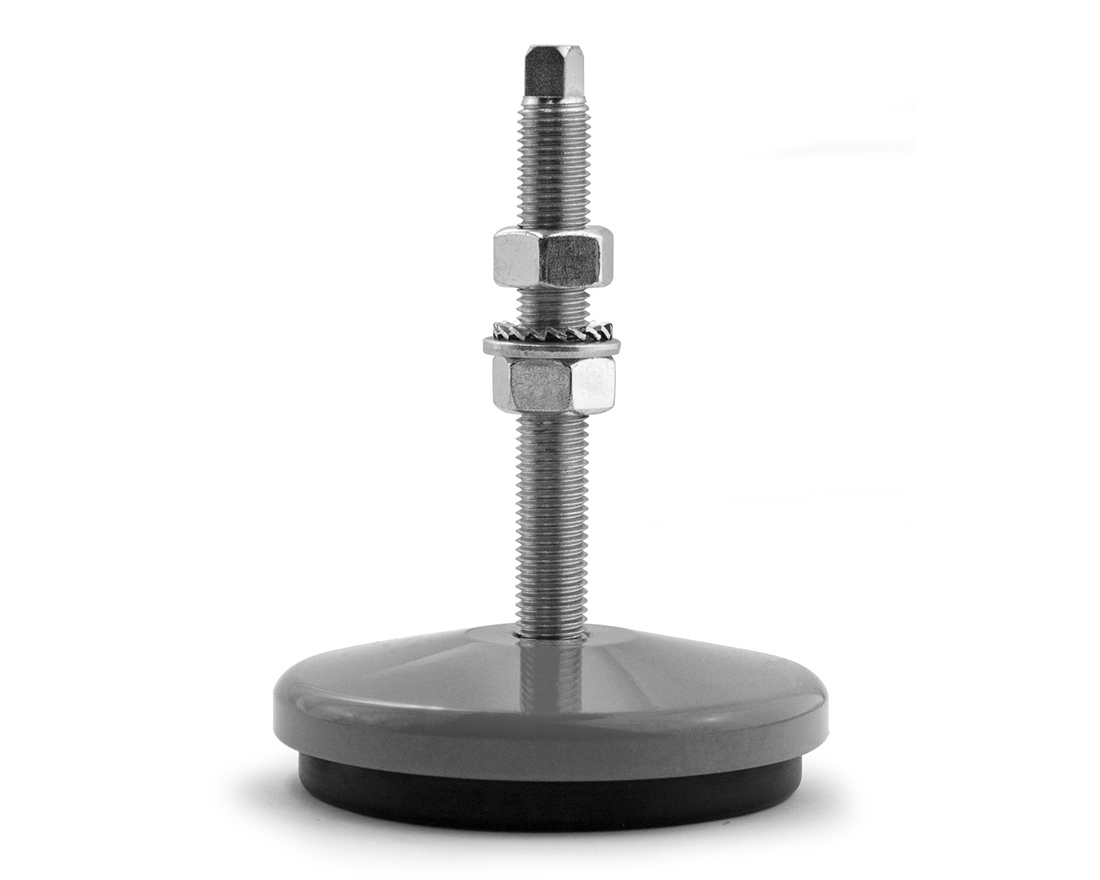

Levelling foot ANTIVIBRATION, Ø 120 mm Steel, M16 x 125 mm, NBR
Ensure stability with our 120 mm diameter antivibration leveling foot, featuring durable galvanized steel and a robust NBR anti-slip surface, supporting dynamic loads up to 7,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€32.22*
|
| From 5 |
€31.80*
|
| From 15 |
€31.38*
|
| From 50 |
€30.32*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | yes |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 125 |
| Balancing angle: | 0° |

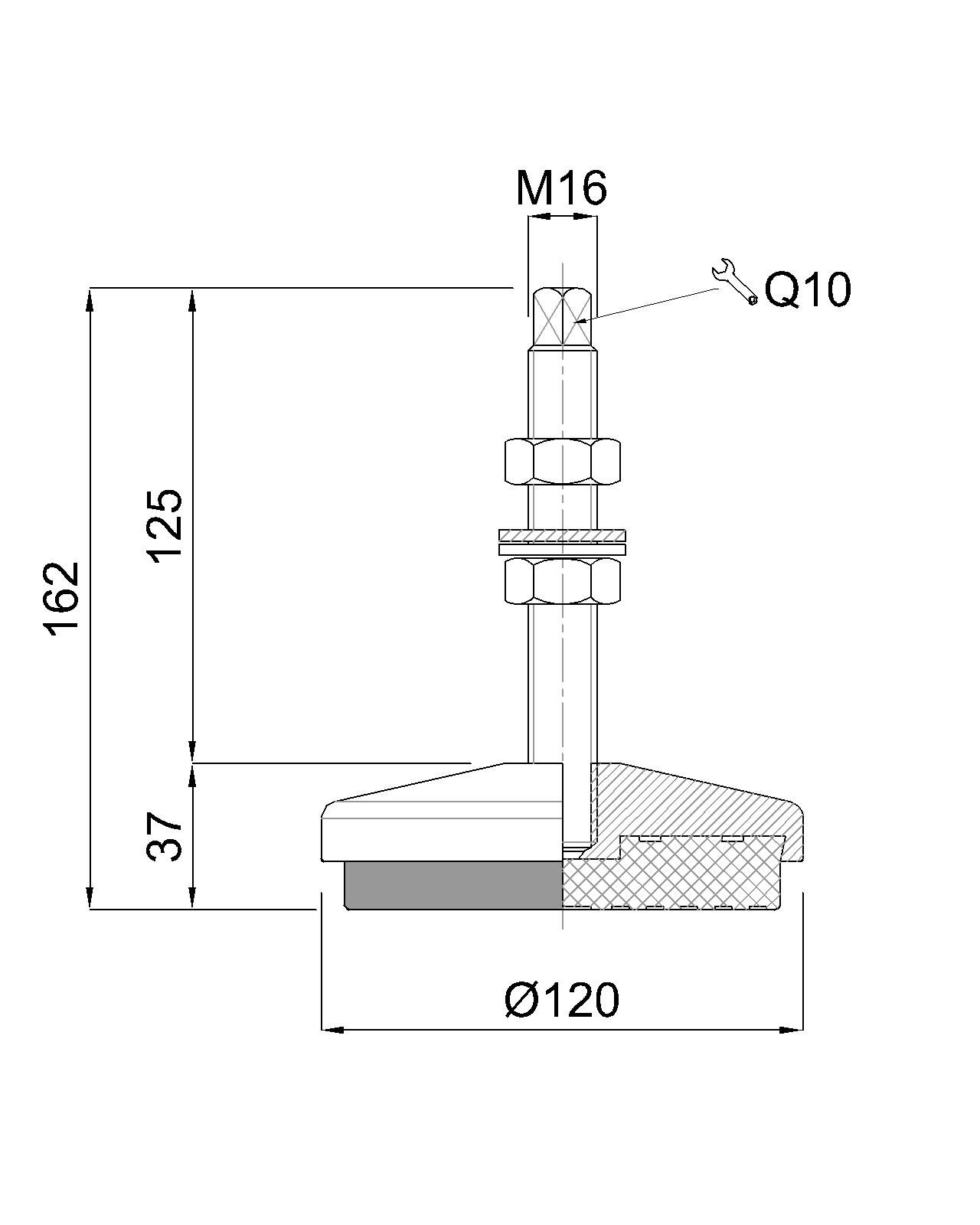

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
