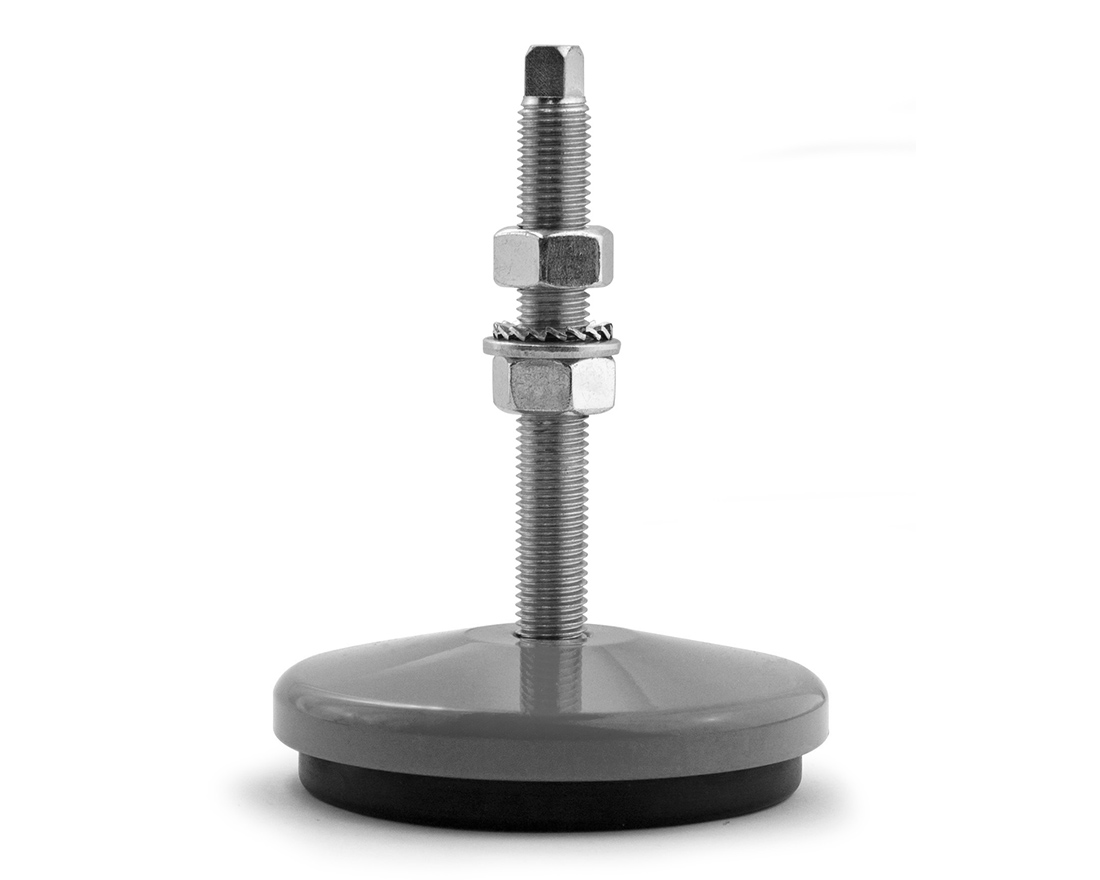

Levelling foot ANTIVIBRATION, Ø 140 mm Steel, M16 x 125 mm, NBR
Optimize your equipment's stability with our 140mm anti-vibration leveling foot. Featuring durable galvanized steel construction and NBR anti-slip pads, it supports dynamic loads up to 8,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€36.84*
|
| From 5 |
€36.36*
|
| From 15 |
€35.88*
|
| From 50 |
€34.66*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | yes |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 125 |
| Balancing angle: | 0° |

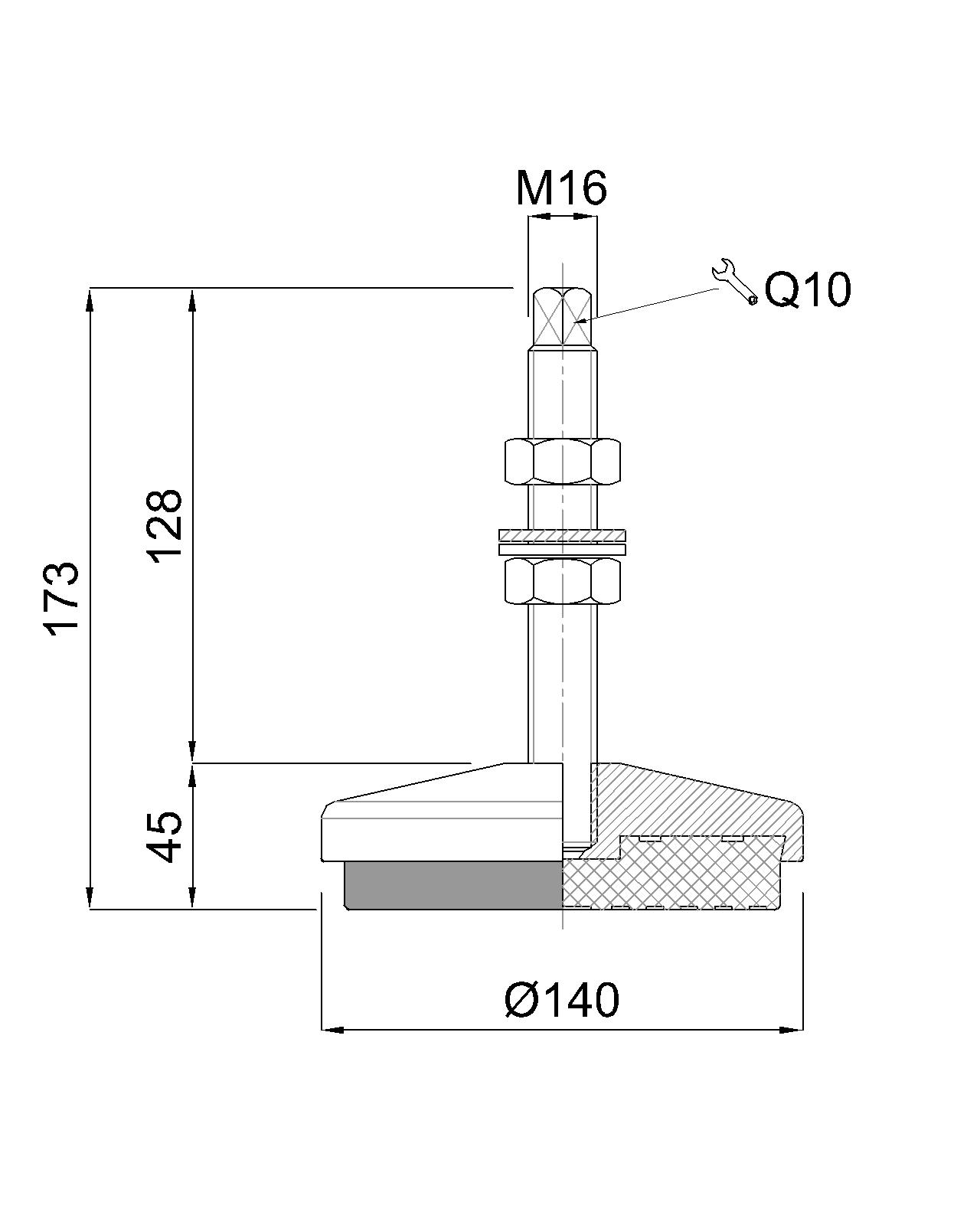

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
