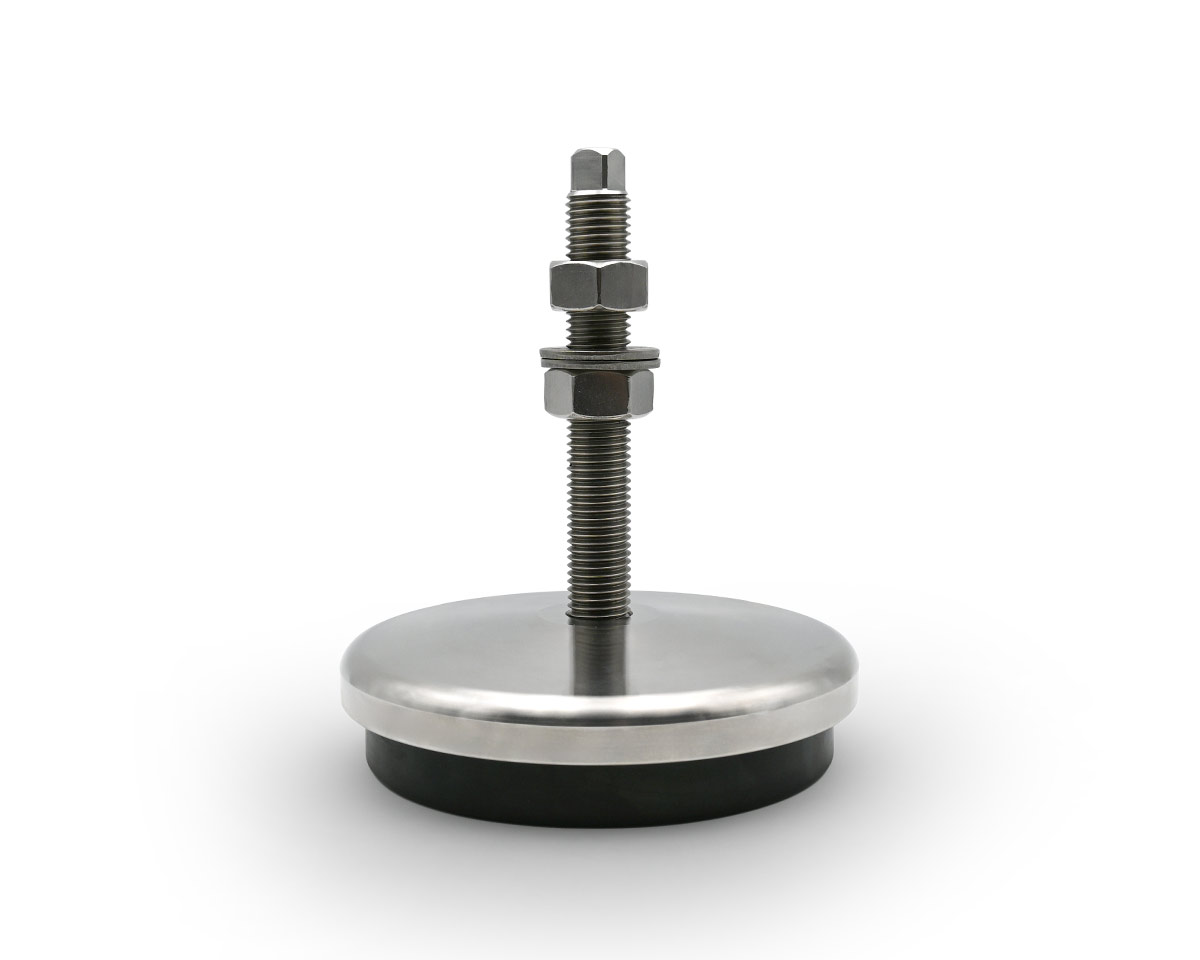

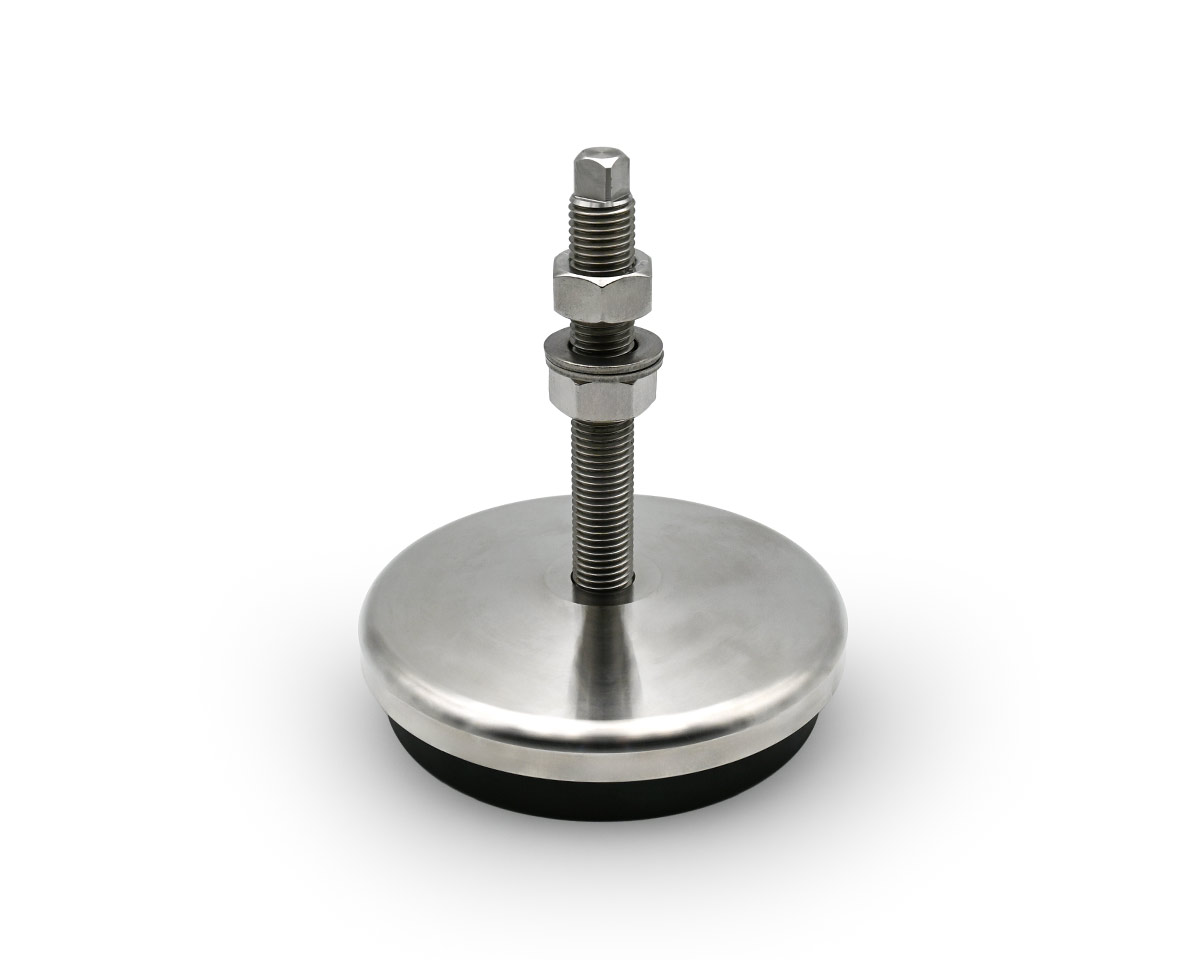

Levelling foot ANTIVIBRATION, Ø 84 mm Stainless steel, M12 x 75 mm, NBR
Optimize your machinery with our Stainless Steel Leveling Foot, featuring an 84 mm diameter for superior stability. Equipped with NBR anti-slip technology, it effectively minimizes vibrations, supporting dynamic loads up to 3,000 N and static loads up to 6,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€40.36*
|
| From 5 |
€39.83*
|
| From 15 |
€39.29*
|
| From 50 |
€37.97*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Vibration damping: | Yes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 75 |
| Balancing angle: | 0° |

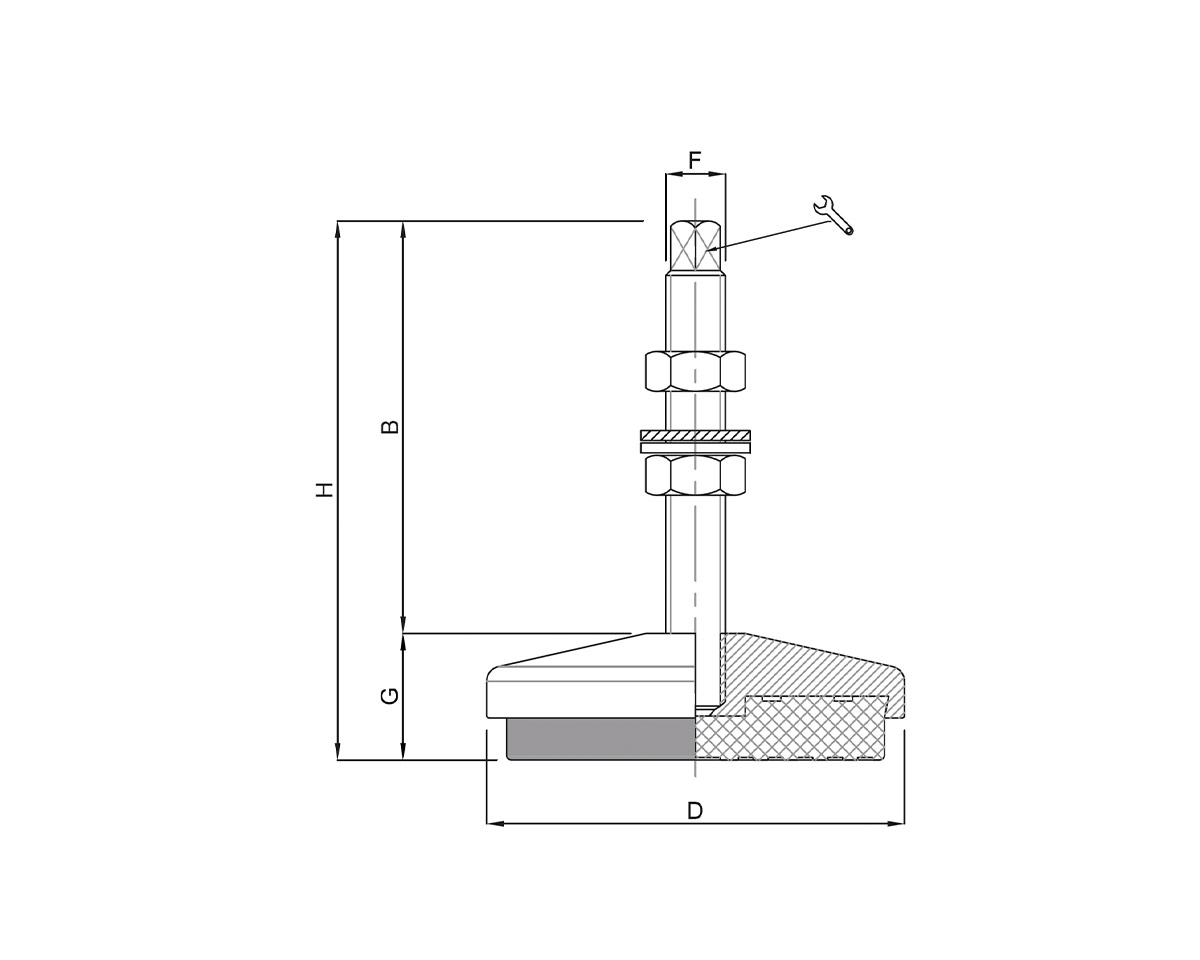

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
