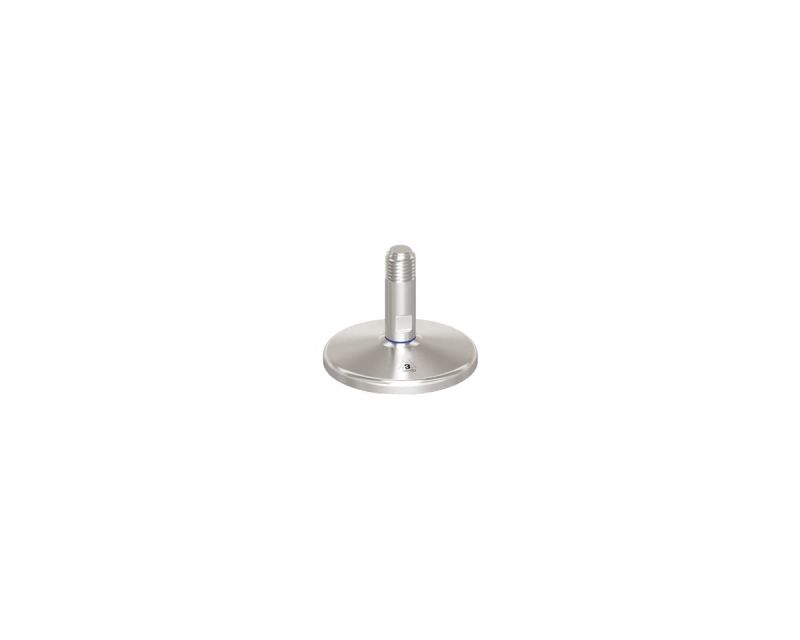

Base plate stainless steel Ø120 for loading cell, spindle M30

EAN 4061408145881

Type 458FLCD120M30503A

Discover our robust stainless steel base plate, designed for 10,000kg load cells. With a Ø120mm diameter and M30 spindle, it ensures precision and durability in demanding environments. Featuring a silicone seal and 3A certification, it's the ideal choice for technical professionals.

Hygienefuß für Wägezelle mit Nennlast bis 10.000 Kg, Fußplatte Edelstahl Ø 120 mm, Edelstahl-Spindel M30, SW26

Element 2 of 2 (image) – Base plate stainless steel Ø120 for loading cell, spindle M30

Made of high-quality stainless steel for enhanced durability and corrosion resistance
Designed for loading cells with a maximum capacity of 10,000 kg, ensuring reliability in heavy-duty applications
Features a spindle M30 for secure and precise mounting of load cells
Total height of 97mm with a SW20 for optimal integration into existing systems
Equipped with a silicone seal in the joint and 3A certification for maintained hygiene standards in sensitive environments

Quantity	Price
From 1	€114.76*
From 13	€112.27*
From 41	€110.60*

Currently sold out, Refill time: 5 days

€114.76* / piece

Our payment methods:

Accessories

3-A Wägezelle für Maschinenfüße, Einbaulänge 152 mm, Anschlussgewinde M30, Gehäuse-Ø 78 mm, Nennlast bis 10.000 kg

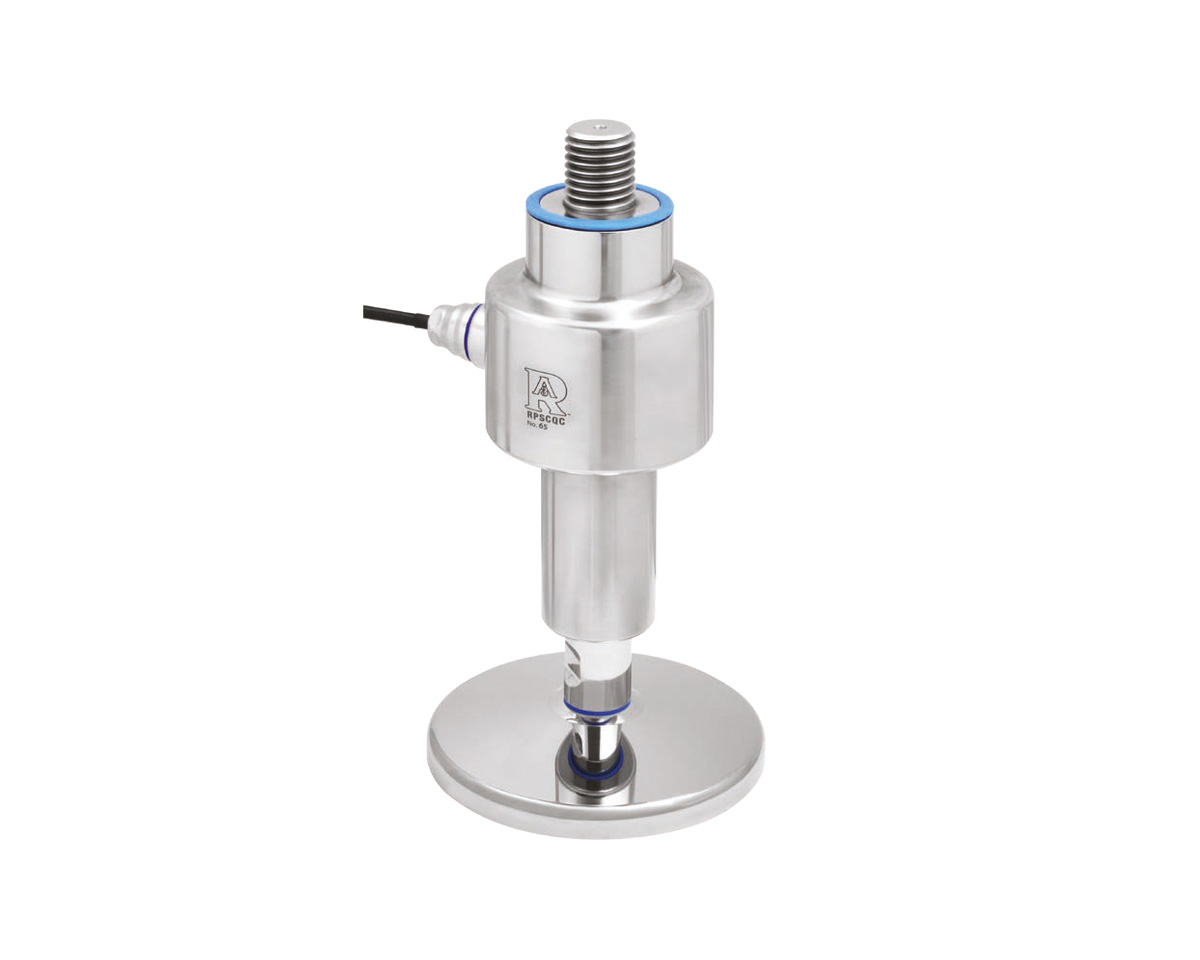

Loading cell for machine base 3A, connection thread M30, load 10000 kg

Type No.: 458FLC10000M30A3A

€518.81*

Product properties

Product description

Base plate stainless steel Ø120 for loading cell 10000kg, spindle M30, total height 97mm, SW20, silicone seal in joint, 3A certified

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
