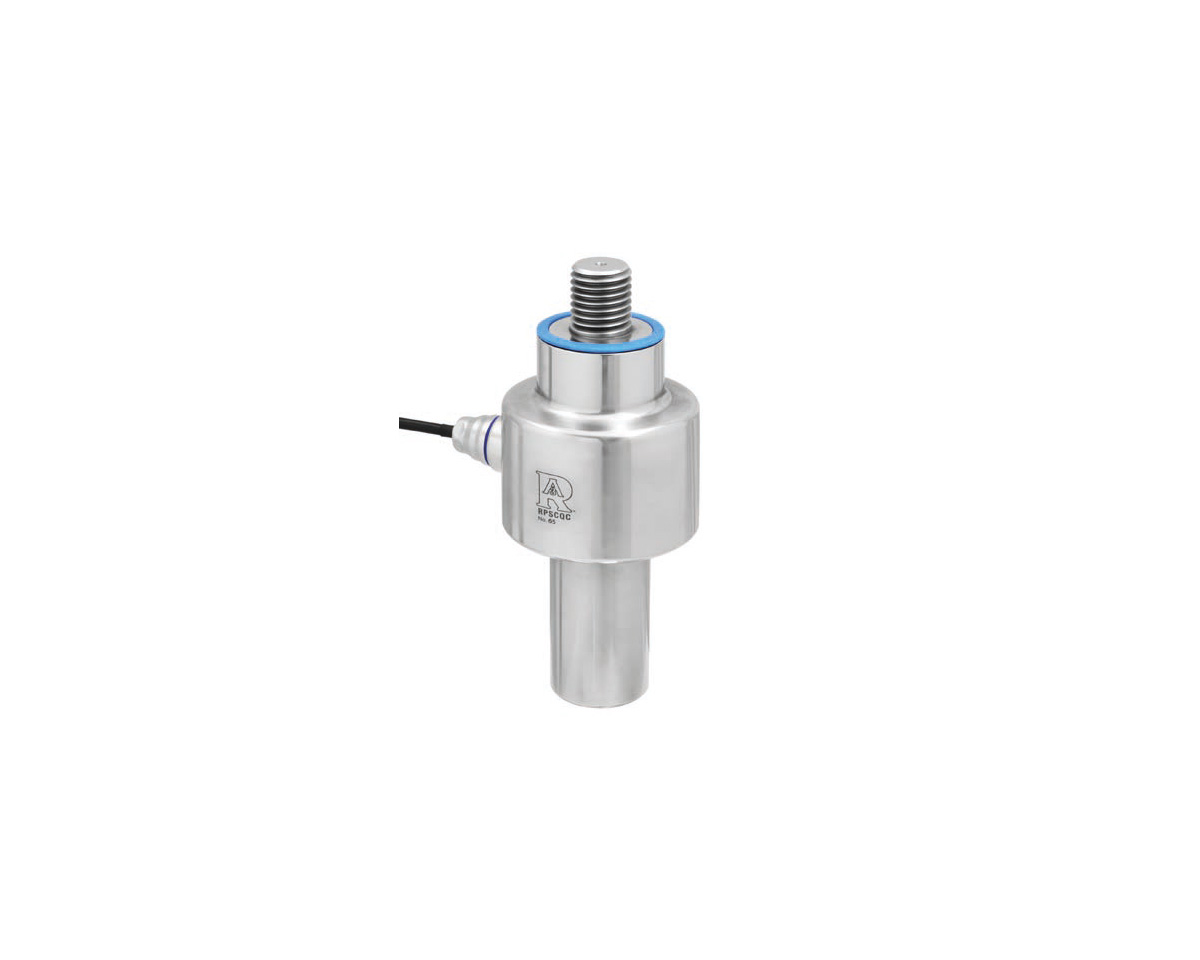

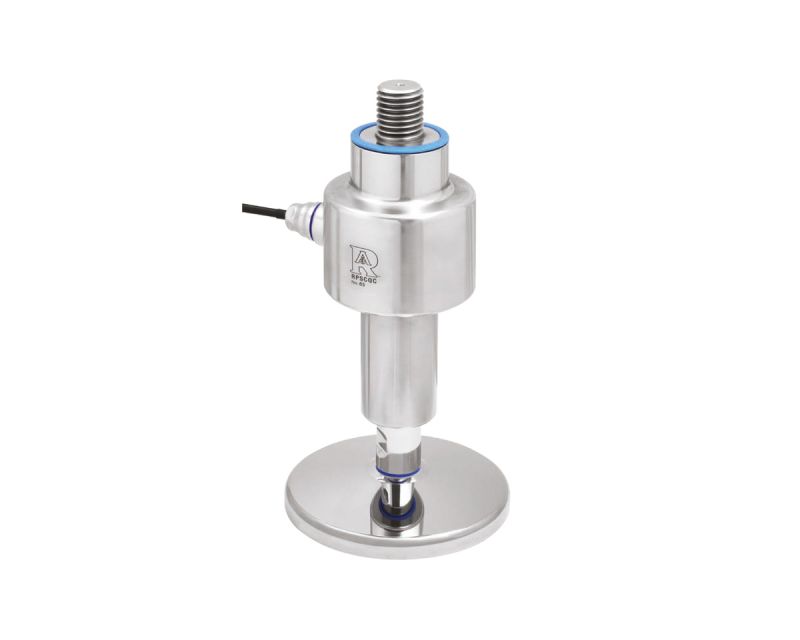

Loading cell for machine base 3A, connection thread M12, load 2000 kg, with footplate Ø120

EAN 4061408145782

Type 458FLCLF2000M123A

Discover the 3A certified loading cell for machine bases, featuring a robust 2000 kg capacity, M12 connection thread, and a stable footplate with a diameter of Ø120 mm for precise load measurements.

Set bestehend aus hygienischer Drucklast-Wägezelle und passendem Hygienefuß, 3-A zertifziert, Einbaulänge 152 mm

Element 2 of 3 (image) – Loading cell for machine base 3A, connection thread M12, load 2000 kg, with footplate Ø120

Element 3 of 3 (image) – Loading cell for machine base 3A, connection thread M12, load 2000 kg, with footplate Ø120

High load capacity of 2000 kg, suitable for heavy-duty applications.
Certified design ensures compliance with industry standards for safety and reliability.
Compact installation length of 152 mm, facilitating ease of integration into various machine bases.
M12 connection thread provides a secure and stable electrical connector.
Durable housing with a diameter of Ø 78 mm, designed for longevity in demanding environments.

Quantity	Price
From 1	€635.53*
From 13	€621.72*
From 41	€612.50*

Currently sold out, Refill time: 15 days

€635.53* / piece

Our payment methods:

Accessories

Hygienic terminal box made of AISI 304 stainless steel for load cells, dimensions 143.4 x 92 mm

Type No.: 458CDG4EQ3A

€291.60*

Product properties

Vibration damping:	no
Hygiene:	No

Product description

Loading cell for machine base 3A certified, installation length 152 mm, connection thread M12, housing diameter Ø 78 mm, max load 2000 kg, with footplate Ø120

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
