Loading cell for machine base 3A, connection thread M12, load 1000 kg, with footplate Ø120

EAN 4061408145775

Type 458FLCLF1000M123A

Introducing the 3A machine base load cell: Precision-engineered for up to 1000 kg, featuring an M12 connection thread and a robust 152 mm installation length, ensuring reliability and accuracy in industrial applications.

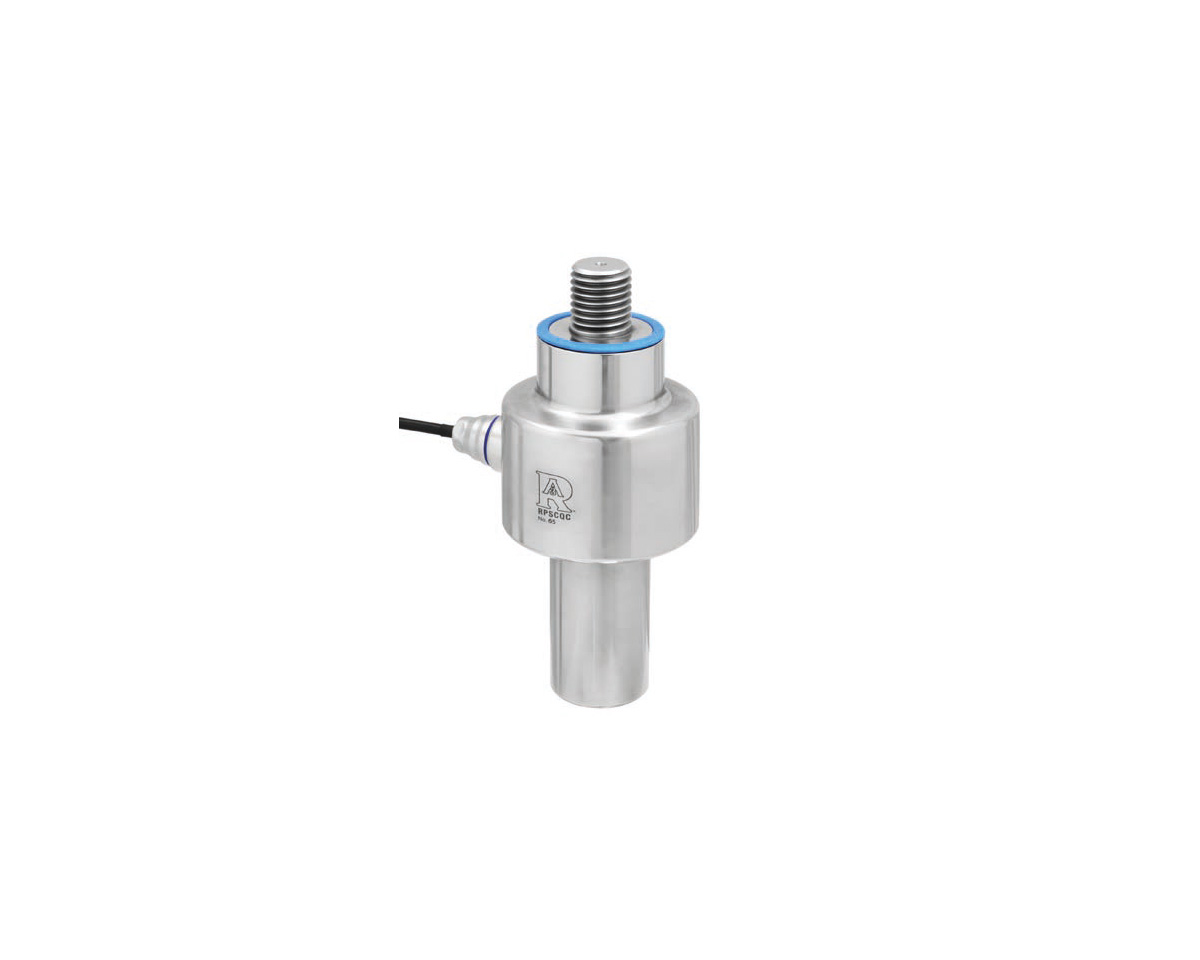

Element 1 of 3 (image) – Loading cell for machine base 3A, connection thread M12, load 1000 kg, with footplate Ø120

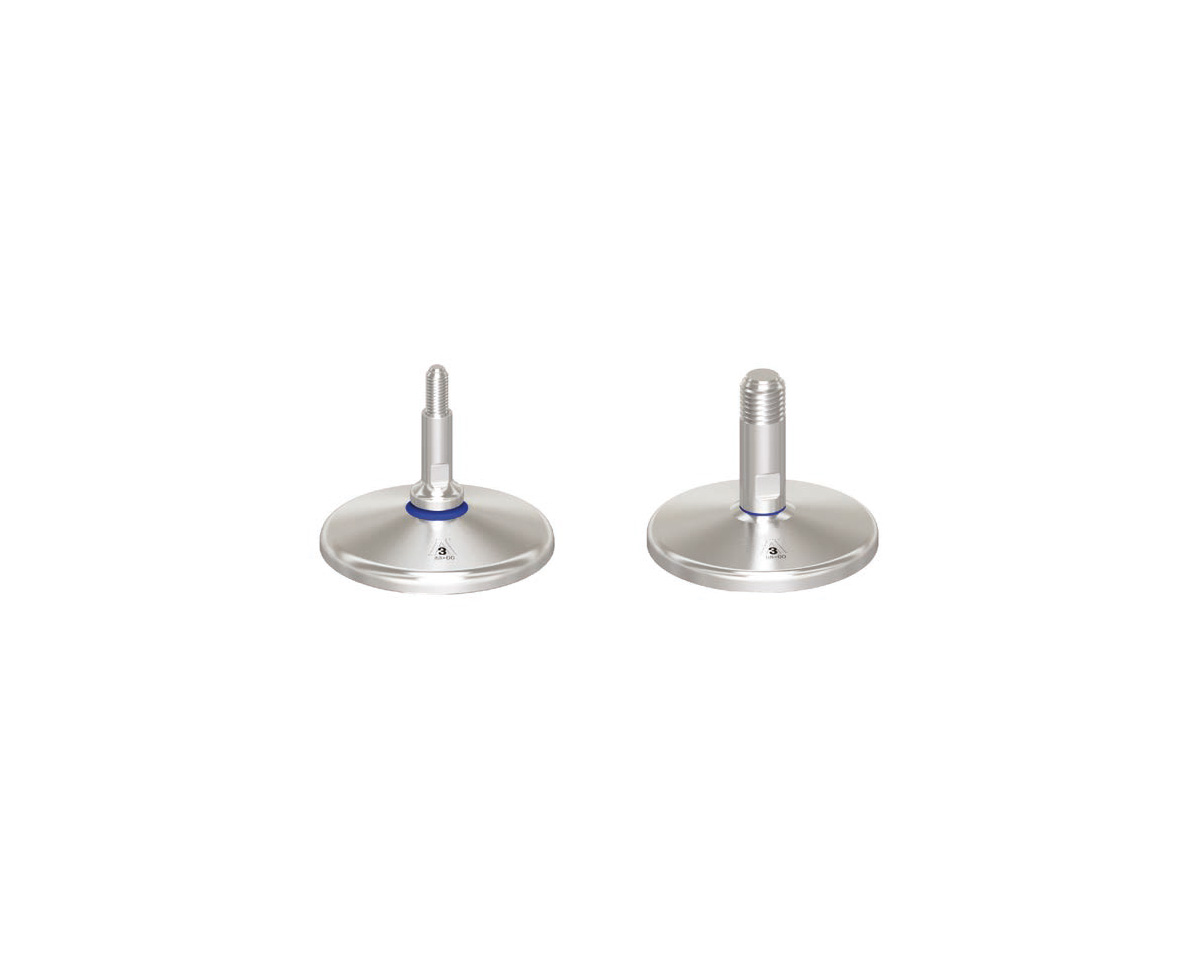

Element 2 of 3 (image) – Loading cell for machine base 3A, connection thread M12, load 1000 kg, with footplate Ø120

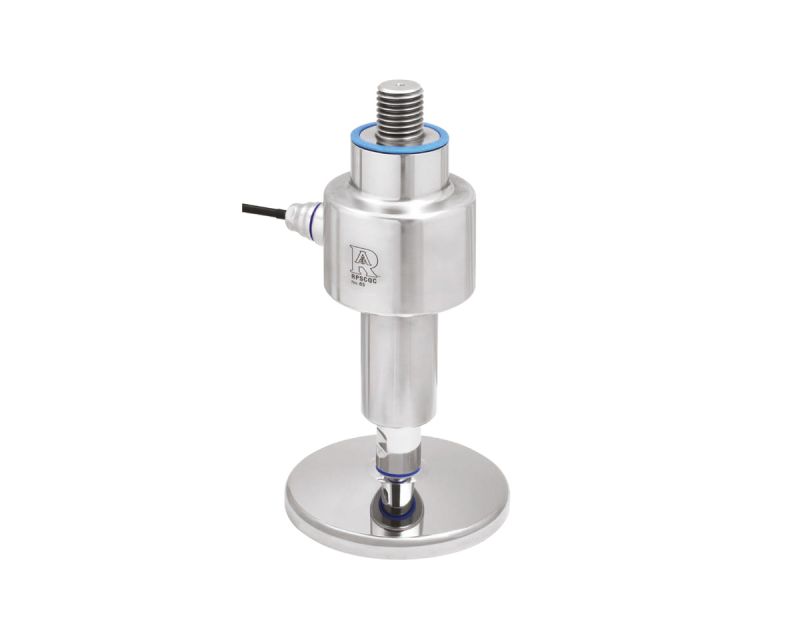

Element 3 of 3 (image) – Loading cell for machine base 3A, connection thread M12, load 1000 kg, with footplate Ø120

High precision loading cell designed for machine bases, ensuring optimal performance and reliability under heavy loads up to 1000 kg
Certified product, guaranteeing compliance with industry standards for safety and functionality
Compact installation length of 152 mm, facilitating easy integration into various machine designs
Robust housing with a diameter of Ø 78 mm, ensuring durability and resistance to environmental factors
Includes a footplate with a diameter of Ø 120 mm, providing enhanced stability and ease of installation

Quantity	Price
From 1	€635.53*
From 13	€621.72*
From 41	€612.50*

Currently sold out, Refill time: 15 days

€635.53* / piece

Our payment methods:

Accessories

Hygienic terminal box made of AISI 304 stainless steel for load cells, dimensions 143.4 x 92 mm

Type No.: 458CDG4EQ3A

€291.60*

Product properties

Product description

Loading cell for machine base 3A certified, installation length 152 mm, connection thread M12, housing diameter Ø 78 mm, max load 1000 kg, with footplate Ø120

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
